SOTAX Pharmatron DisiTest 20 Disintegration Tester | 2-Station with Heater

MEASURING & ANALYSIS: Physical Properties Testing

SOTAX Pharmatron DisiTest 20 Disintegration Tester | 2-Station with Heater

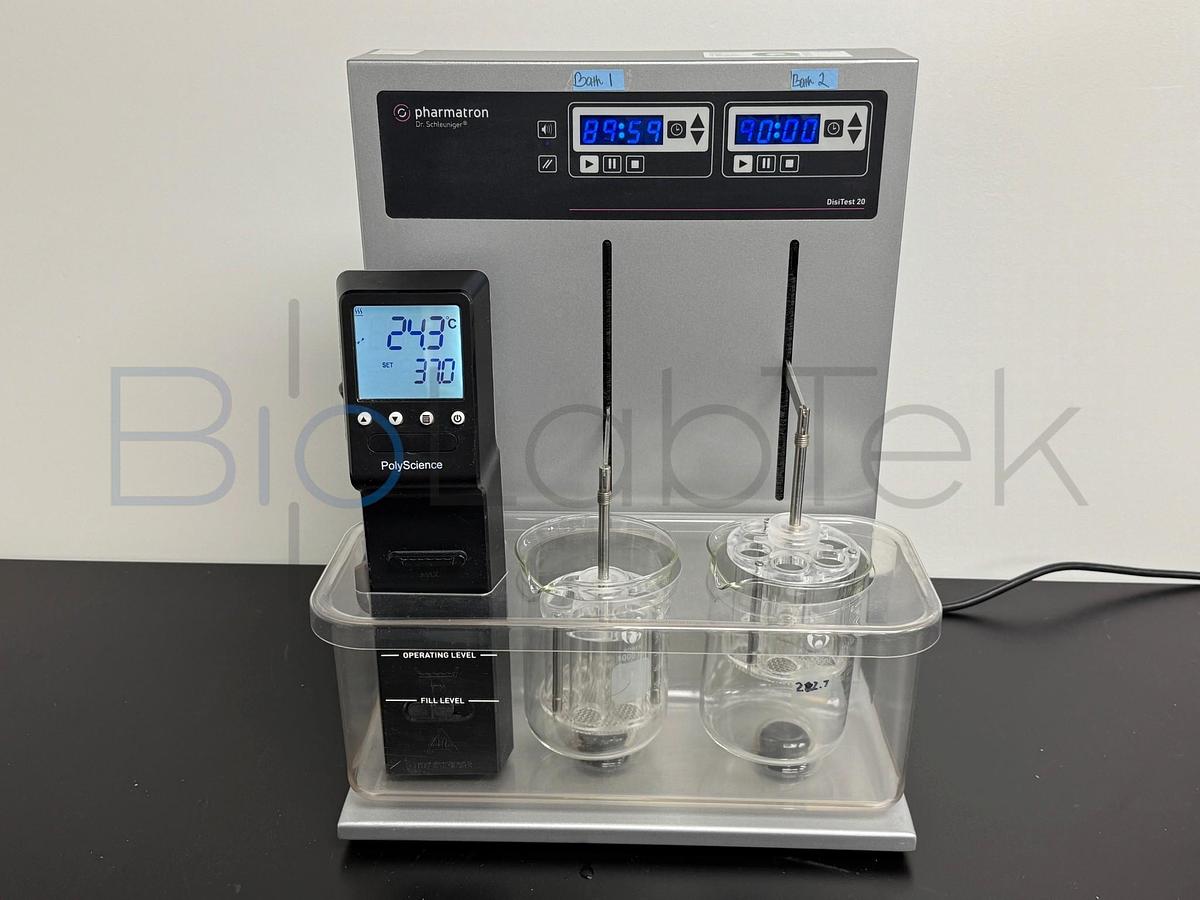

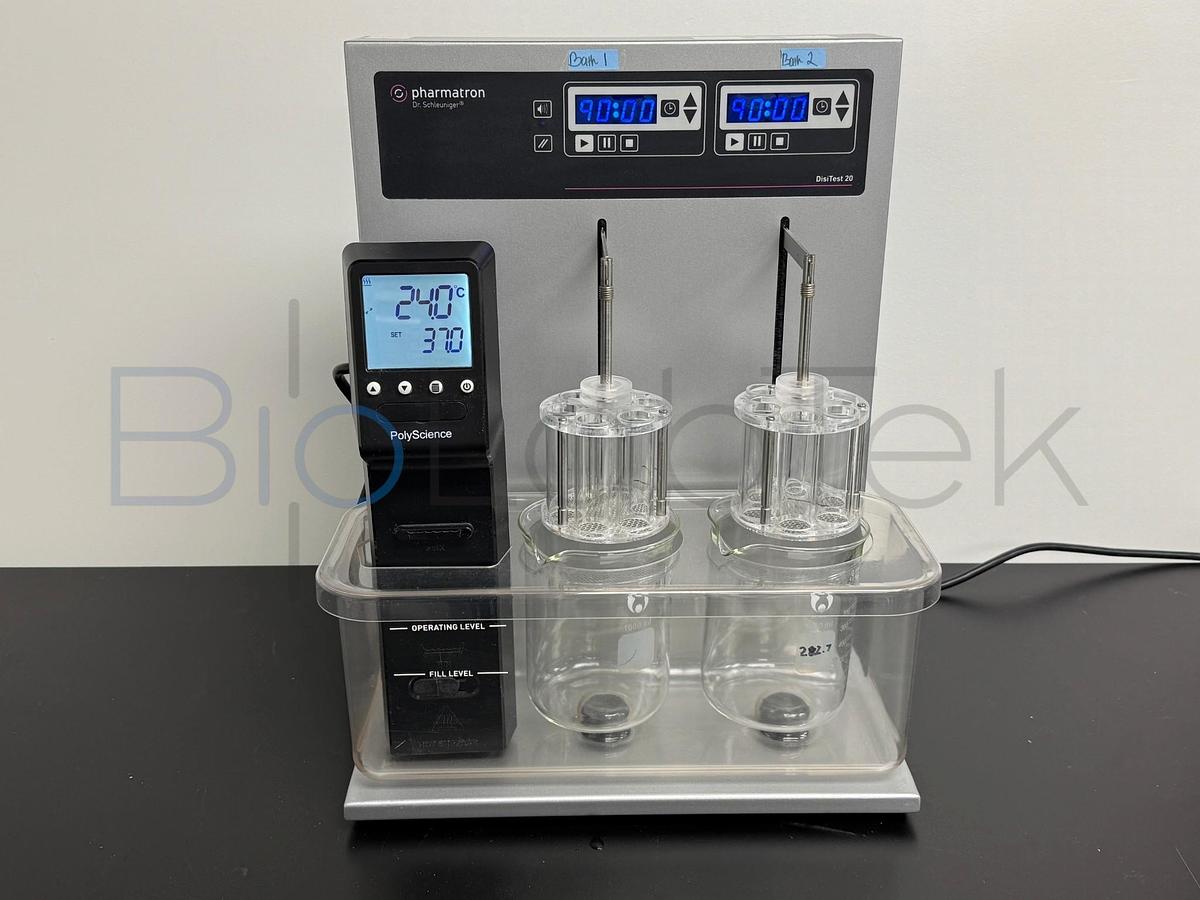

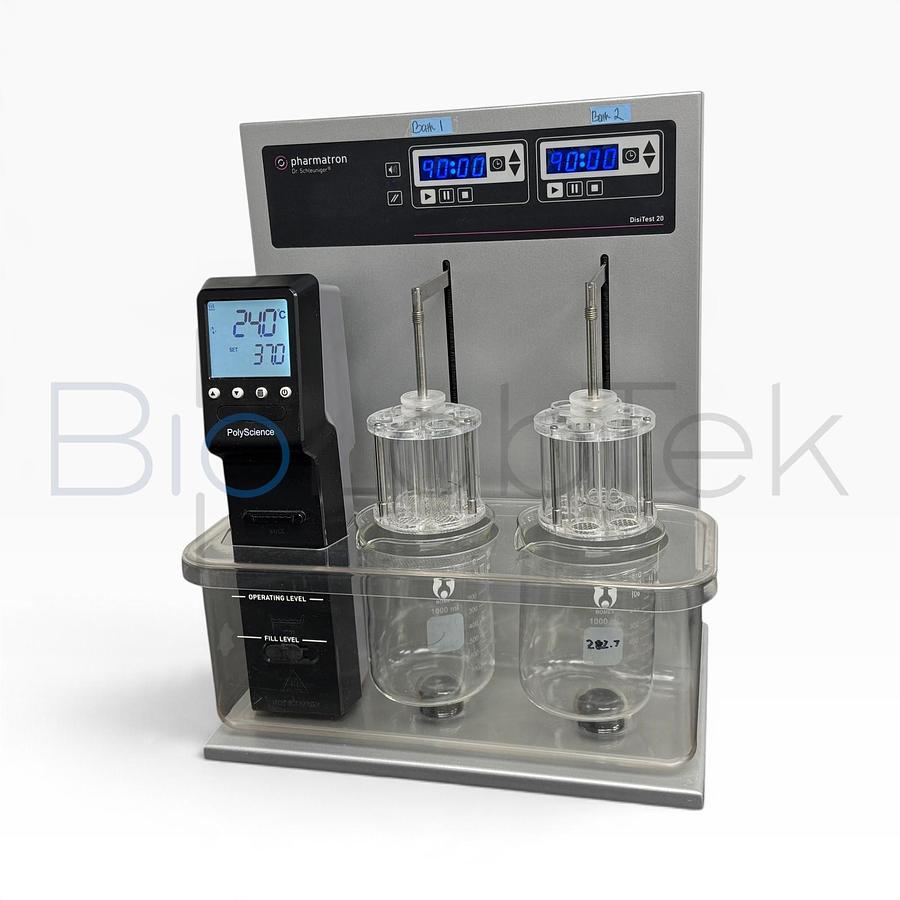

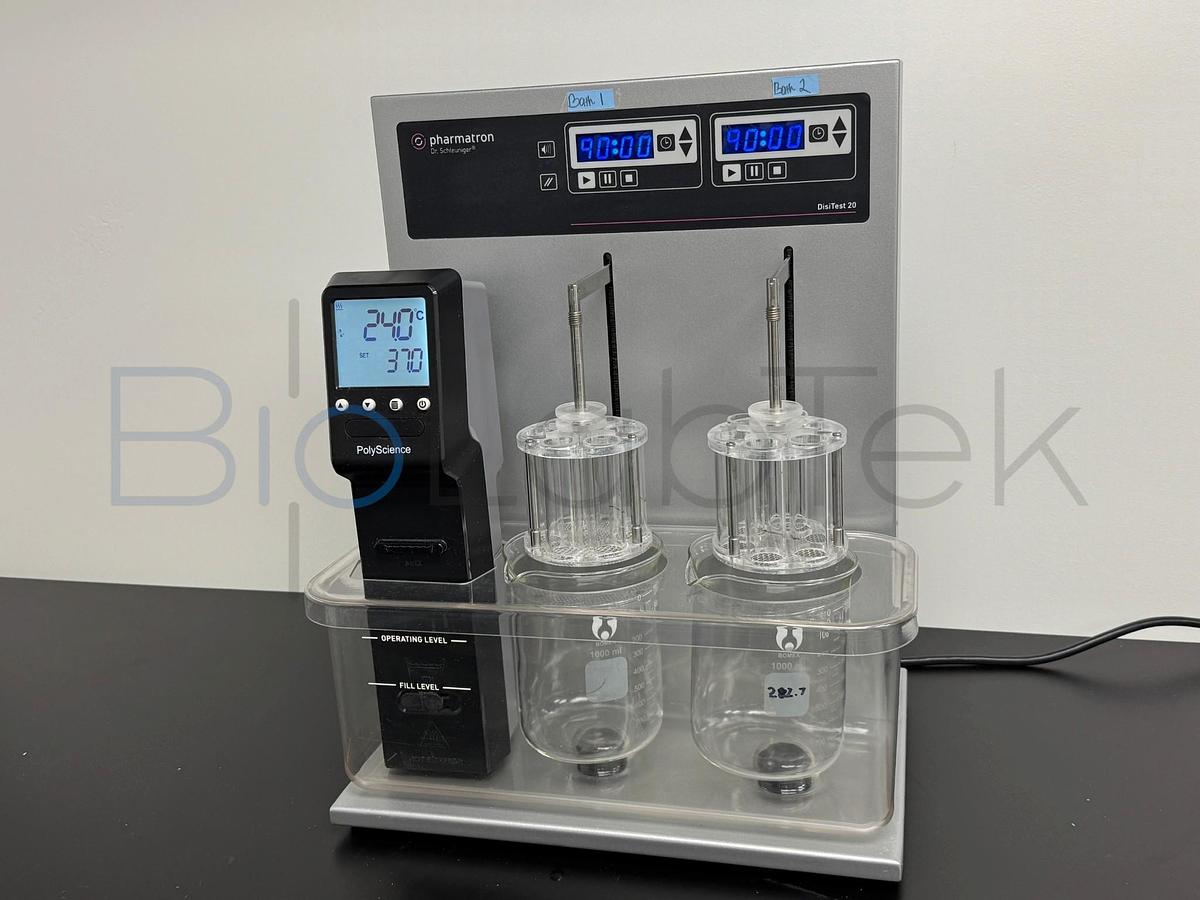

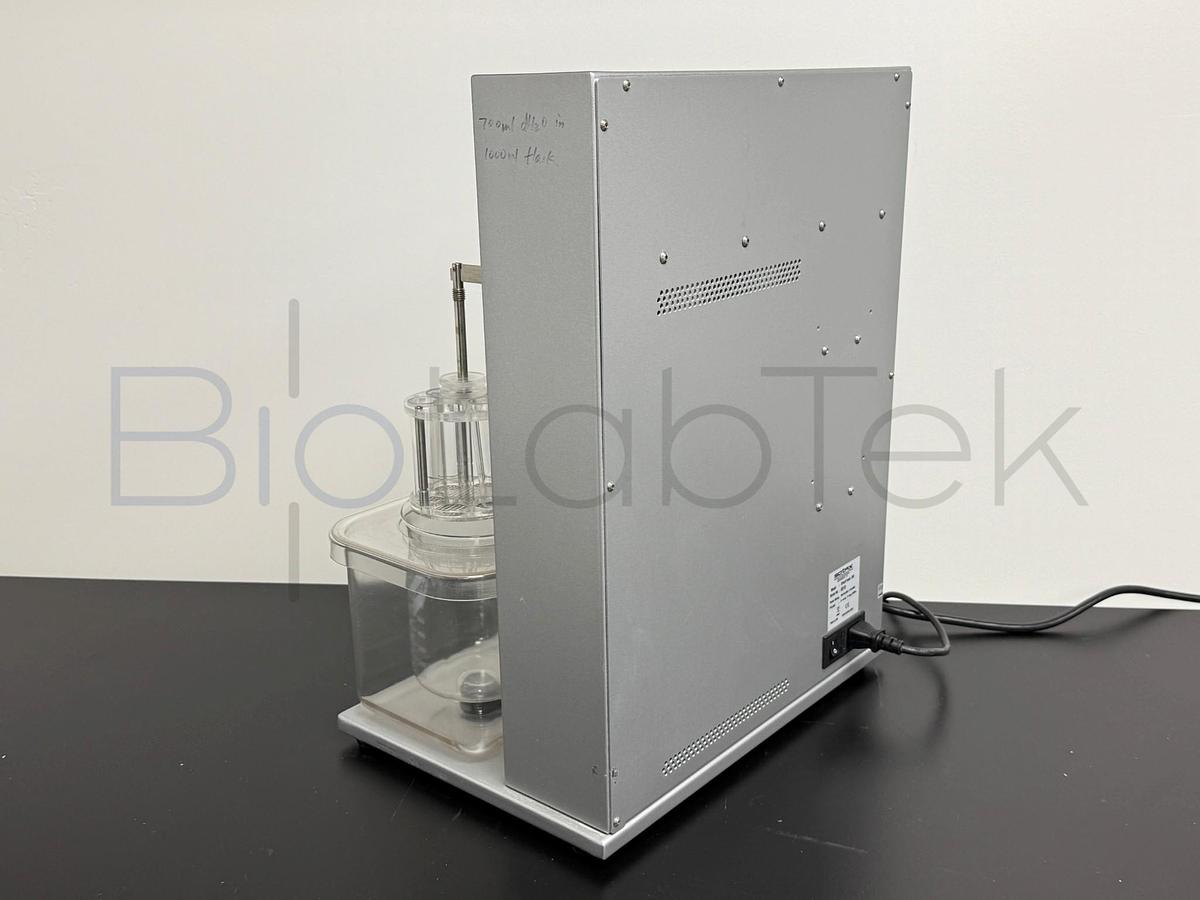

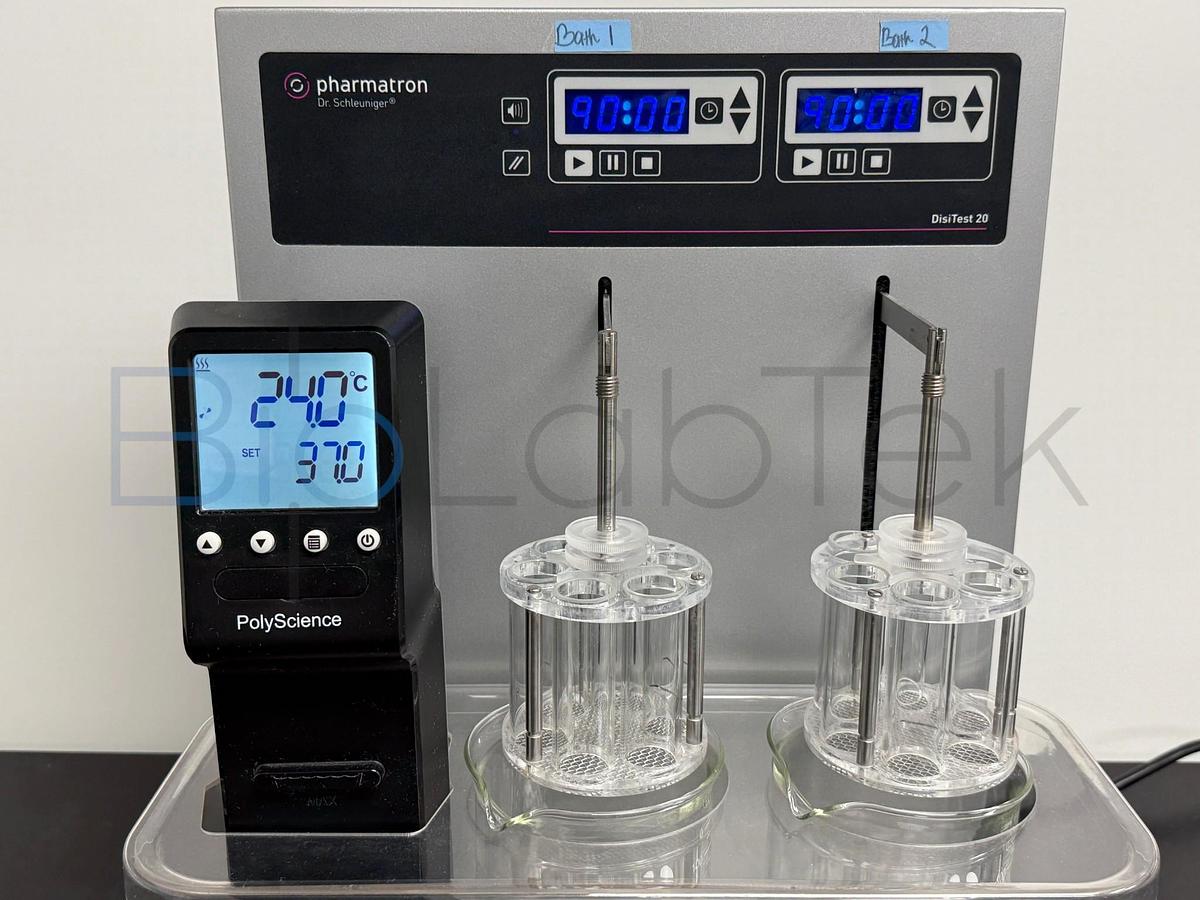

Used SOTAX Pharmatron DisiTest 20 two-station tablet disintegration tester with PolyScience immersion heater, water bath, two 1000 mL beakers and two basket racks, powering on with both timers and the heater running.

Used Tested

At a glance

Manufacturer | Dr. Schleuniger Pharmatron / SOTAX

Model | DisiTest 20

Serial # | 0212

Condition | Lightly Used, Excellent

What's Included

SOTAX Pharmatron DisiTest 20 drive unit

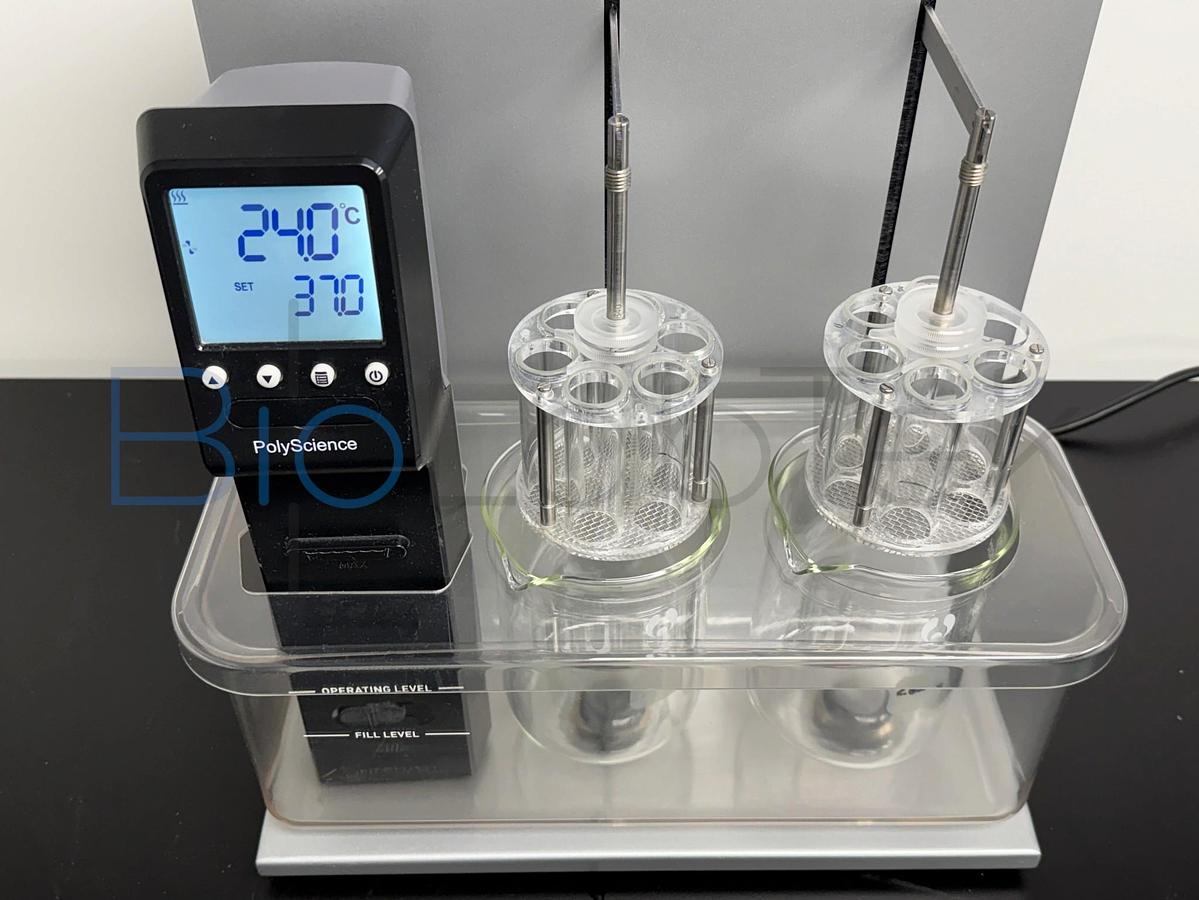

PolyScience immersion heater

Clear water bath

1000 mL glass beakers (2)

6-tube basket rack assemblies (2)

Power cord

Nothing else is included unless shown in the photos

Condition Details

Unit powers on with both station timers working and the immersion heater reading bath temperature against a 37.0 °C set point; temperature verification is the responsibility of the buyer.

Specifications

Testing stations 2, independent

Stroke frequency 30 strokes/min ±1

Stroke height 55 mm (2.17 in) ±2 mm

Temperature range Programmable; recommended working range 25 to 40 °C

Temperature stability ±0.07 °C

Displays 3.25 in LCD on immersion heater; 2 LED displays on drive unit

Water bath volume 8 L

Immersion heater power 1.1 kW

Heater safety DIN 12876-1 Class 1; failsafe over-temperature control; low liquid level protection

Dimensions (W x H x D) 381 x 381 x 279 mm (15 x 15 x 11 in)

Weight Approx. 19 kg (41.3 lb) without packaging

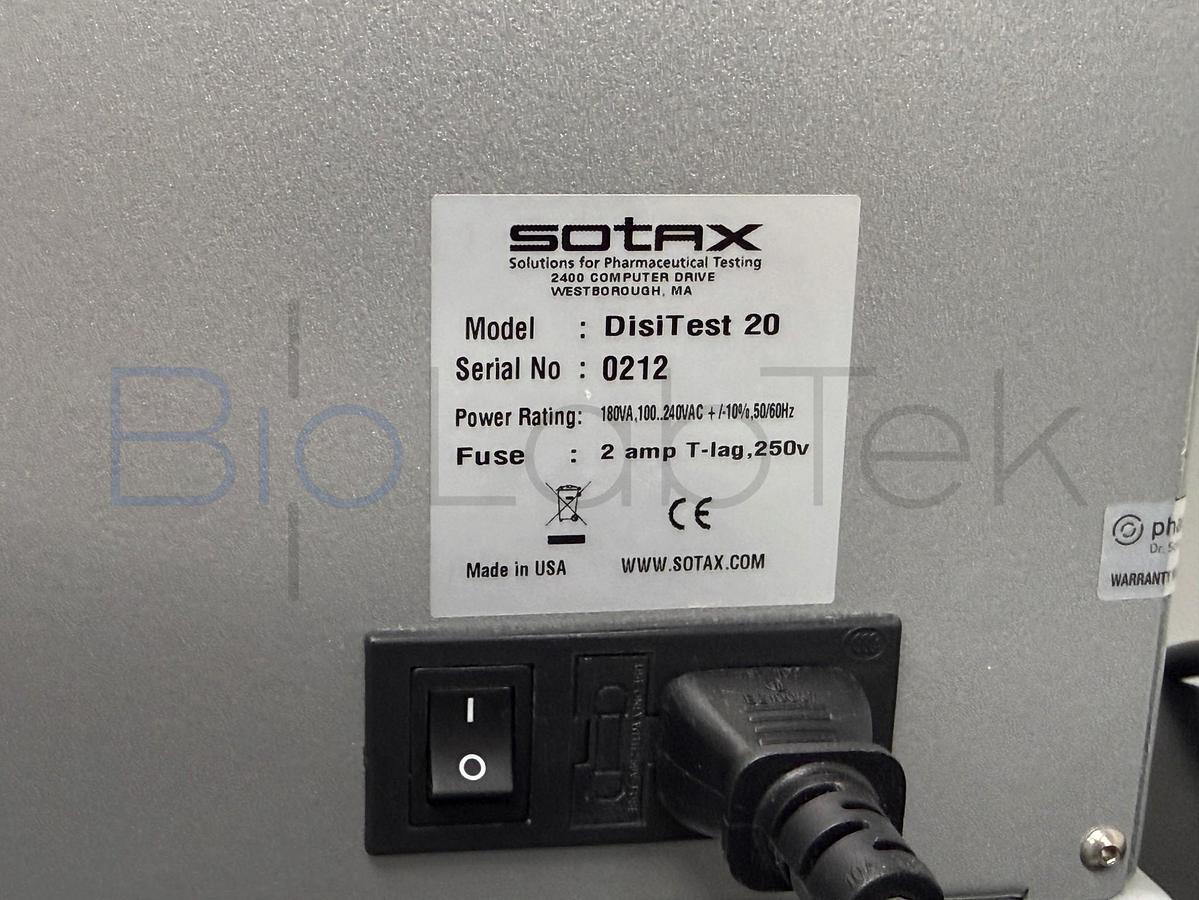

Fuse 2 A T-lag, 250 V

Power 180 VA, 100-240 VAC +/-10%, 50/60 Hz (drive unit). Verify voltage before purchase.

Specs from manufacturer literature for reference. Verify against your application.
