Bio-Rad Trans-Blot Turbo Transfer System | Semi-Dry Western Blot

SEPARATION: Electrophoresis

Year 2022 Bio-Rad Trans-Blot Turbo Transfer System | Semi-Dry Western Blot

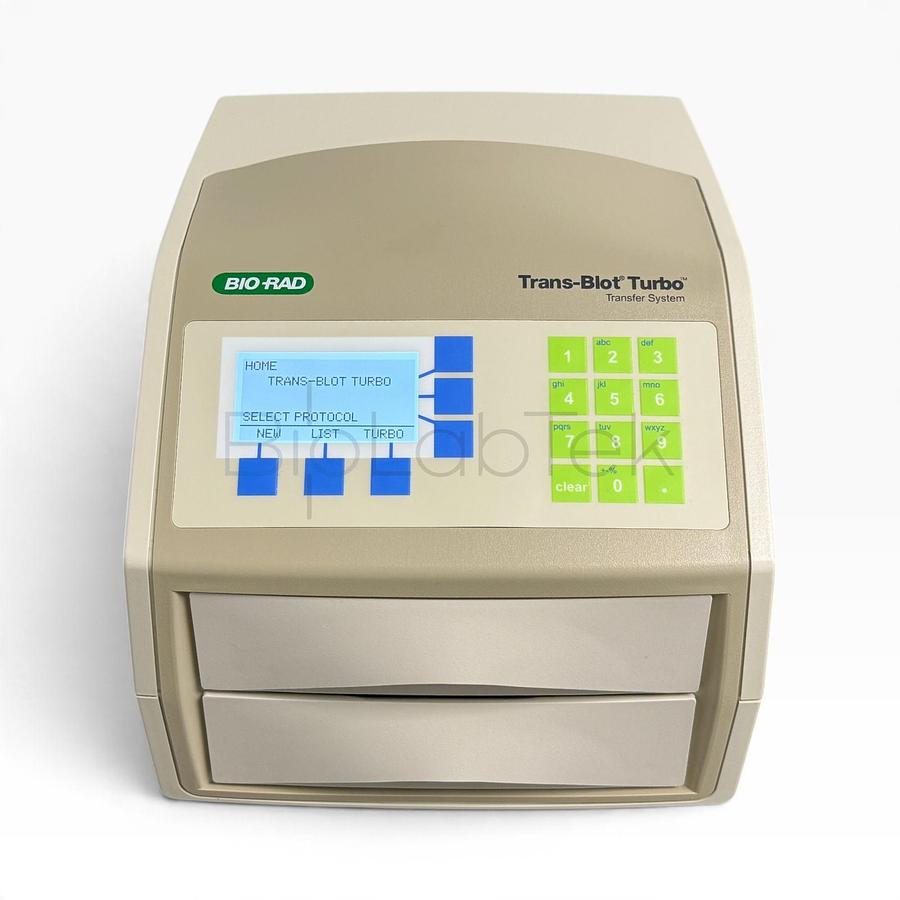

Used Bio-Rad Trans-Blot Turbo semi-dry transfer system with both transfer cassettes, running mini or midi gels in as little as 3 minutes, tested through protocol setup.

Used Tested

At a glance

Manufacturer | Bio-Rad

Model | Trans-Blot Turbo Transfer System

Part / Catalog # | 1704150

Serial # | 690BR036396

Year / DOM | June 2022

Condition | Lightly Used, Excellent

What's Included

Bio-Rad Trans-Blot Turbo transfer system base

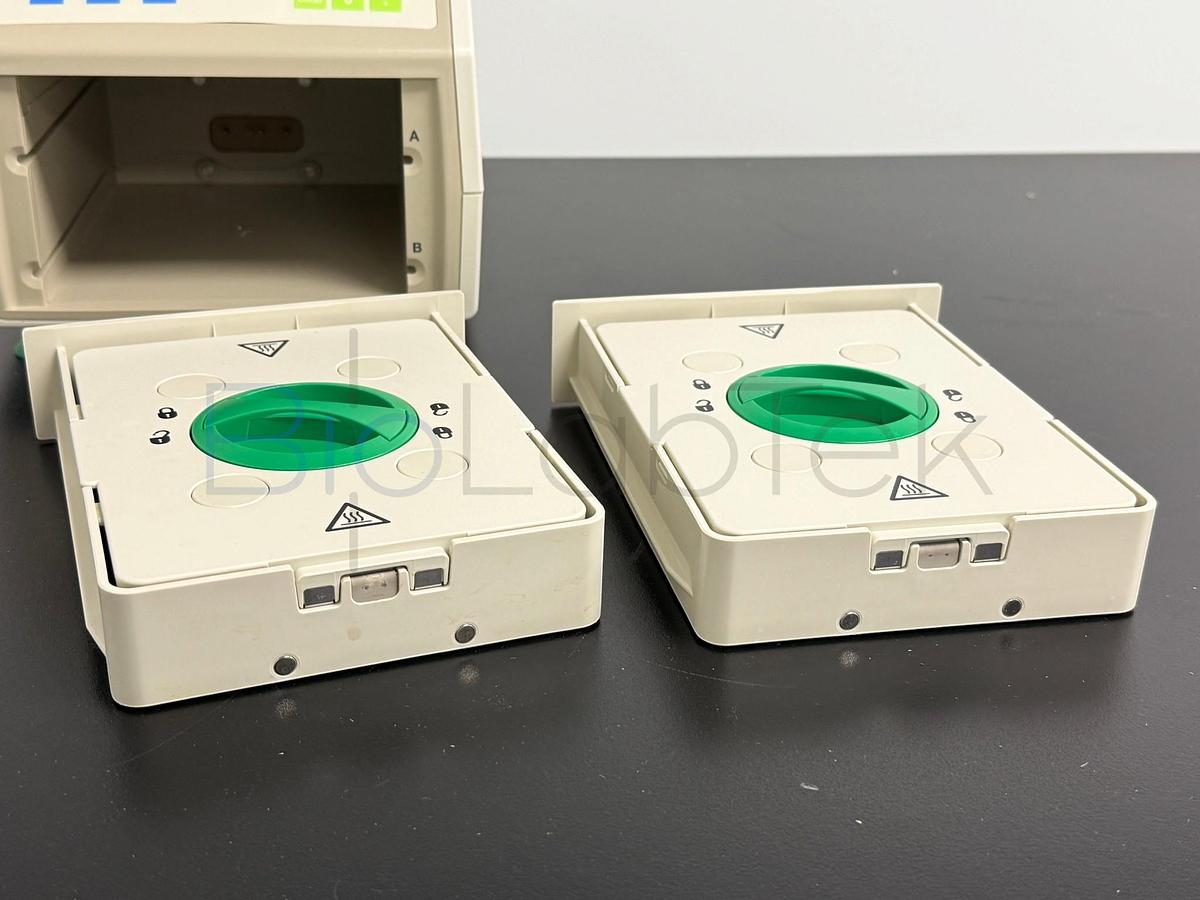

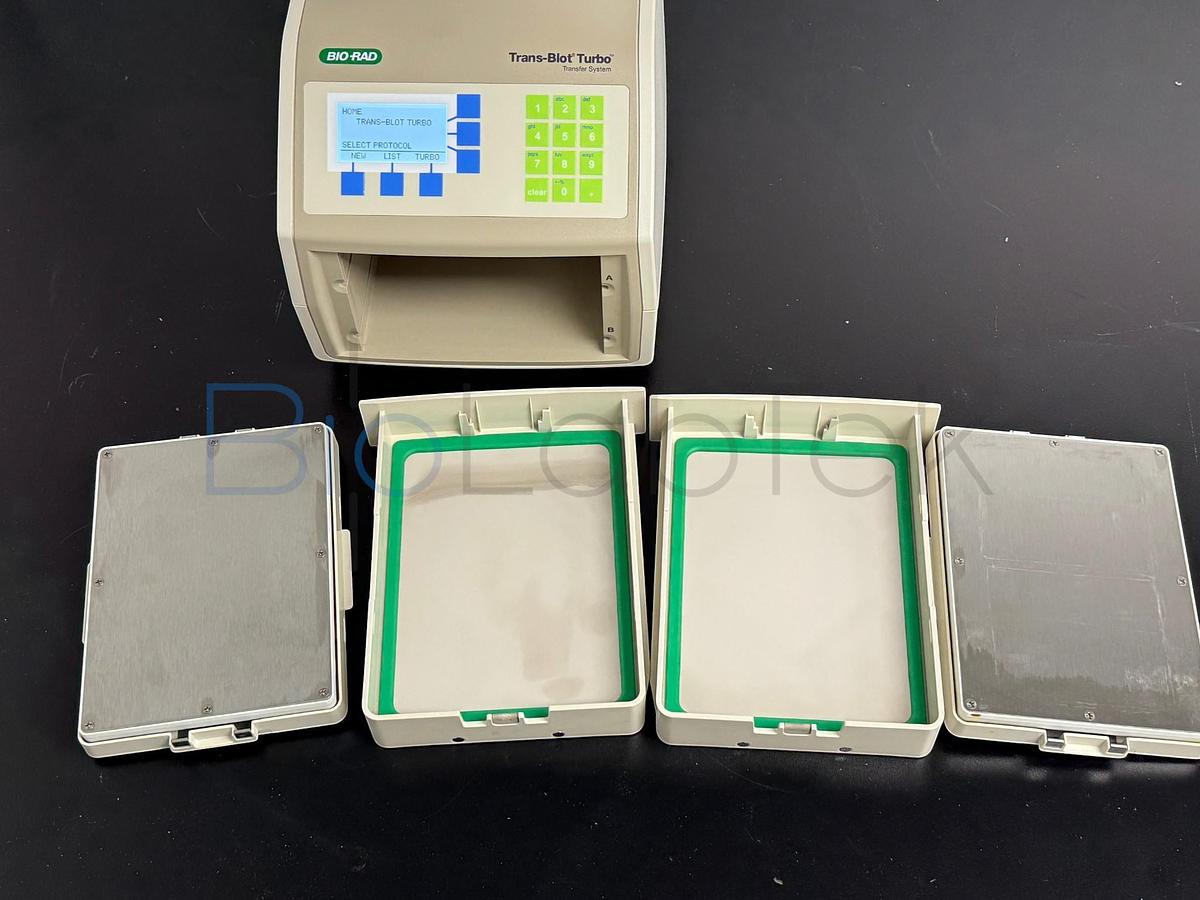

Trans-Blot Turbo transfer cassettes (2)

Power cord

Nothing else is included unless shown in the photos

Condition Details

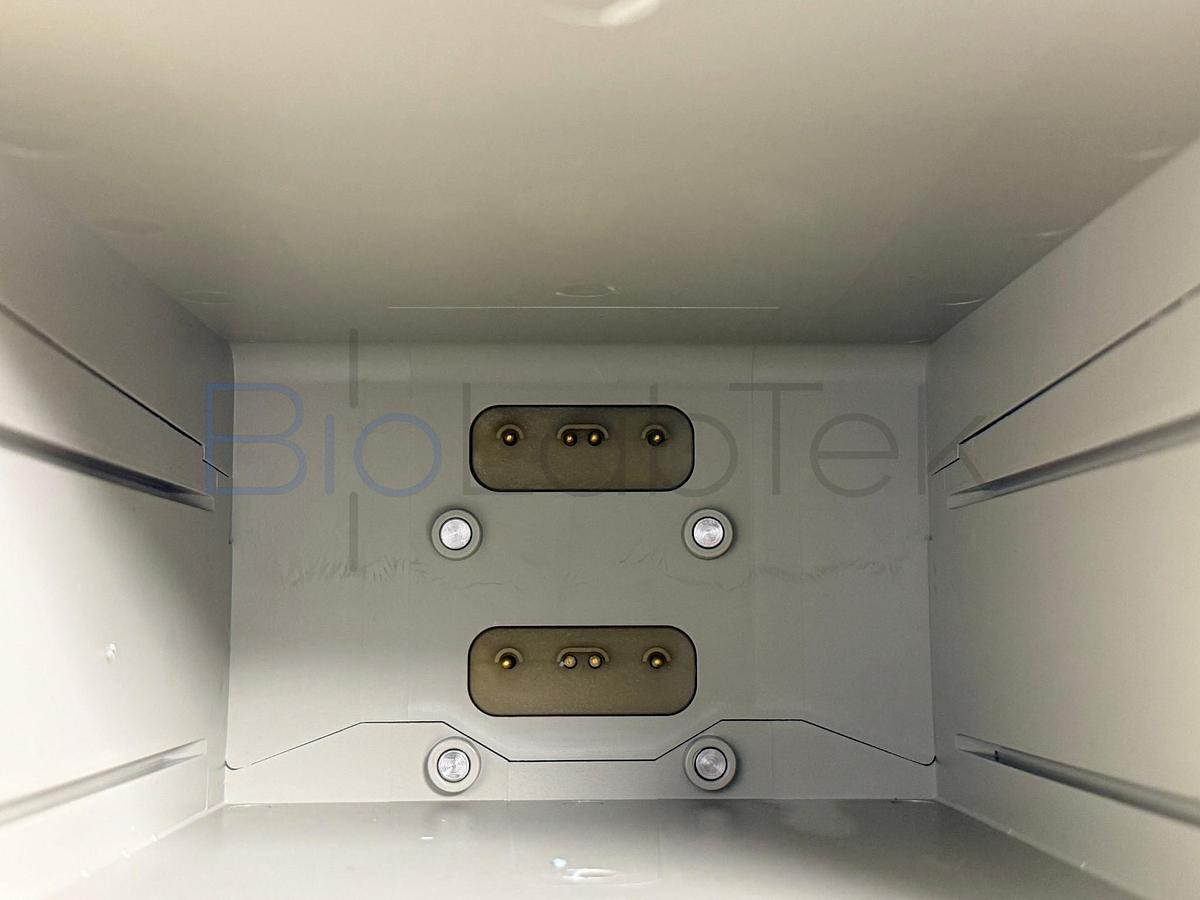

Unit powers on to the protocol menu, accepts a two-cassette run setup and all functions tested normally; the exterior, cassettes and bay contacts are clean.

Specifications

Transfer type Semi-dry electrophoretic transfer

Cassette bays 2 (A and B), run together or independently

Gel capacity Each cassette holds 1 or 2 mini gels or 1 midi gel

Gel sizes Mini 7.0 x 8.5 cm, midi 8.5 x 13.5 cm

Output Up to 25 V and 2.5 A per cassette in user protocols

Preset protocols Standard SD 30 min, 1.5 mm gel 10 min, High MW 10 min, Low MW 5 min, Mixed MW 7 min, 1 Mini TGX 3 min

Transfer time As little as 3 min

Method storage Up to 25 user methods

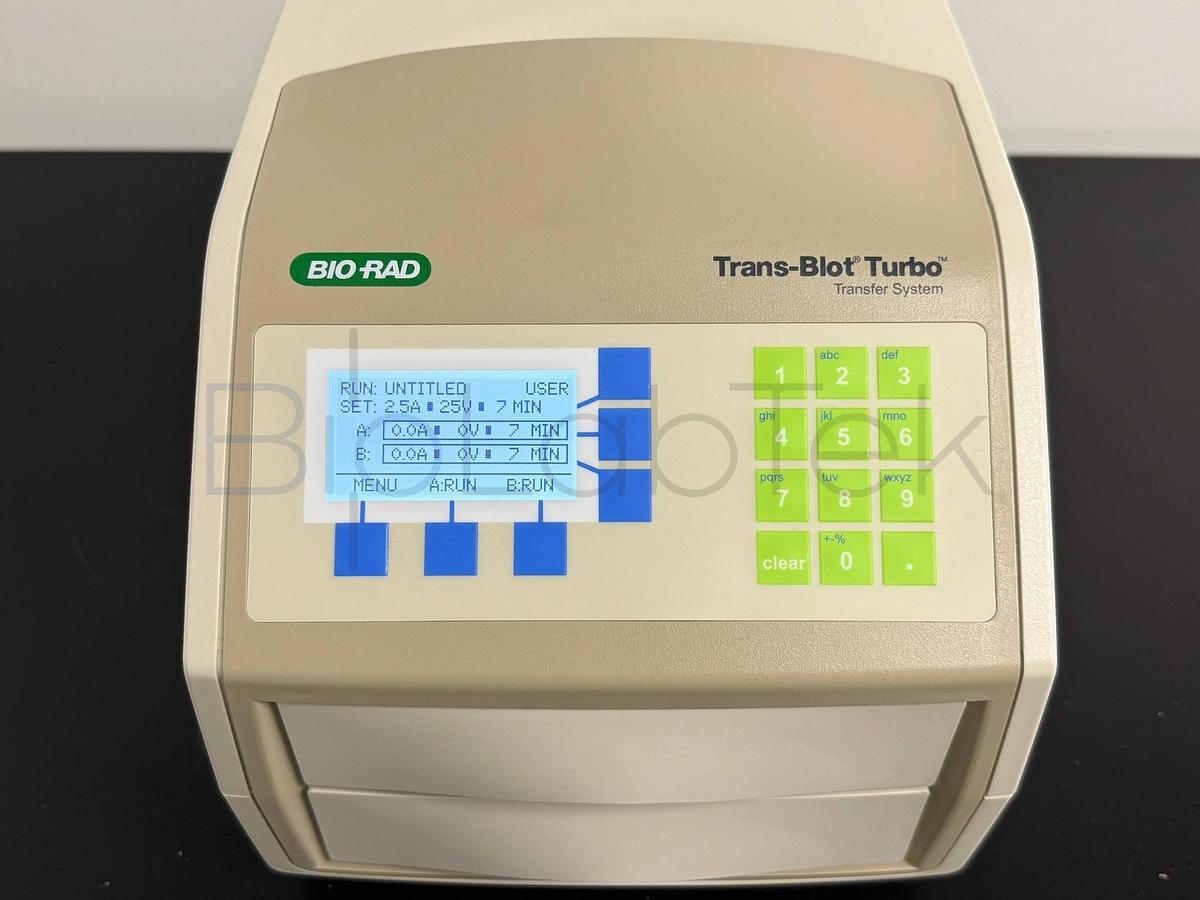

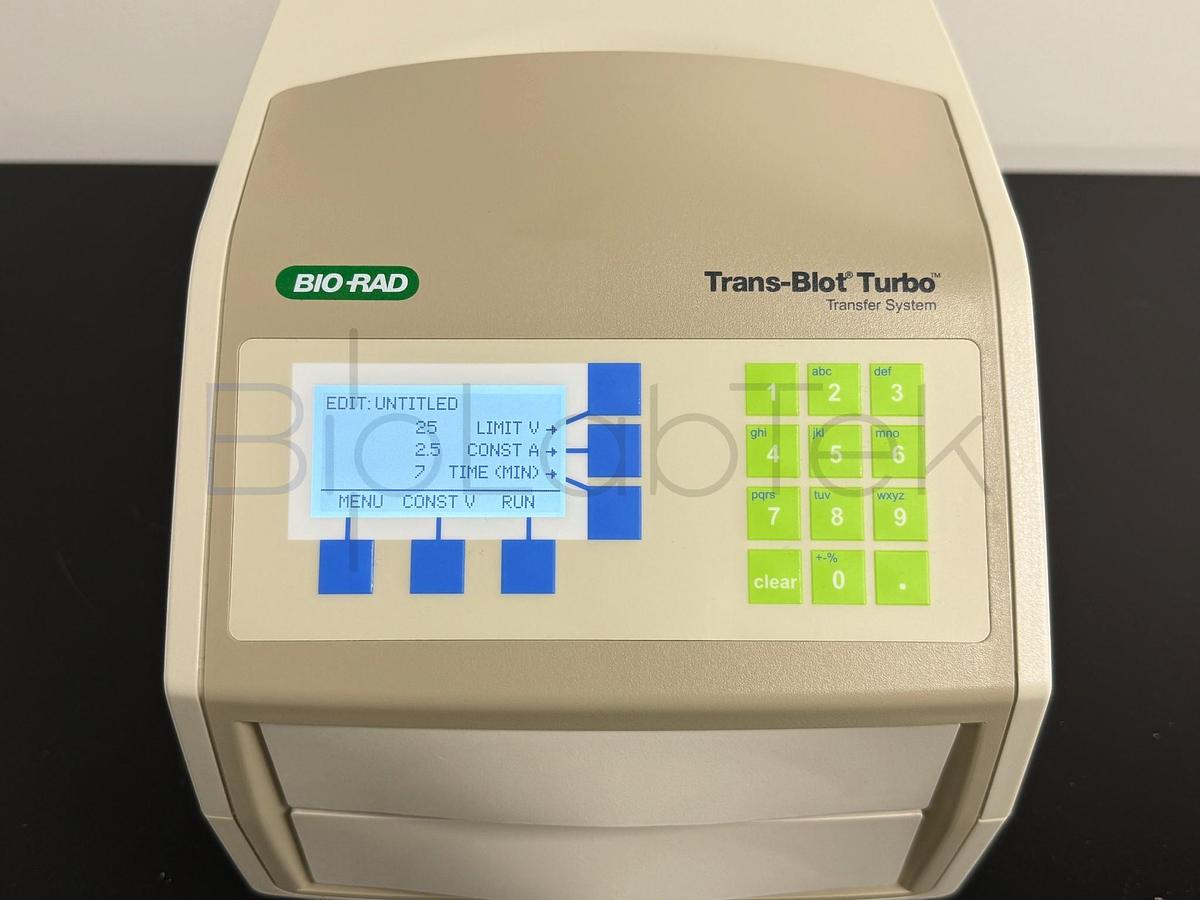

Display 128 x 64 pixel monochrome LCD with 18-button keypad

Cassette dimensions 20.2 x 16.0 x 4.5 cm

Instrument dimensions 26.0 x 21.1 x 20.4 cm

Weight 8 lb with cassettes, 4.5 lb without

Operating environment 15 to 31 °C, 0 to 95% RH non-condensing

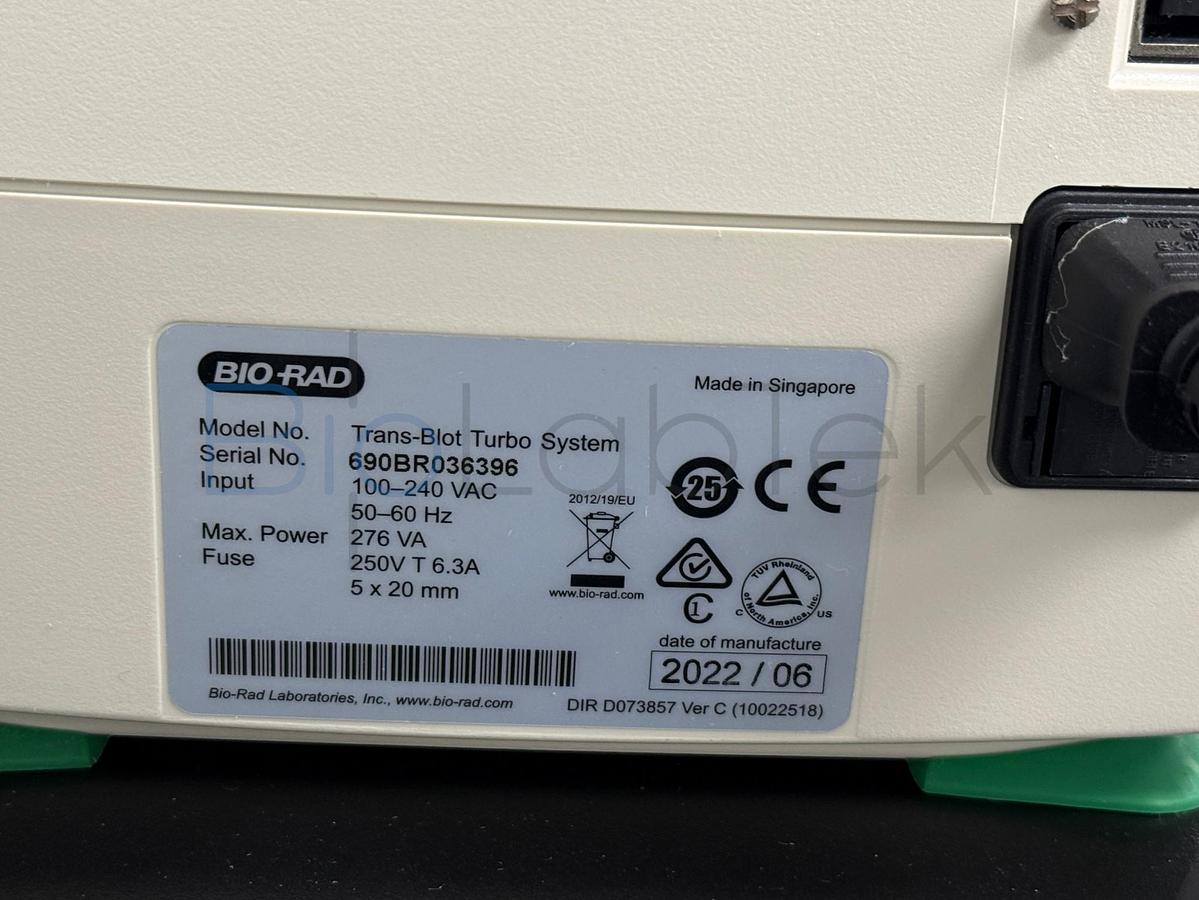

Fuse 250 V T 6.3 A, 5 x 20 mm

Power 100-240 VAC, 50-60 Hz, 276 VA. Verify voltage before purchase.

Specs from manufacturer literature for reference. Verify against your application.
