Bio-Rad CFX384 Touch Real-Time PCR Detection System | 287 Hours software

MOLECULAR BIOLOGY: Real Time PCR Systems

Bio-Rad CFX384 Touch Real-Time PCR Detection System | 287 Hours

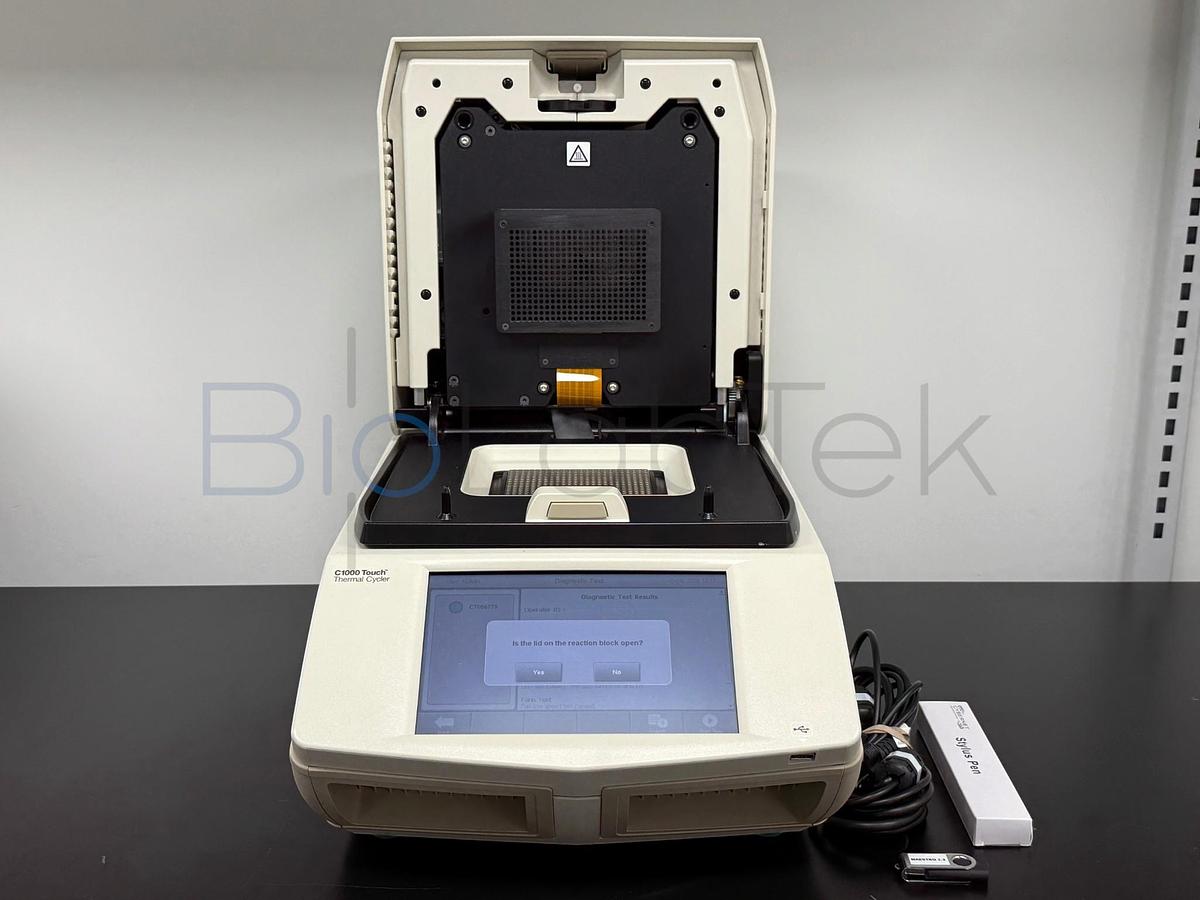

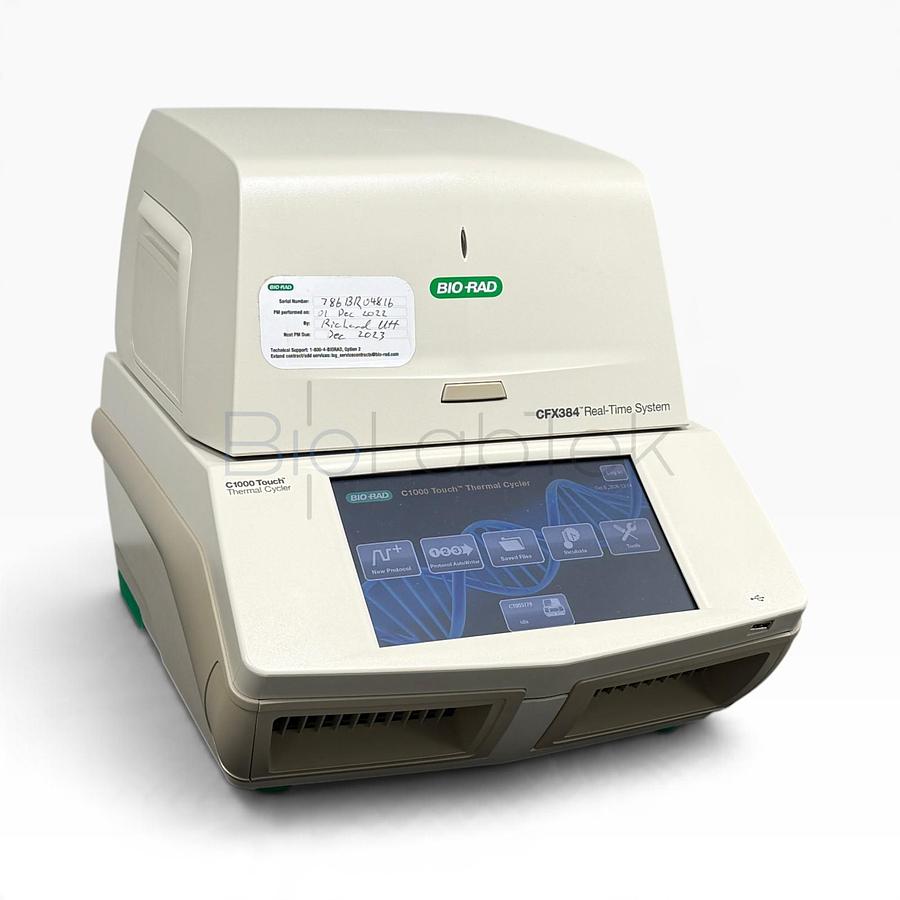

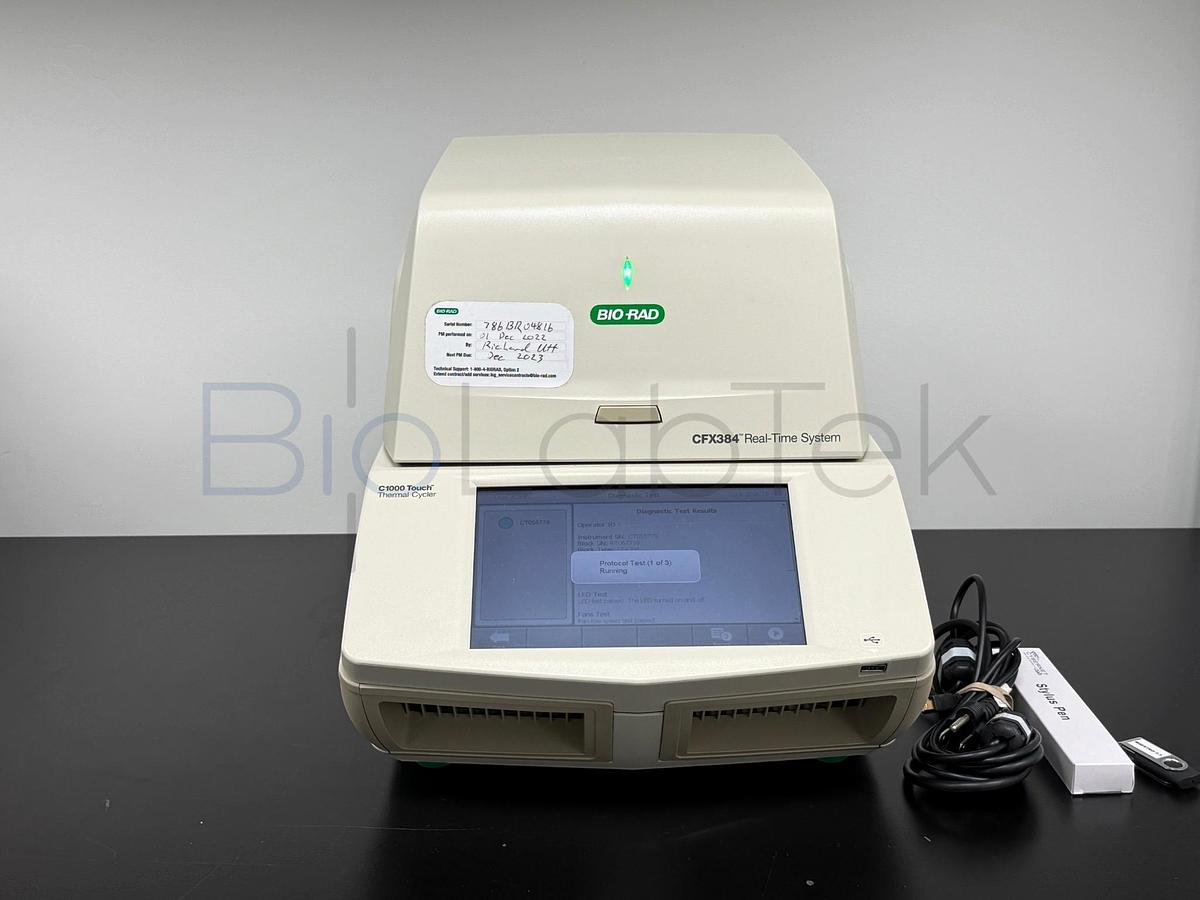

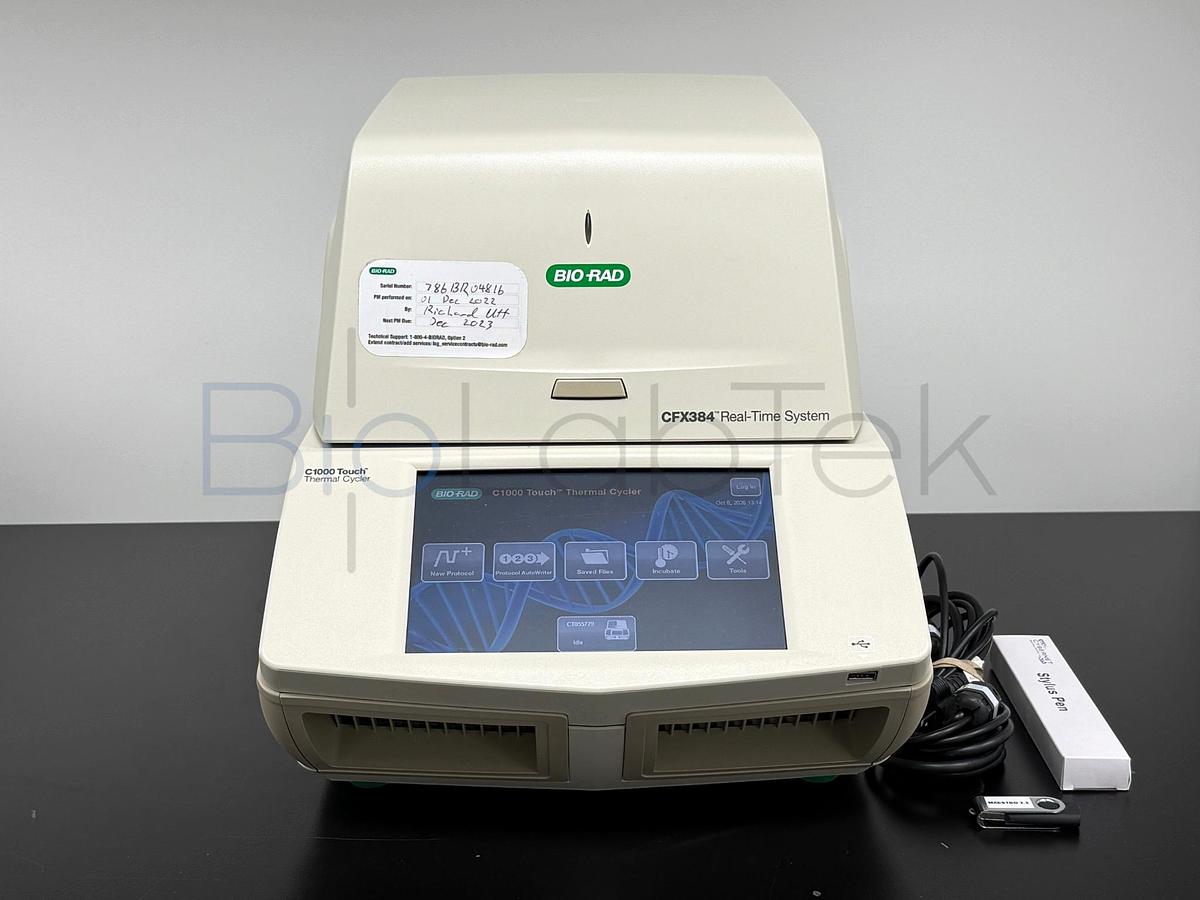

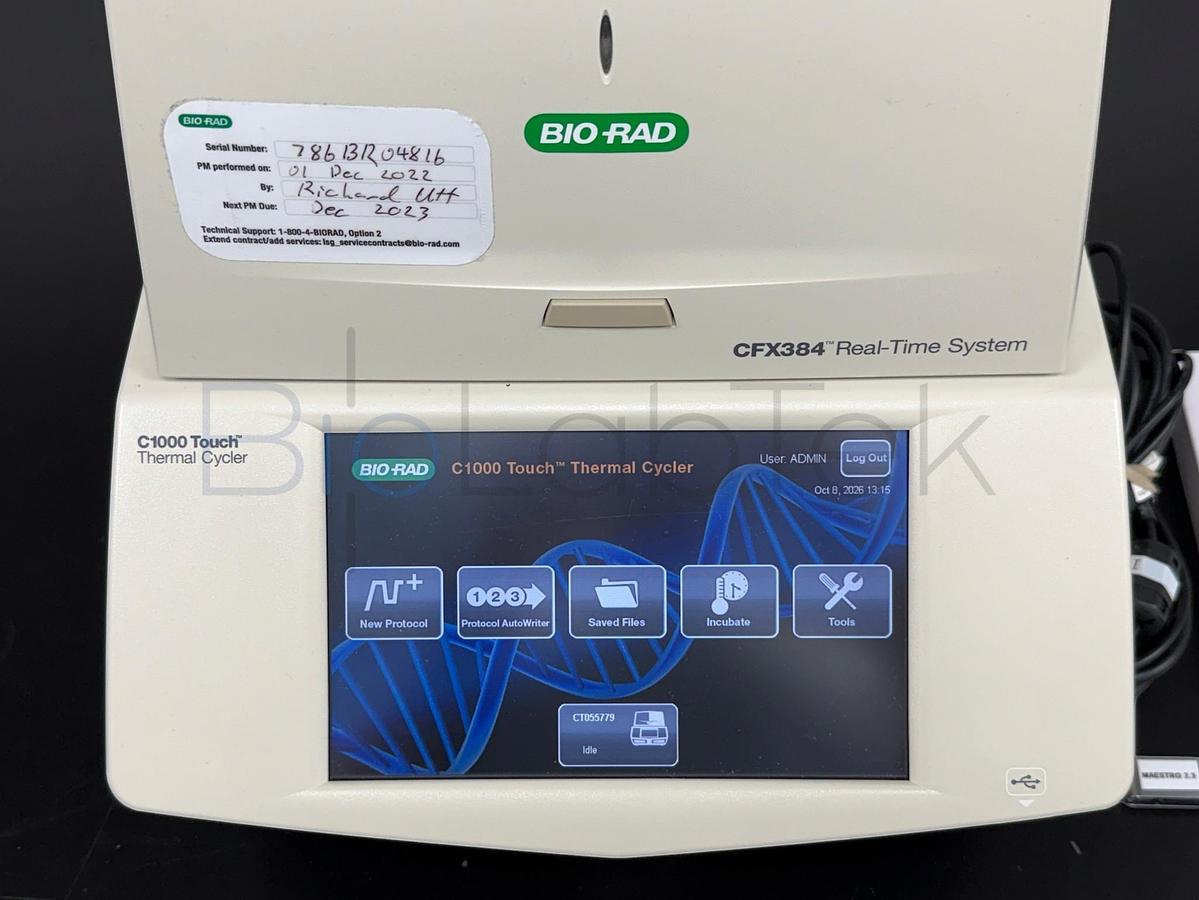

Used Bio-Rad CFX384 Touch real-time PCR system (C1000 Touch base with CFX384 optical module, 5 channels, 384 wells) with 287 run hours, passing initialization and the built-in diagnostic test.

Used Tested

At a glance

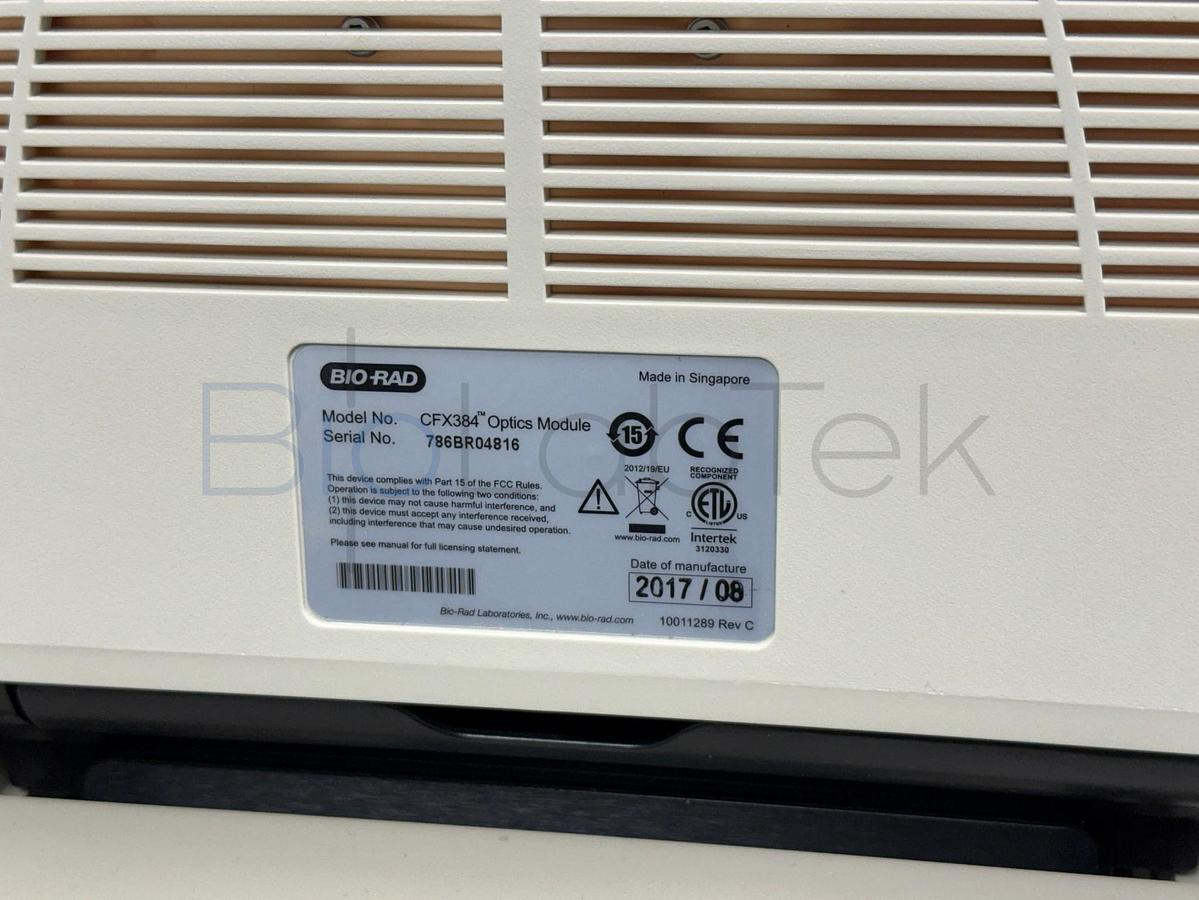

Manufacturer | Bio-Rad

Model | CFX384 Optics Module

Part / Catalog # | 1845384

Serial # | 786BR04816

Year / DOM | June 2017

Condition | Lightly Used, Excellent

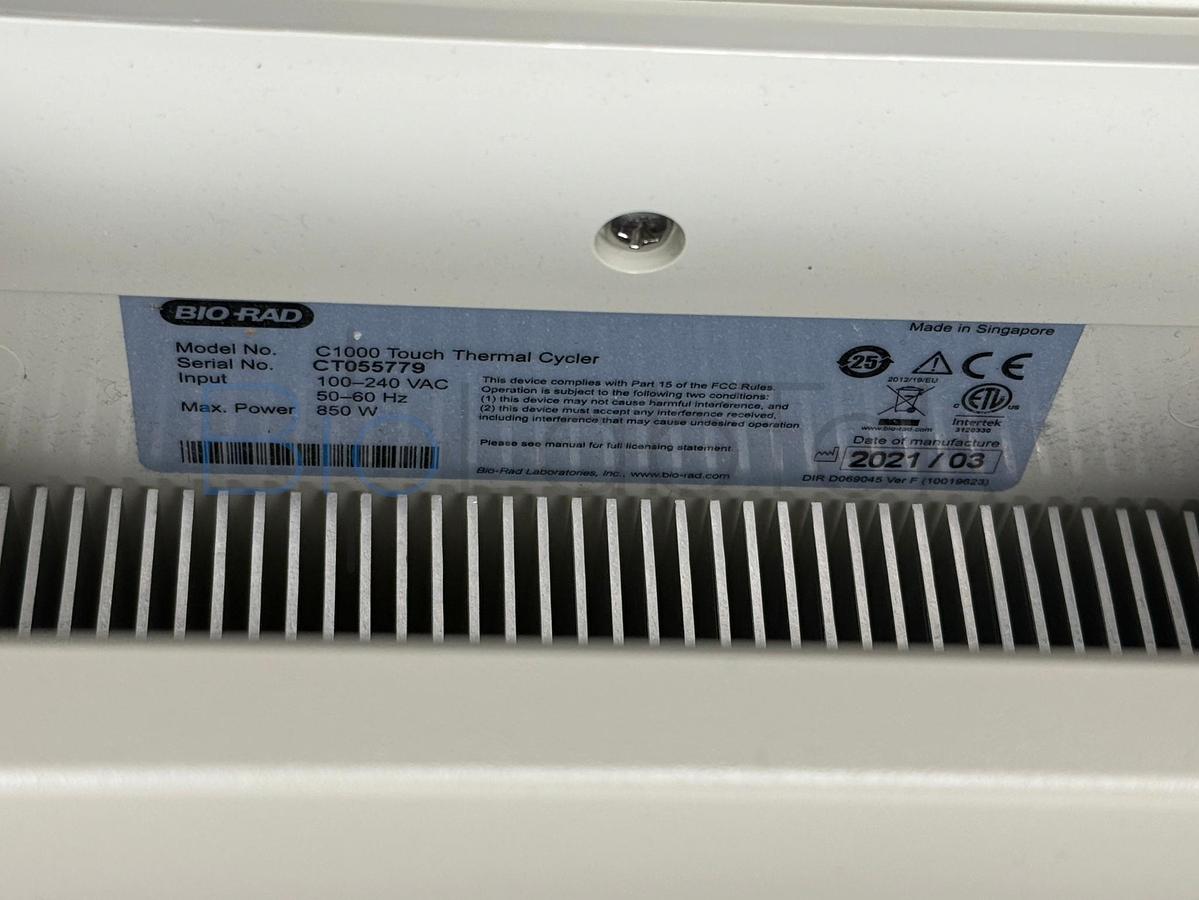

Manufacturer | Bio-Rad

Model | C1000 Touch Thermal Cycler

Part / Catalog # | 1841100

Serial # | CT055779

Year / DOM | March 2021

Condition | Lightly Used, Excellent

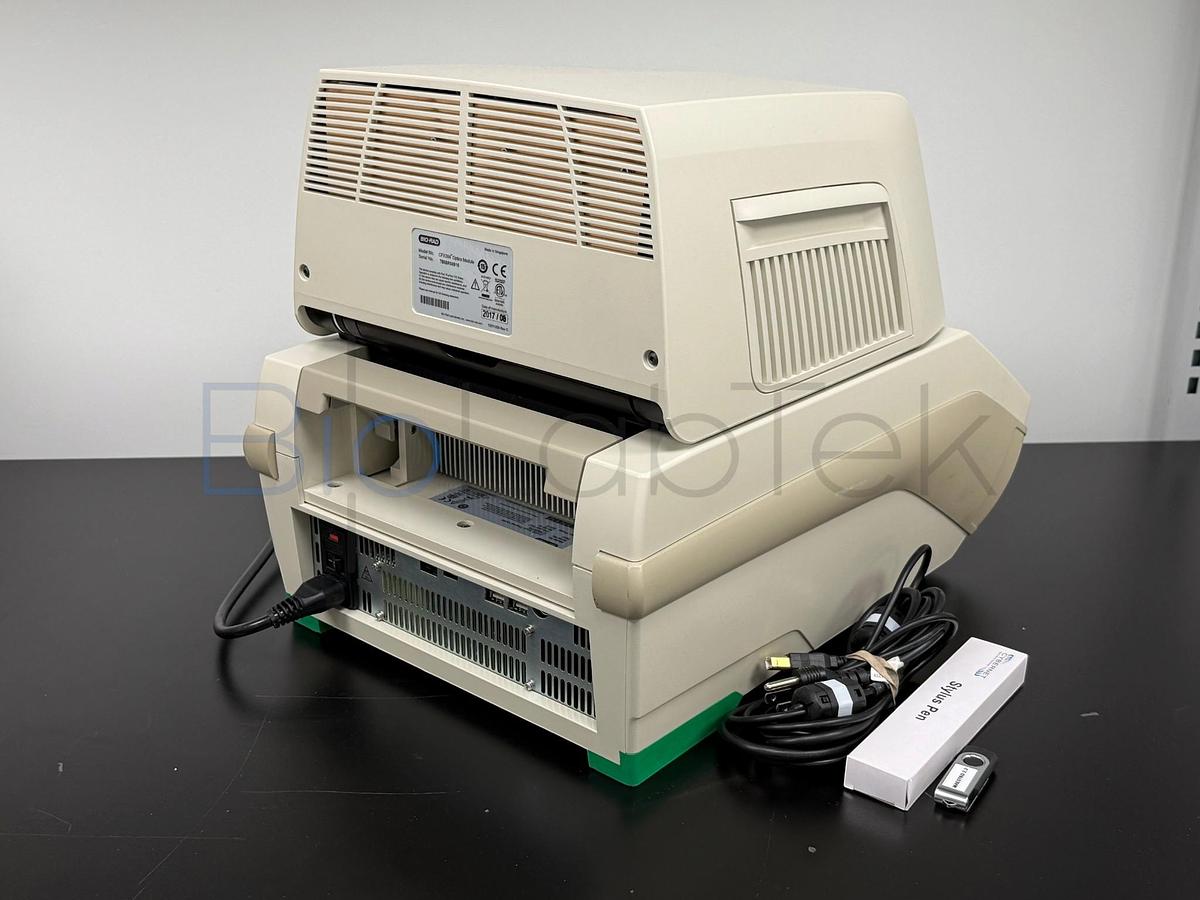

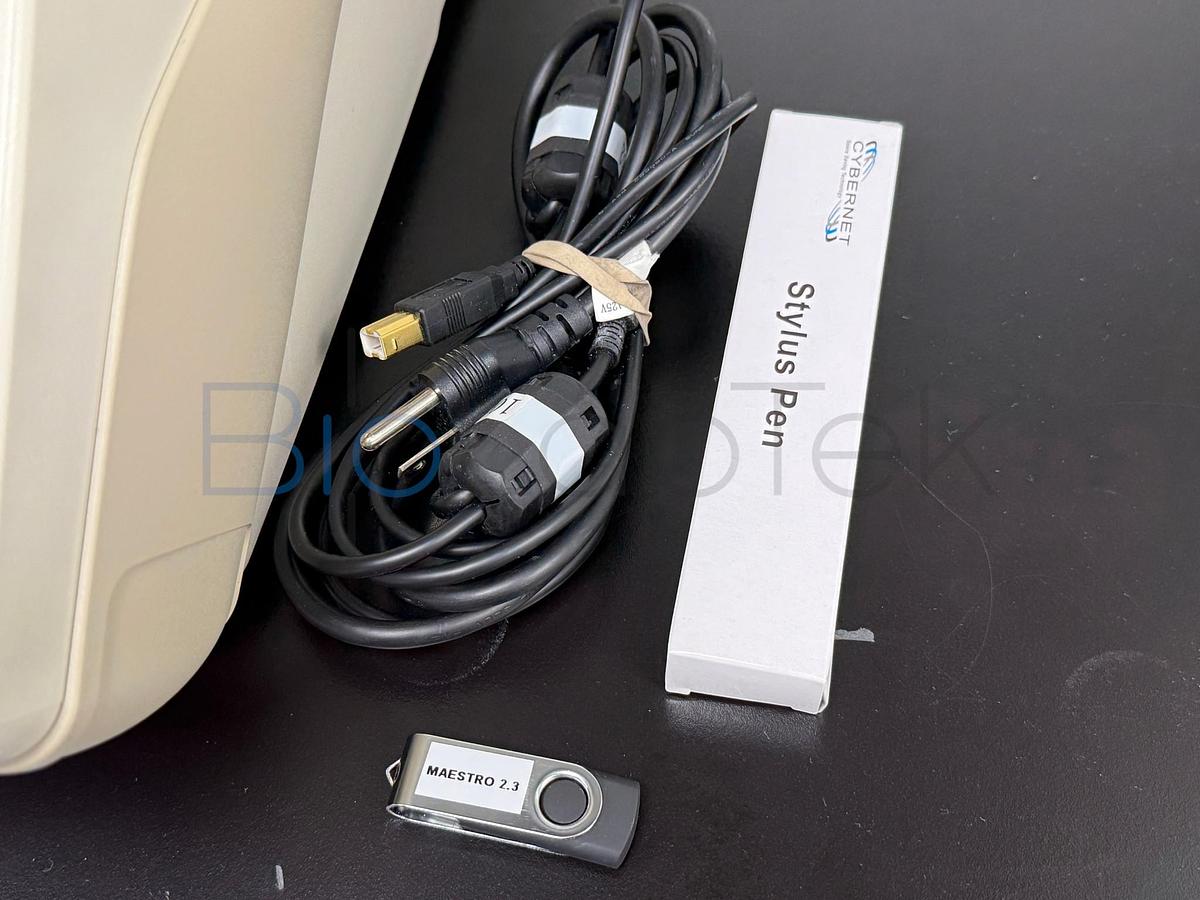

What's Included

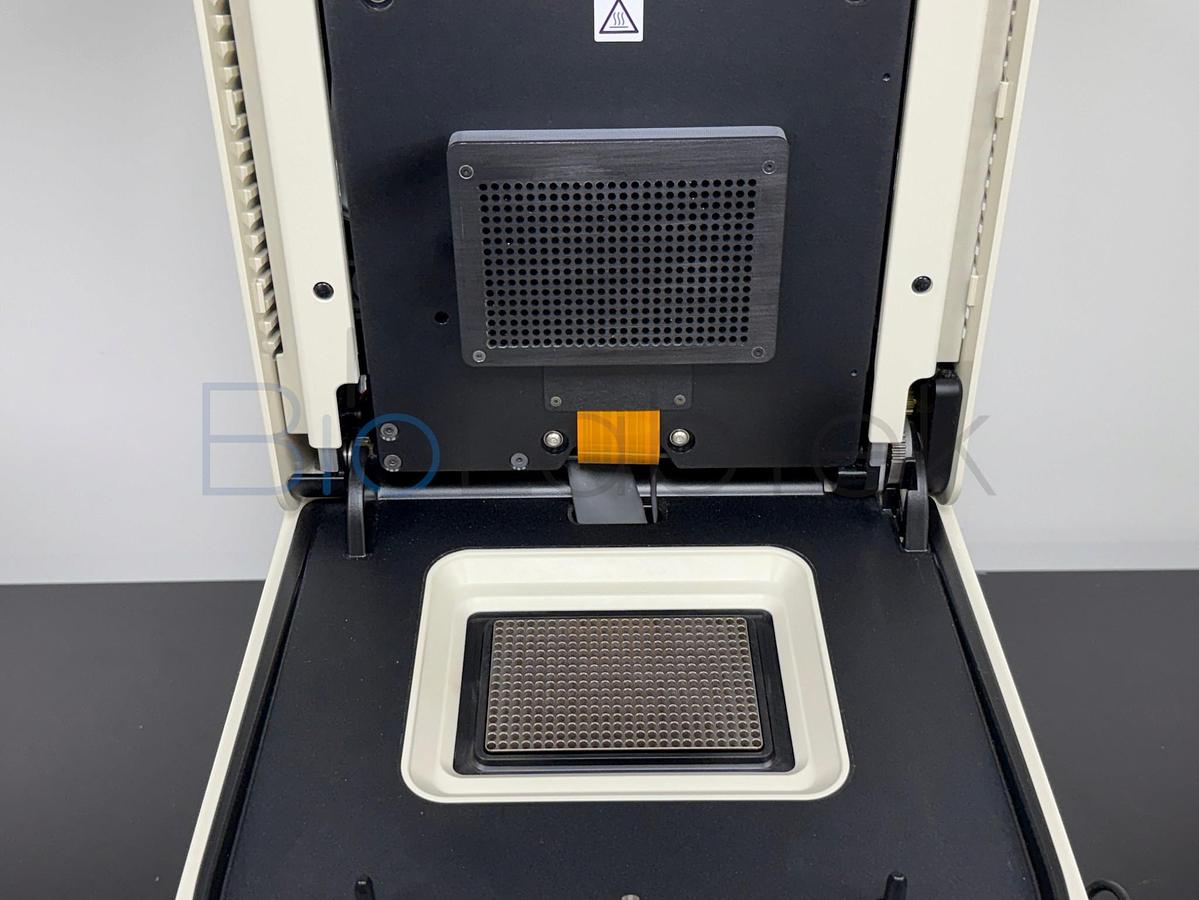

Bio-Rad CFX384 optical reaction module

Bio-Rad C1000 Touch thermal cycler base

Power cord

USB cable

Stylus pen, boxed

Maestro 2.3 software on thumb drive for windows

Nothing else is included unless shown in the photos

Condition Details

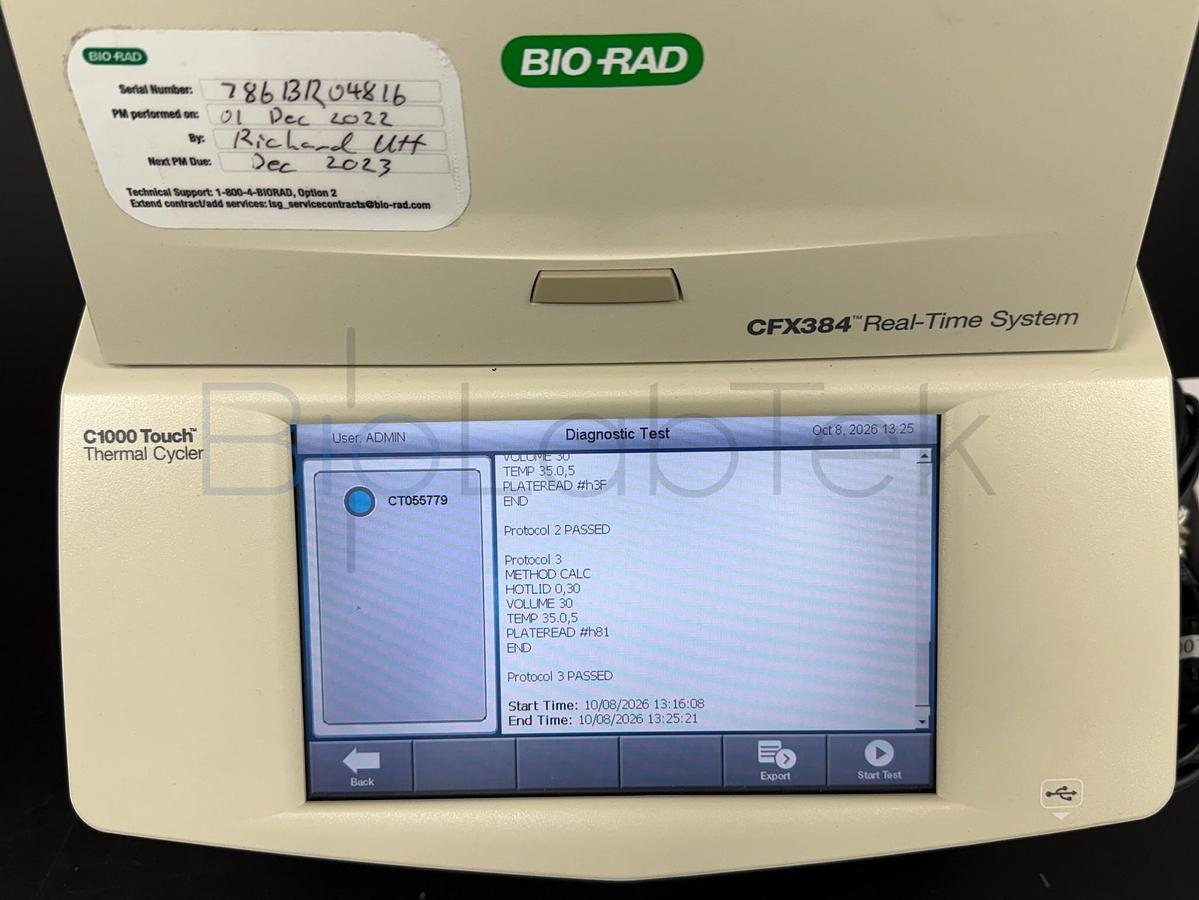

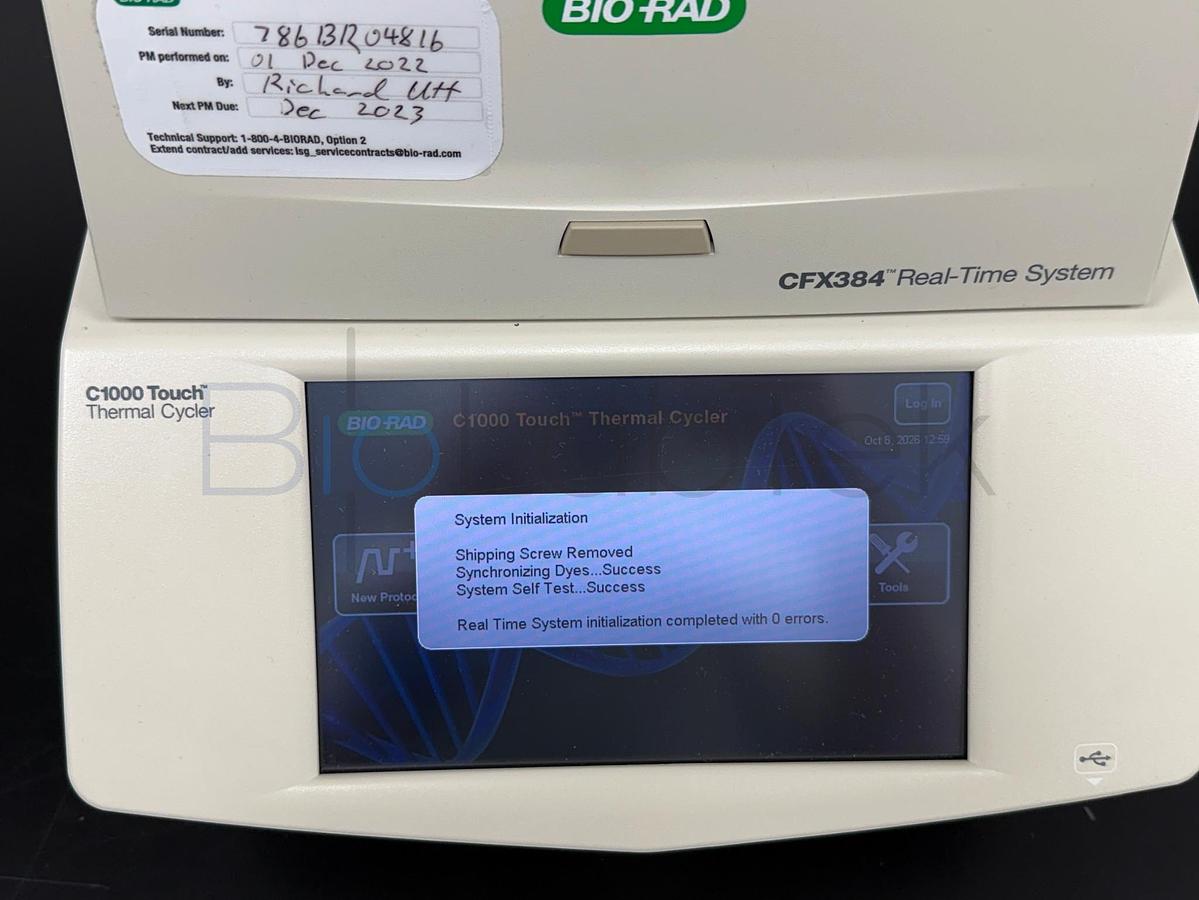

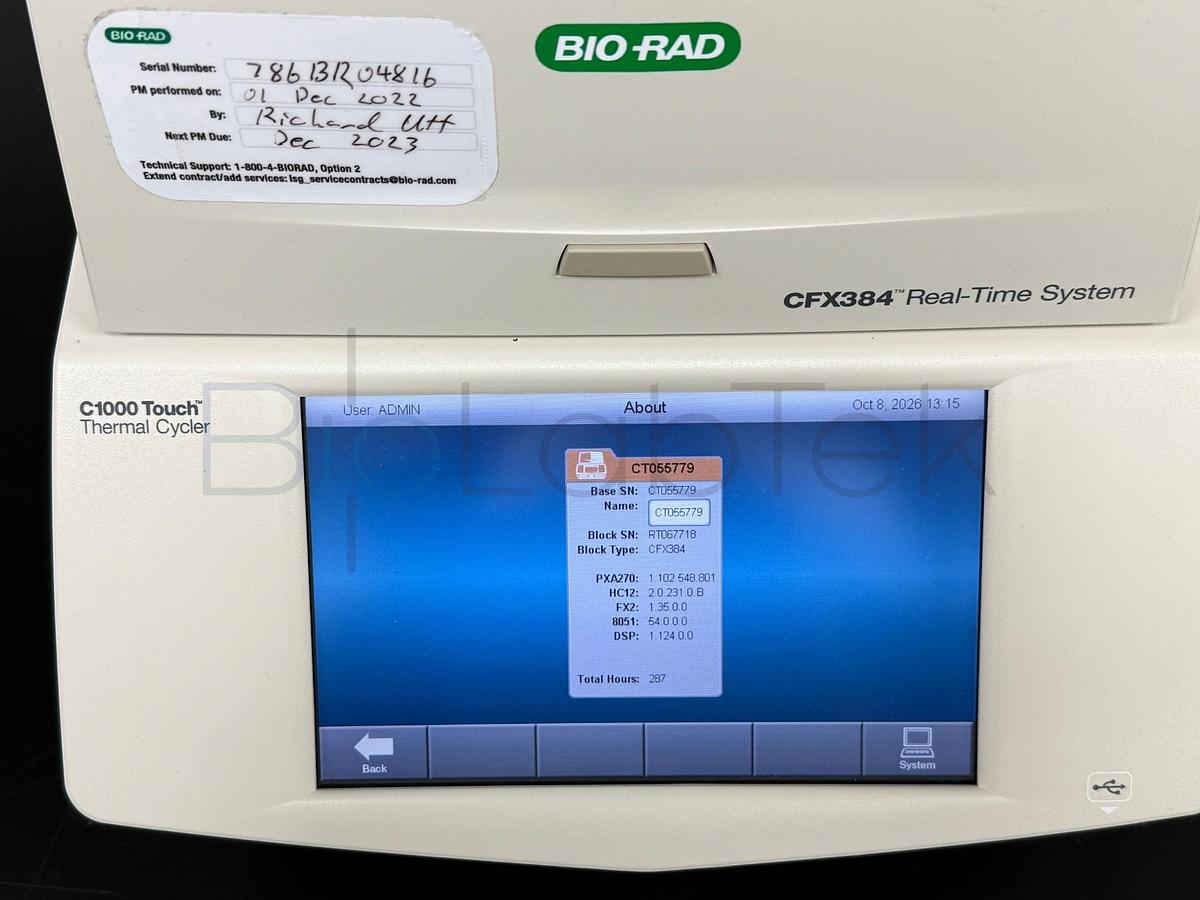

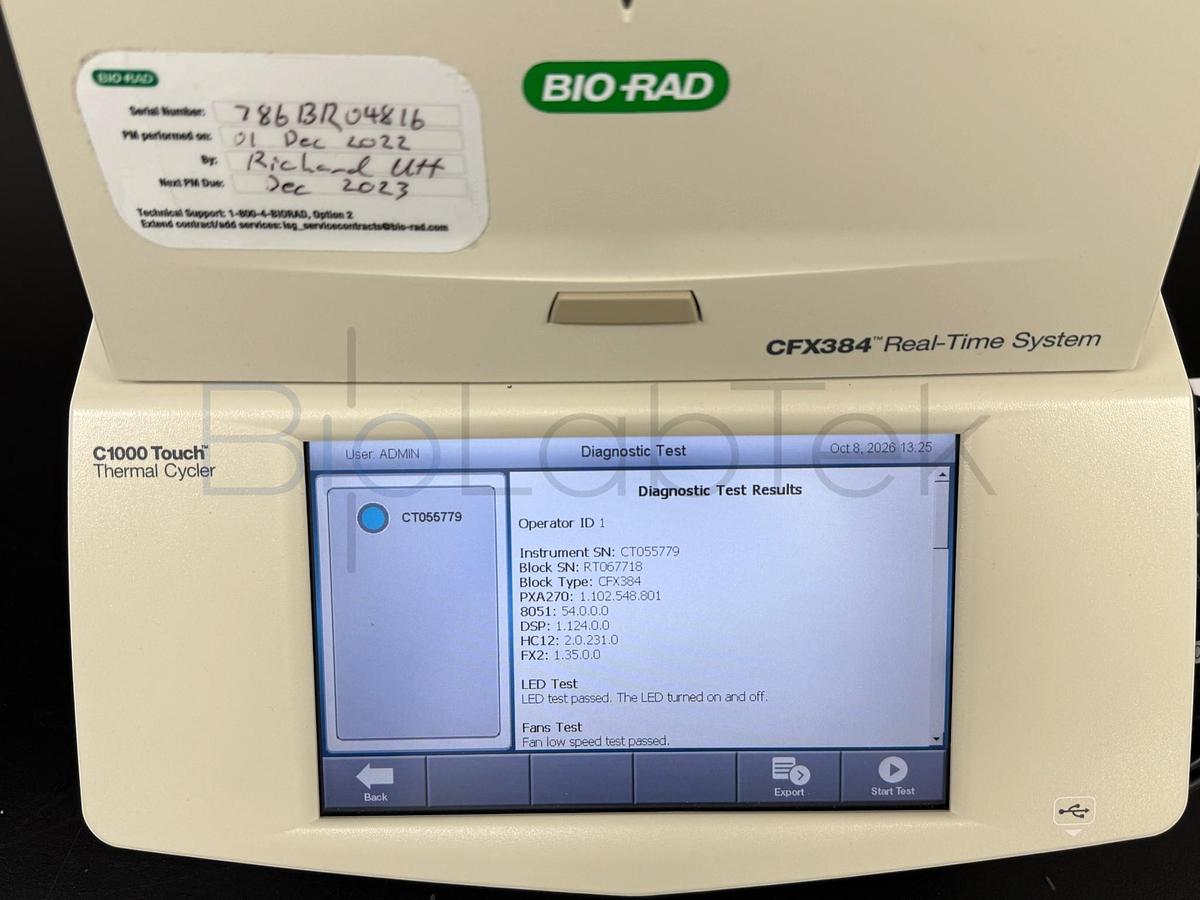

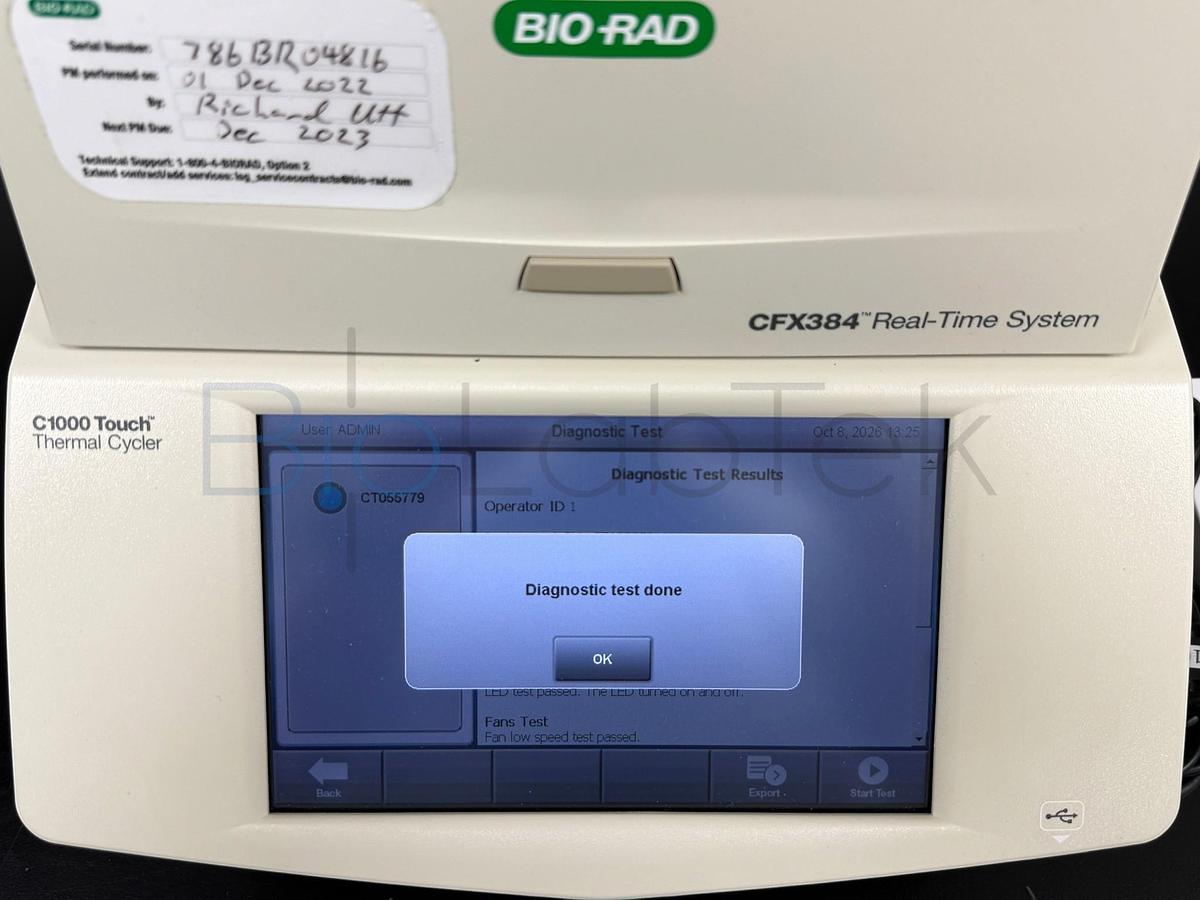

Unit powers on, completes system initialization with 0 errors and passed the built-in diagnostic test, and all functions tested normally; the About screen reports 287 total hours; calibration verification is the responsibility of the buyer.

Specifications

Sample capacity 384 wells

Reaction volume 1 to 30 µL (5 to 20 µL recommended)

Maximum ramp rate 2.5 °C/sec

Average ramp rate 2 °C/sec

Temperature range 0 to 100 °C

Temperature accuracy ±0.2 °C of programmed target at 90 °C

Temperature uniformity ±0.4 °C well-to-well within 10 sec of arrival at 90 °C

Gradient range 30 to 100 °C

Gradient differential 1 to 24 °C

Heated lid Up to 105 °C

Excitation 5 filtered LEDs

Detection 5 filtered photodiodes

Wavelength range 450 to 690 nm

Multiplexing Up to 4 targets per well

Scan time All channels under 20 sec, FAM/SYBR Green only 8 sec

Sensitivity Detects 1 copy of target sequence in human genomic DNA

Dynamic range 10 orders of magnitude

Communications USB 2.0

Dimensions (W x D x H) 33 x 46 x 36 cm (13 x 18 x 14 in)

Weight 21 kg (47 lb)

Power 100-240 VAC, 50-60 Hz, 850 W max. Verify voltage before purchase.

Specs from manufacturer literature for reference. Verify against your application.
