Agilent PlateLoc Thermal Microplate Sealer | Benchtop Plate Heat Sealer 2021 Warranty

LIQUID HANDLING: Automation/Dispensing

Agilent PlateLoc Thermal Microplate Sealer | Benchtop Plate Heat Sealer

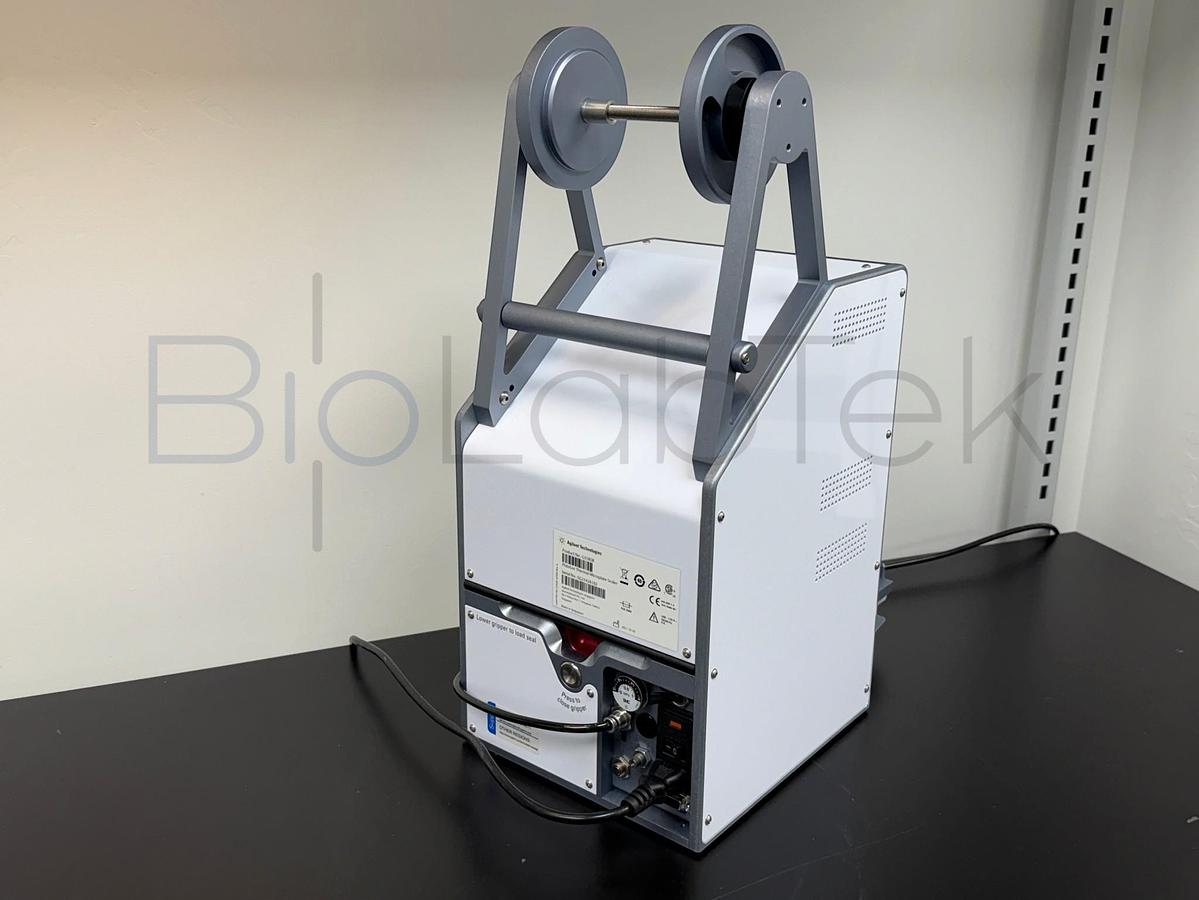

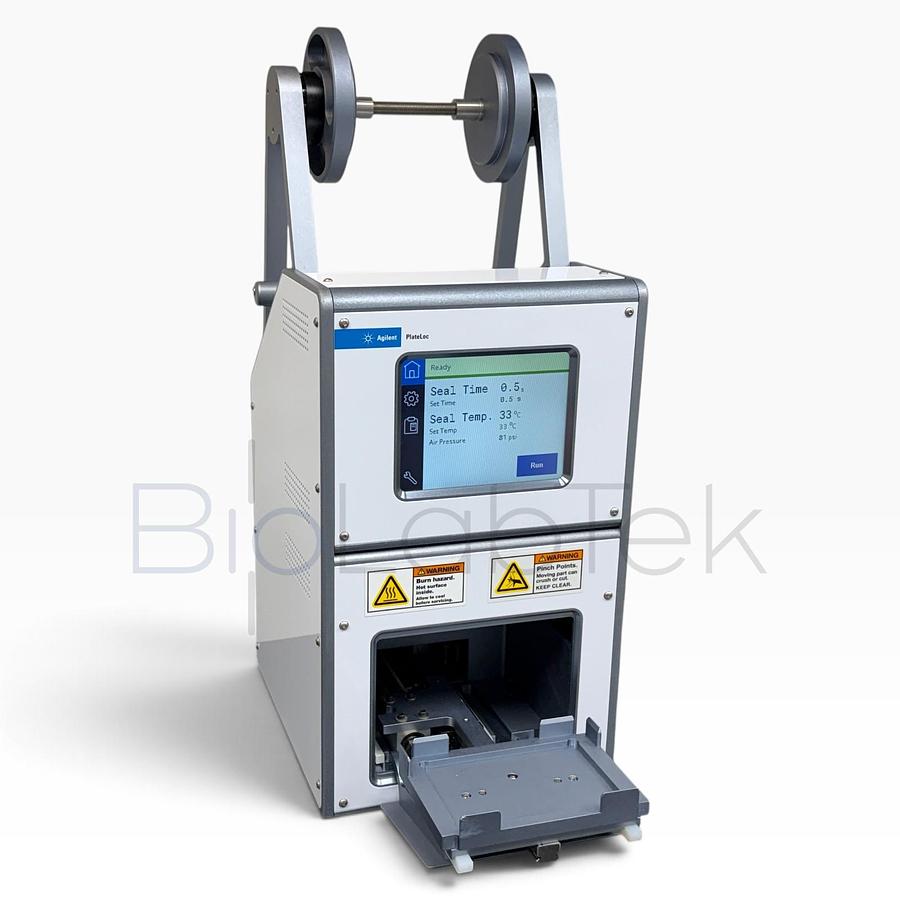

Used Agilent PlateLoc G5585B thermal microplate sealer with color touchscreen and standard hot plate, running on 100-120 V and requiring a compressed air supply, tested to temperature with 1313 cycles logged.

Used Tested Excellent working order

At a glance

Manufacturer | Agilent

Model | PlateLoc Thermal Microplate Sealer

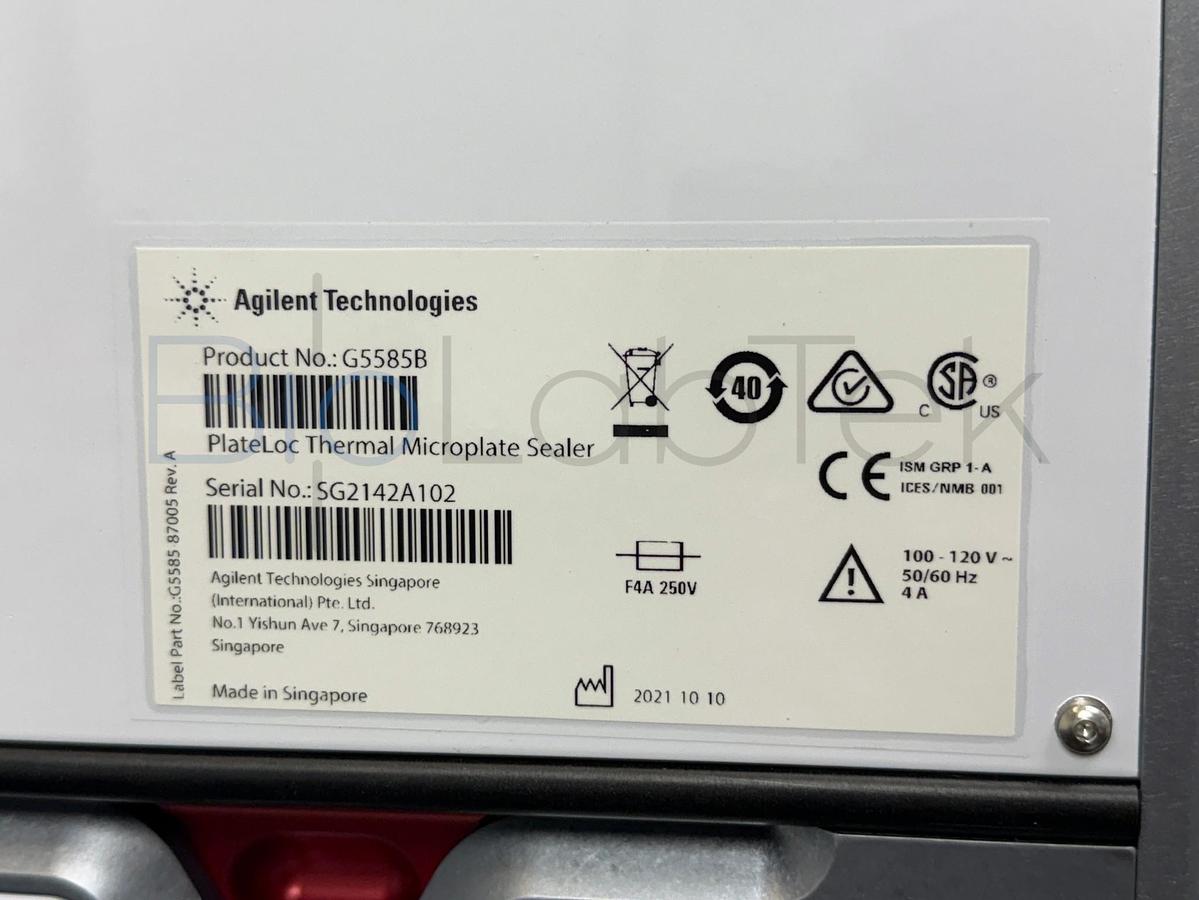

Part / Catalog # | G5585B

Serial # | SG2142A102

Year / DOM | October 2021

Condition | Lightly Used, Excellent

What's Included

Agilent PlateLoc G5585B thermal microplate sealer

Compressed air inlet tubing

Power cord

Nothing else is included unless shown in the photos

Condition Details

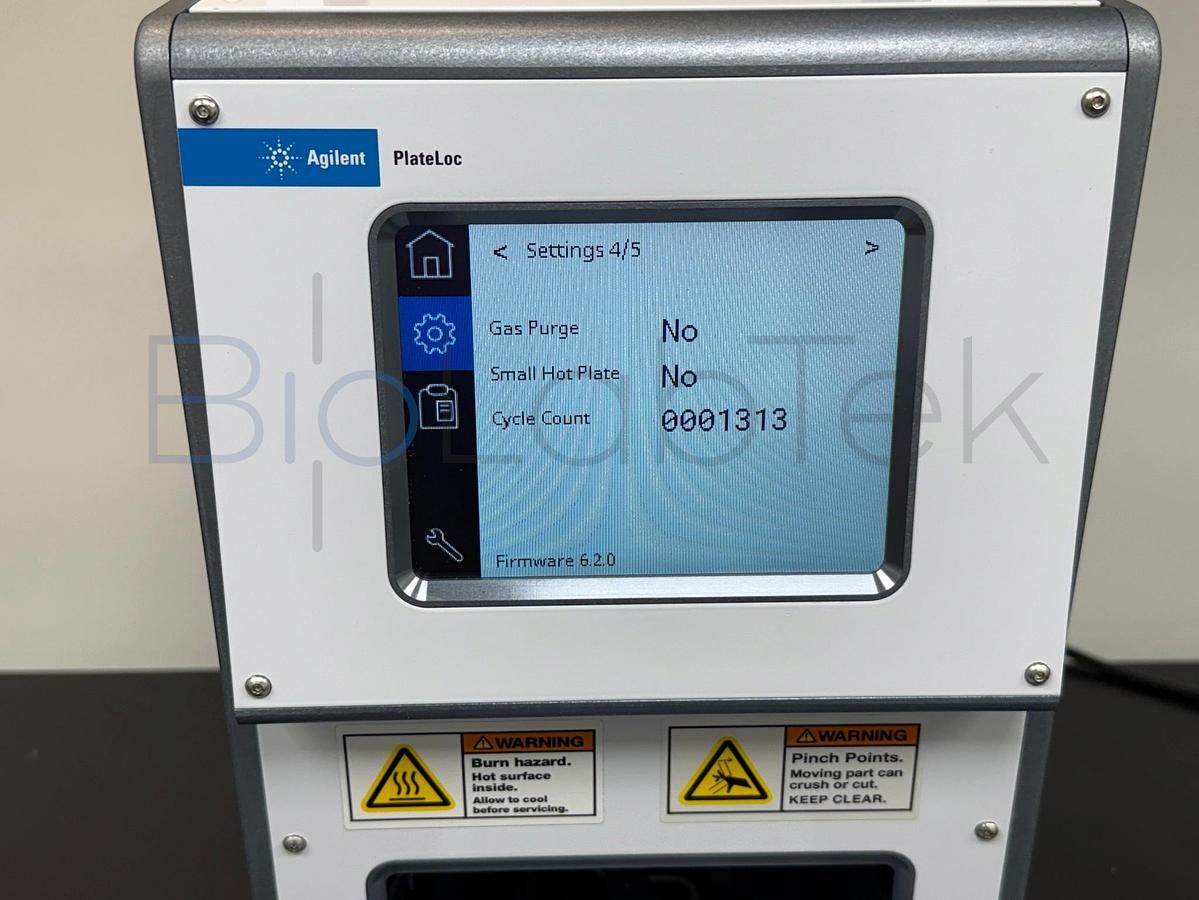

Unit powers on and all functions work as required; the cycle counter reads 1313 cycles.

Specifications

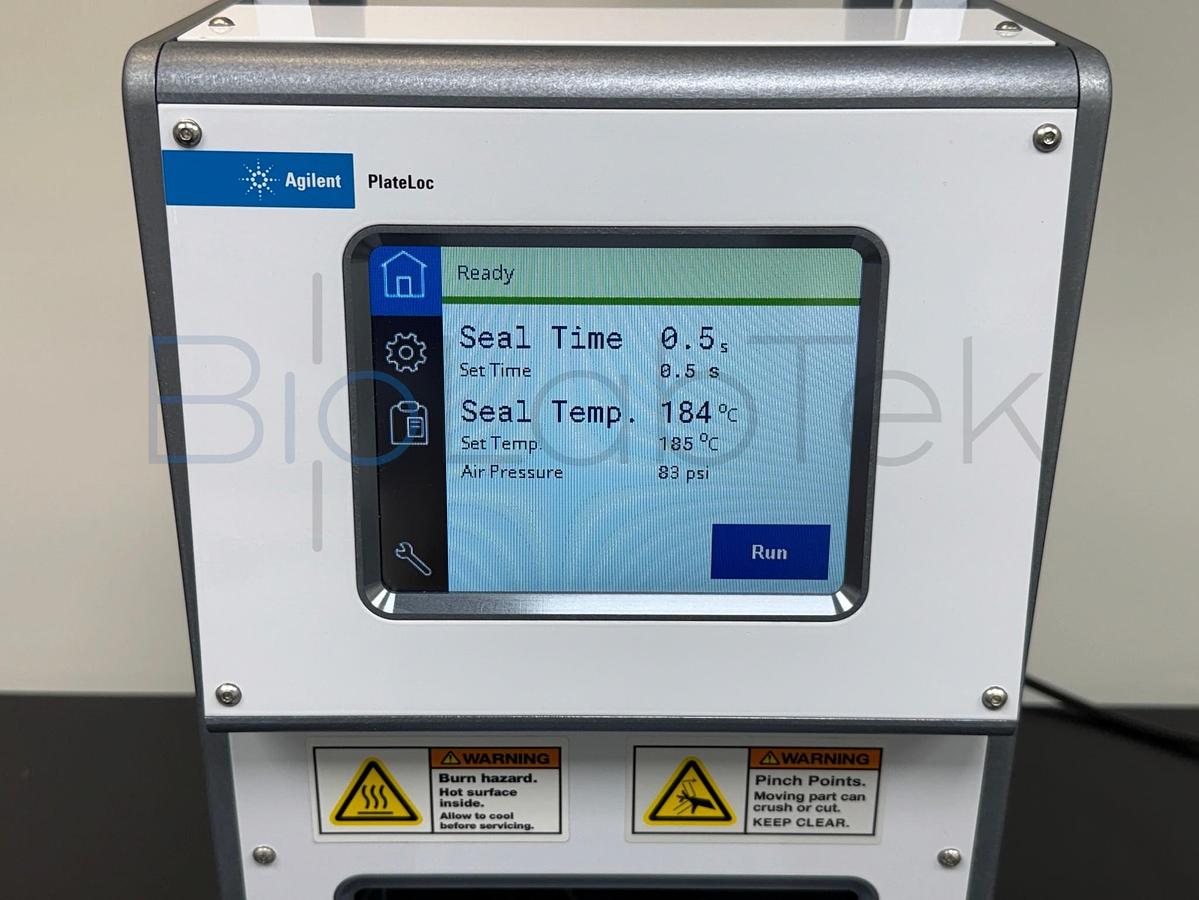

Sealing temperature range 30 to 200 °C

Cycle time About 8 seconds per plate

Microplate height Up to 51 mm (2 in)

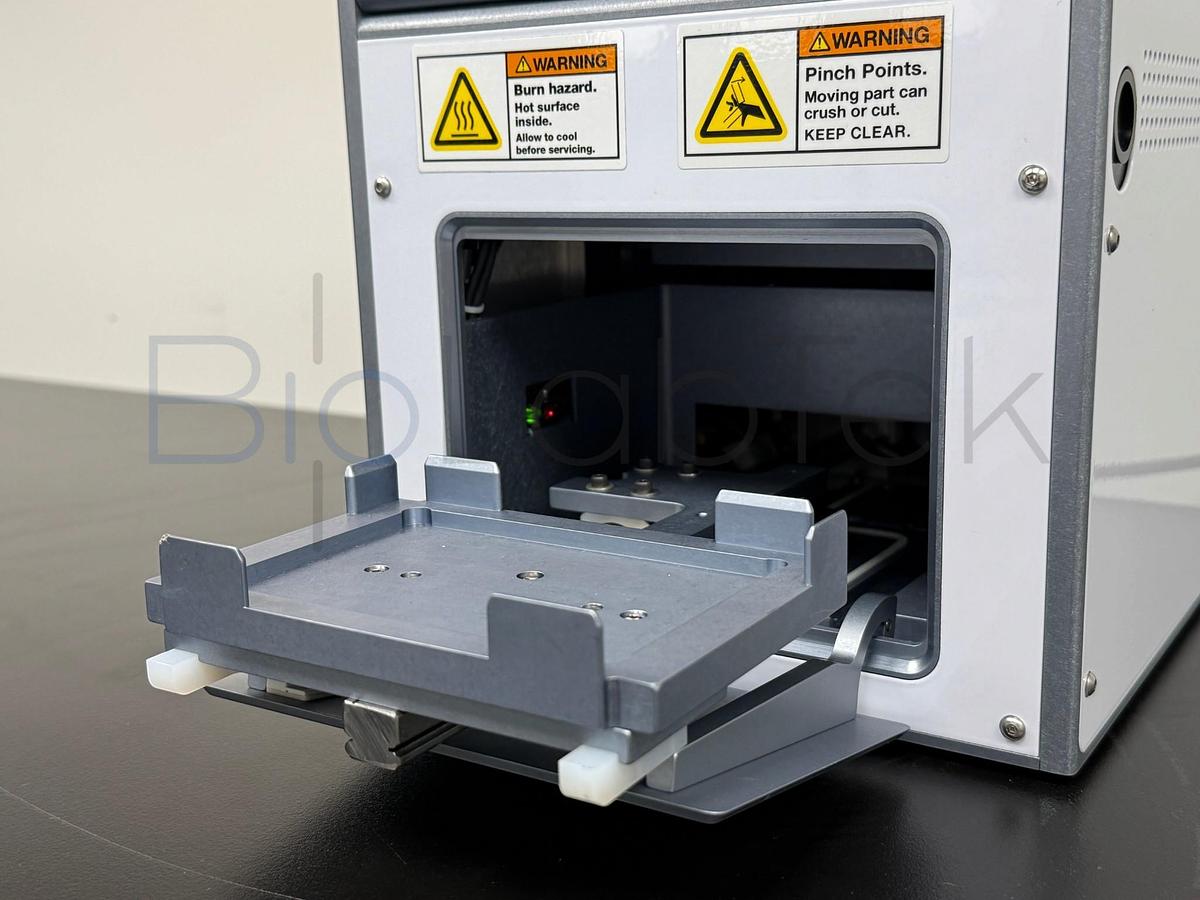

Labware ANSI/SLAS 1-2004 through 4-2004 microplates with raised well rims

Compatible seals Clear and aluminum seal rolls, pierceable and peelable

Warm-up time 5 min

Control Color touchscreen, RS-232 serial port for automation control

Configuration Standard hot plate, no gas purge option

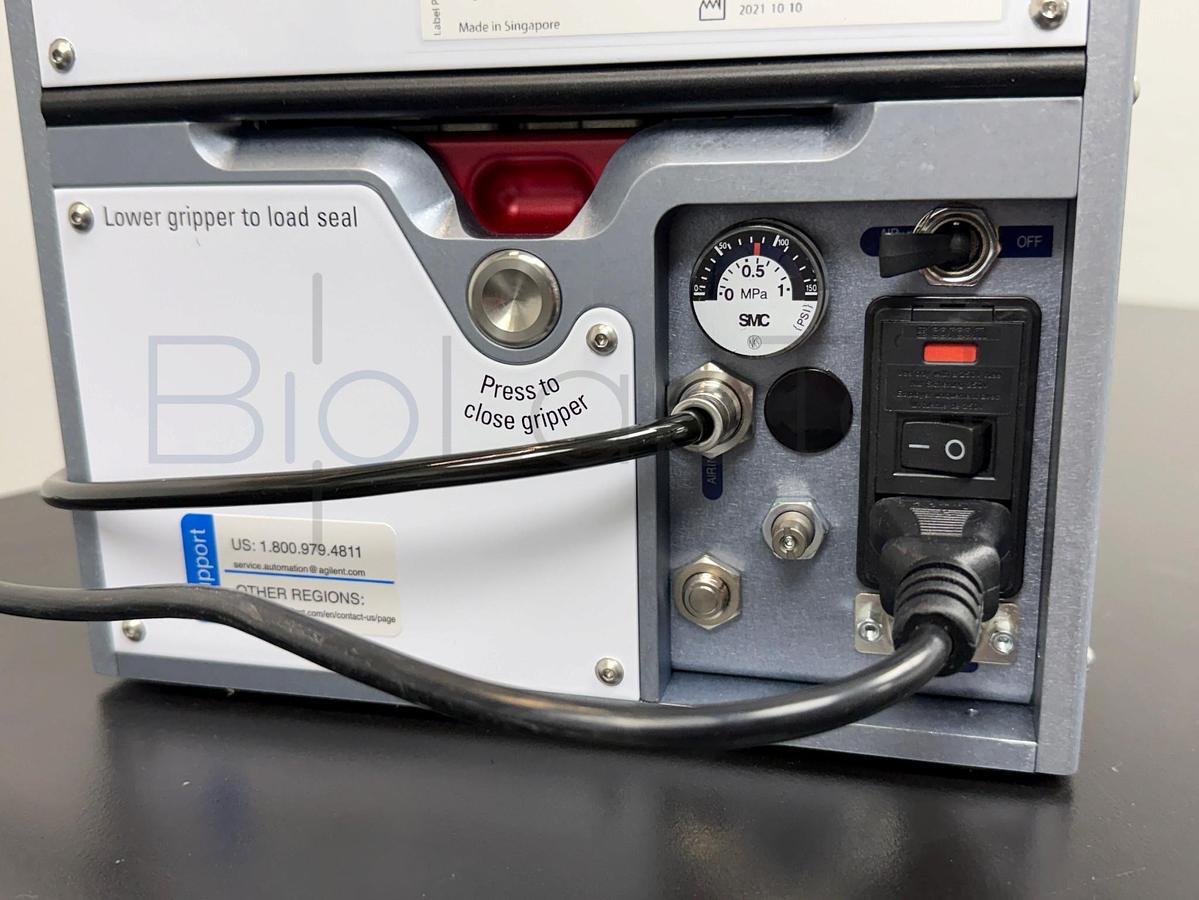

Compressed air 0.62 to 0.69 MPa (90 to 100 psi), 125 to 135 L/min, clean and dry

Operating environment 4 to 40 °C, 10 to 90% RH non-condensing

Dimensions (W x D x H) 21.6 x 39.9 x 58.4 cm (8.5 x 15.7 x 23.0 in) with seal roll and door open

Weight 20 kg (45 lb)

Fuse F4A 250 V

Power 100-120 V~, 50/60 Hz, 4 A. Verify voltage before purchase.

Specs from manufacturer literature for reference. Verify against your application.
