Harvard Apparatus PHD ULTRA 4400 Programmable Syringe Pump | High Pressure

LIQUID HANDLING: Liquid Pumps

Harvard Apparatus PHD ULTRA 4400 Programmable Syringe Pump | High Pressure

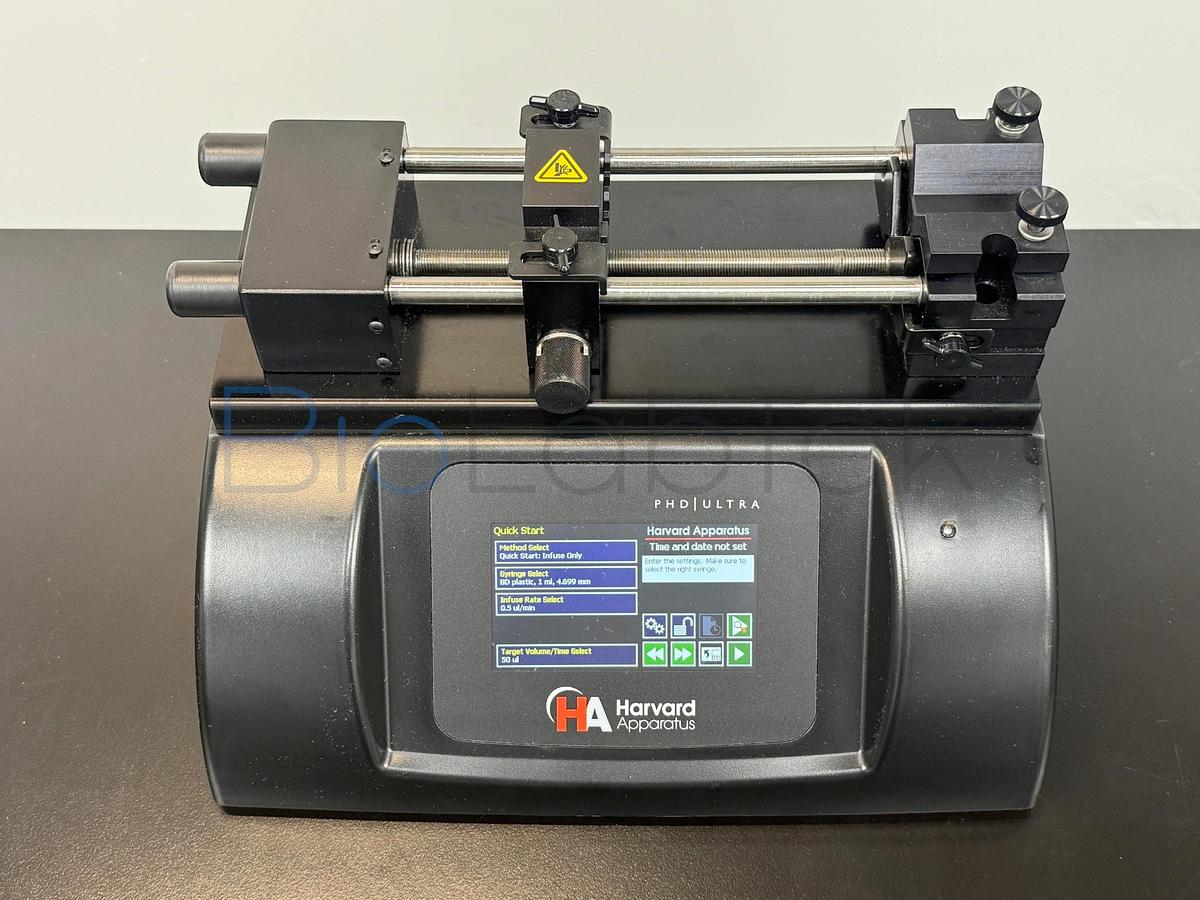

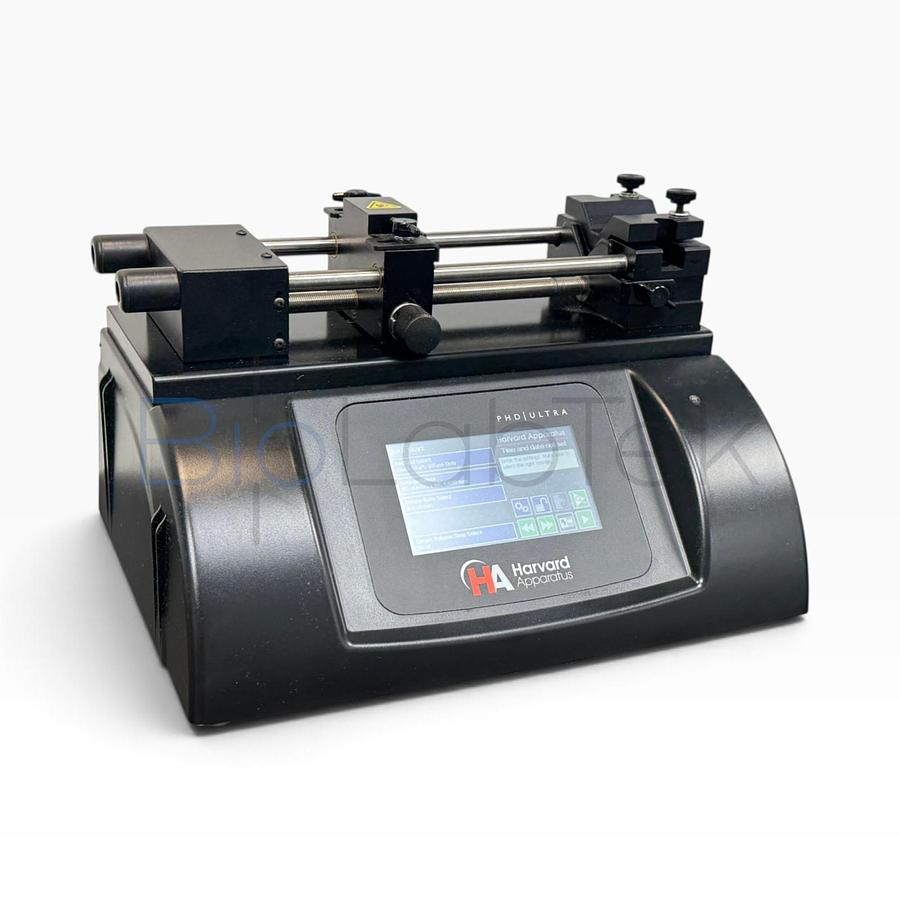

Used Harvard Apparatus PHD ULTRA 4400 infuse and withdraw programmable syringe pump rated to 200 lb linear force for high-pressure work, with the standard syringe rack and color touchscreen, tested with an infusion run.

Used Tested

At a glance

Manufacturer | Harvard Apparatus

Model | PHD ULTRA 4400

Part / Catalog # | 70-3010

Serial # | 1104067

Year / DOM | May 2022

Condition | Lightly Used, Excellent

What's Included

Harvard Apparatus PHD ULTRA 4400 syringe pump, catalog 70-3010

Standard syringe rack with barrel clamps and pusher block

Power cord

Nothing else is included unless shown in the photos

Condition Details

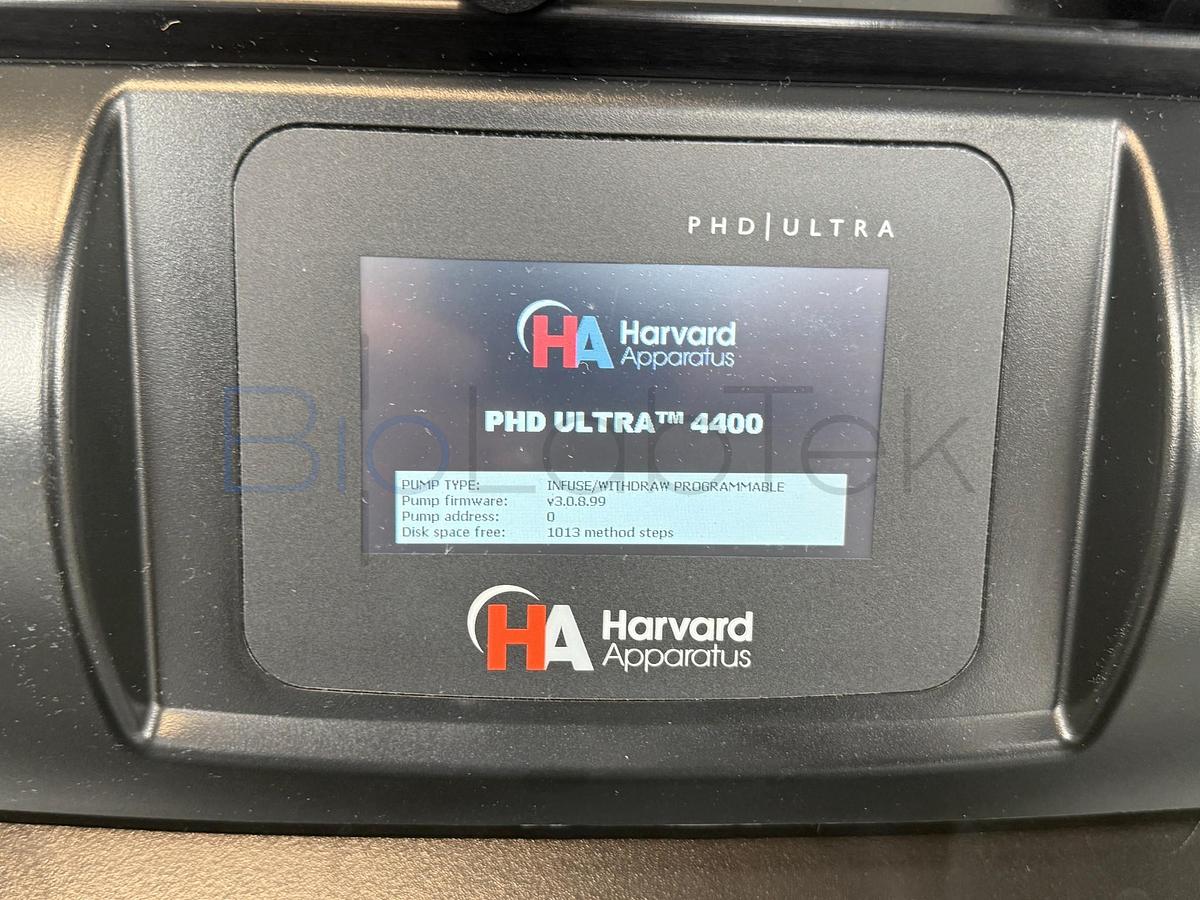

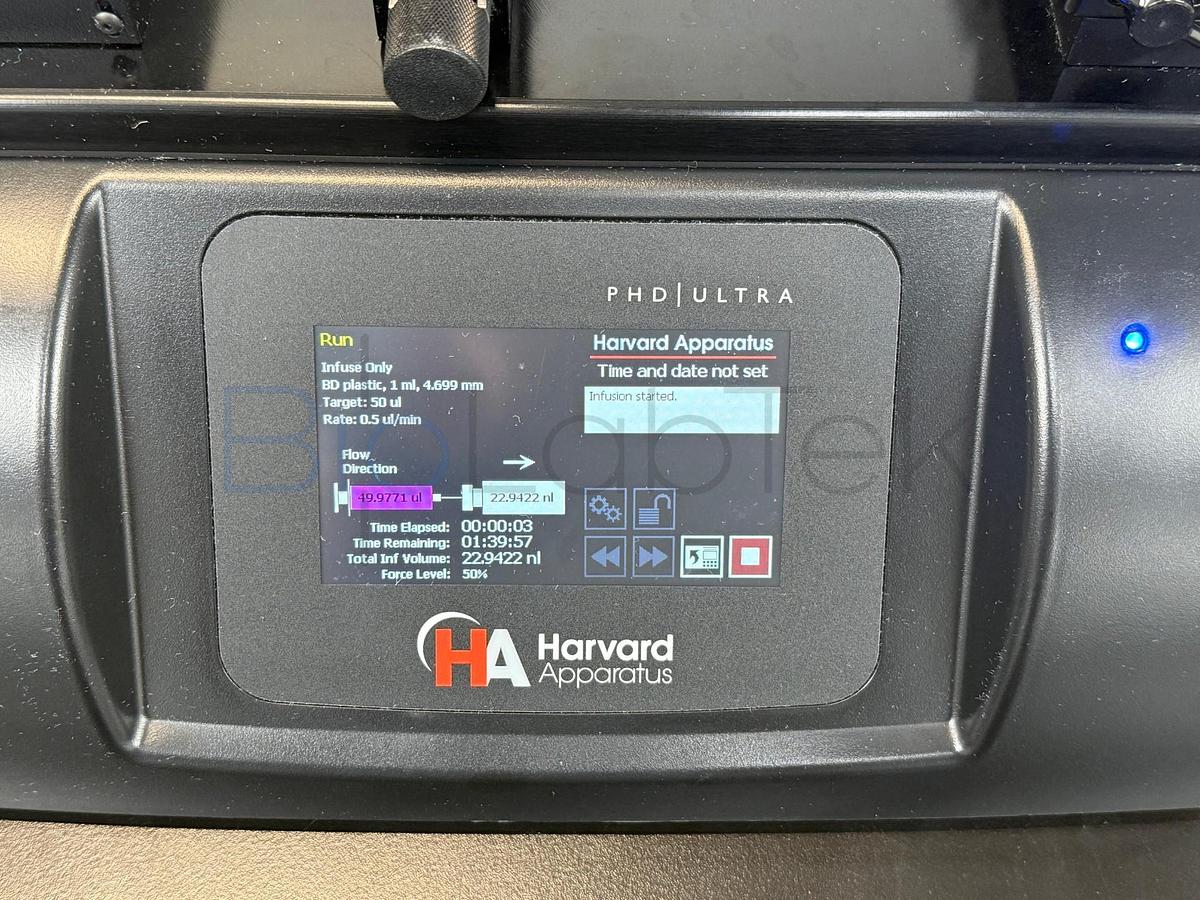

Unit powers on, reports Infuse/Withdraw Programmable on the start screen and ran an infusion at 0.5 µL/min against a 1 mL syringe profile during testing; the exterior is clean; flow calibration verification is the responsibility of the buyer.

Specifications

Pump type Infuse and withdraw programmable syringe pump

Rack style Standard syringe rack

Control 4.3 in WQVGA color touchscreen with on-board method programming

Method storage On-board method steps stored in instrument memory

Syringe size range 0.5 µL to 140 mL

Flow rate range 3.06 pL/min to 216 mL/min (0.5 µL to 140 mL syringes)

Accuracy ±0.35%

Reproducibility ±0.05%

Maximum linear force 200 lb at 100% force selection

Pusher travel rate 0.36 µm/min to 190.8 mm/min

Drive 1.8° stepper motor with 1/16 microstepping

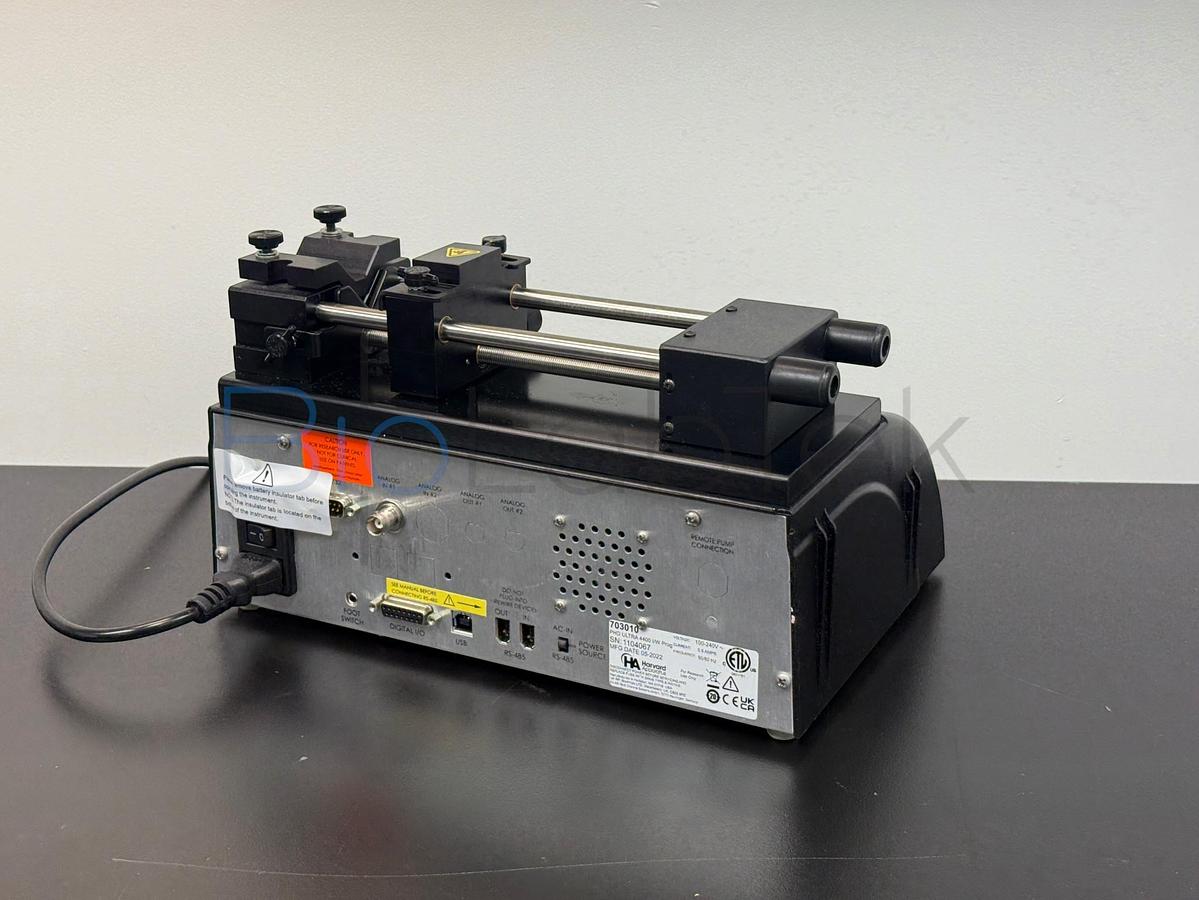

Communication RS-232, RS-485 in and out, USB, digital I/O

Other connections Foot switch input

Analog input Analog input 1 BNC connector fitted on this unit

Dimensions 30.5 x 21.6 x 18.4 cm (12 x 8.5 x 7.25 in)

Weight 5.5 kg (12.1 lb)

Use restriction Research use only, not for clinical use on patients

Operating temperature 4 to 40 °C

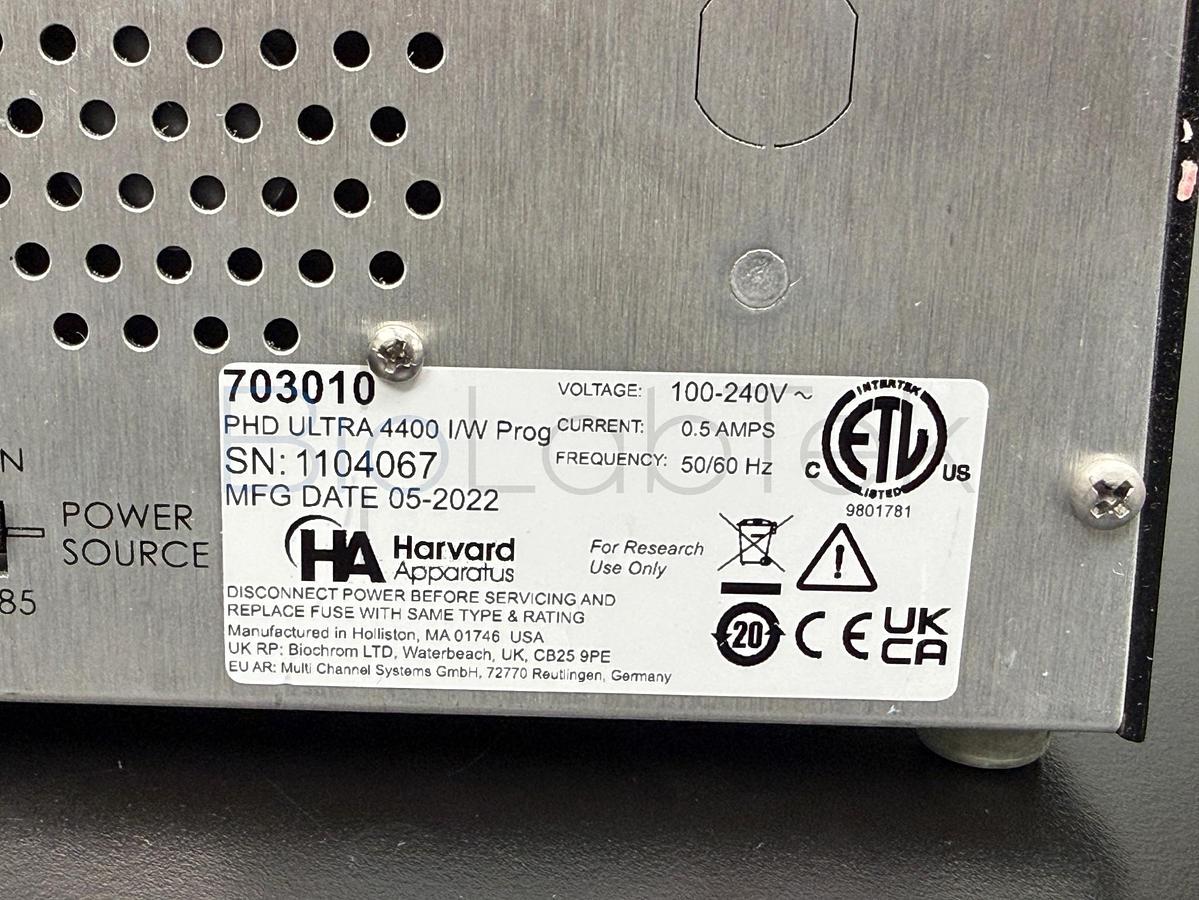

Power 100-240 V, 50/60 Hz, 0.5 A. Verify voltage before purchase.

Specs from manufacturer literature for reference. Verify against your application.
