Harvard Apparatus PHD ULTRA Programmable Syringe Pump | Standard Rack

LIQUID HANDLING: Liquid Pumps

Harvard Apparatus PHD ULTRA Programmable Syringe Pump | Standard Rack

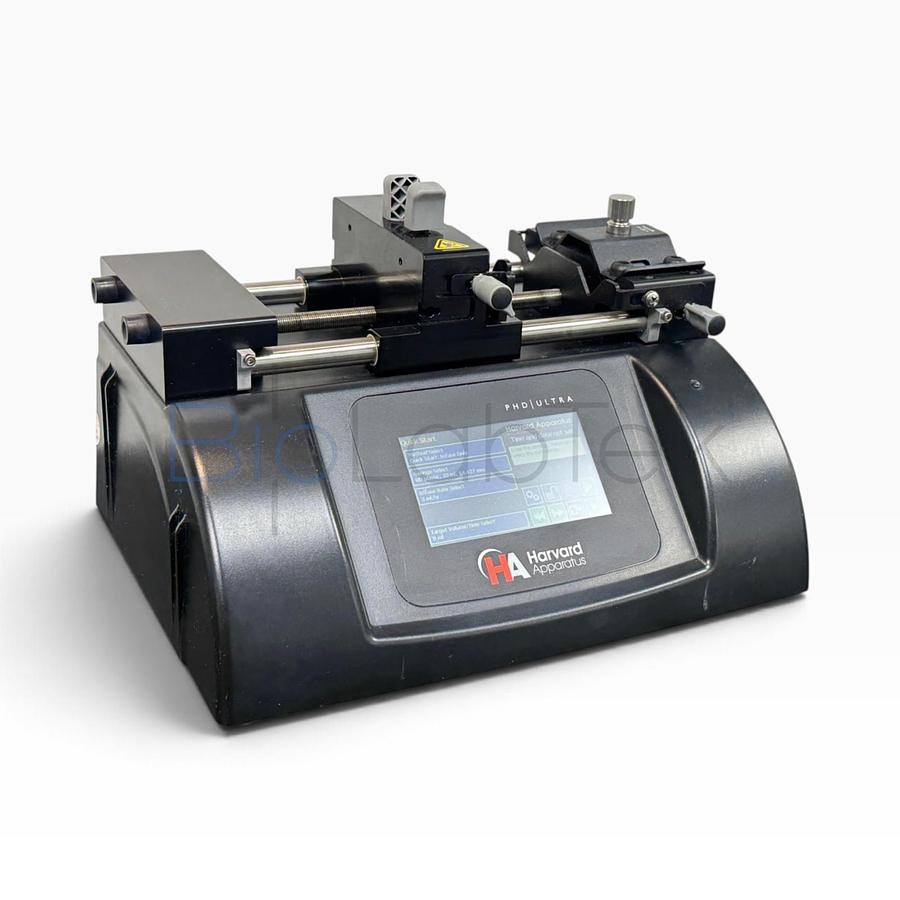

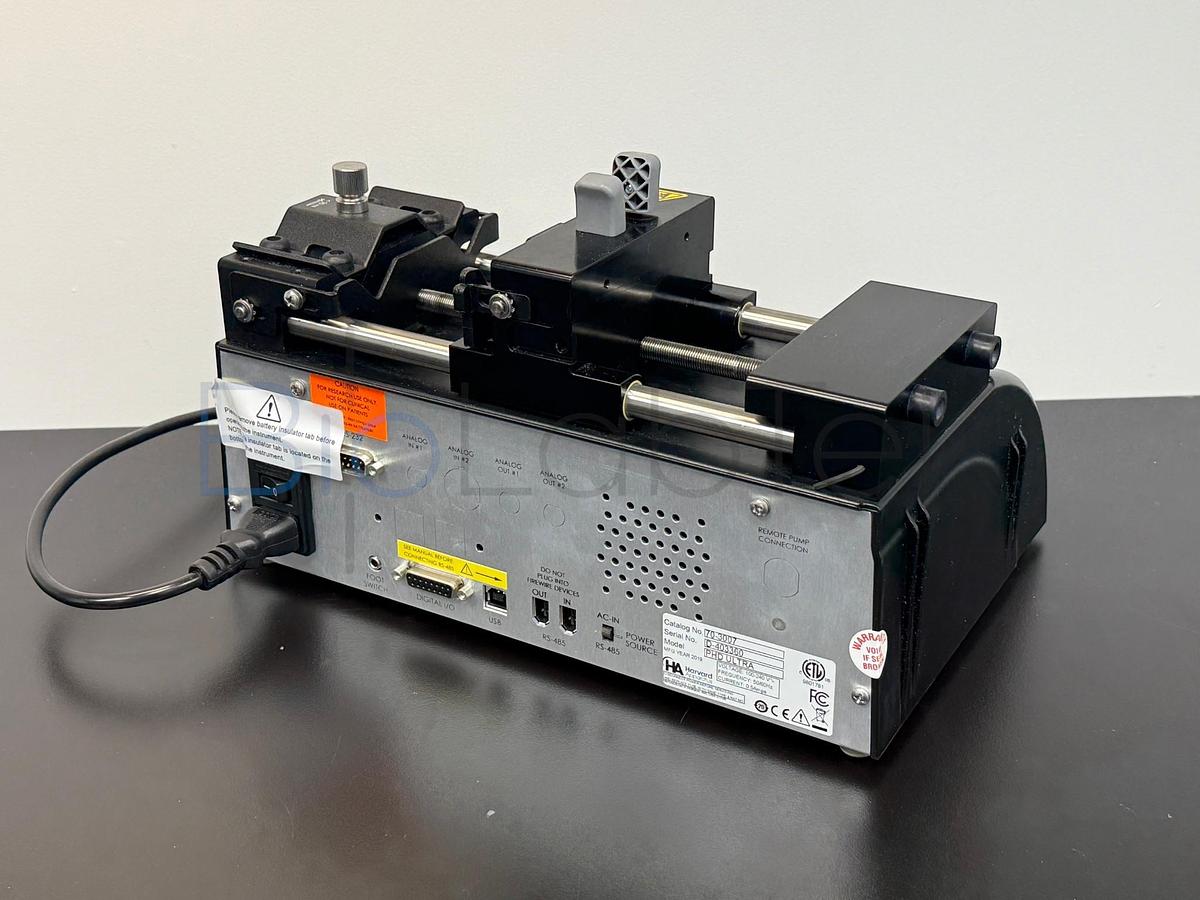

Used Harvard Apparatus PHD ULTRA infuse and withdraw programmable syringe pump with the standard syringe rack and color touchscreen, running on 100-240 V single phase and tested with an infusion run.

Used Tested

At a glance

Manufacturer | Harvard Apparatus

Model | PHD ULTRA

Part / Catalog # | 70-3007

Serial # | D-403360

Year / DOM | 2019

Condition | Lightly Used, Excellent

What's Included

Harvard Apparatus PHD ULTRA syringe pump, catalog 70-3007

Standard syringe rack with barrel clamp and pusher block

Power cord

Nothing else is included unless shown in the photos

Condition Details

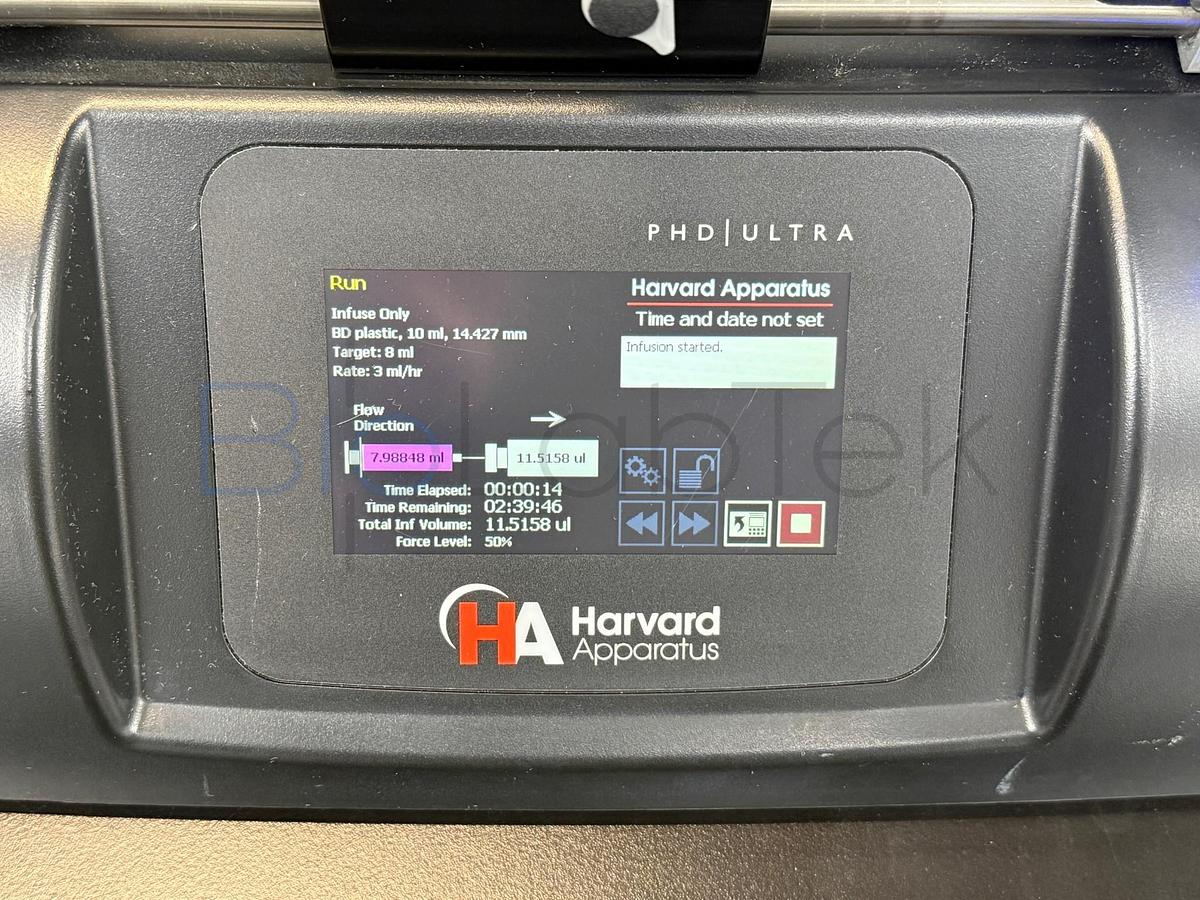

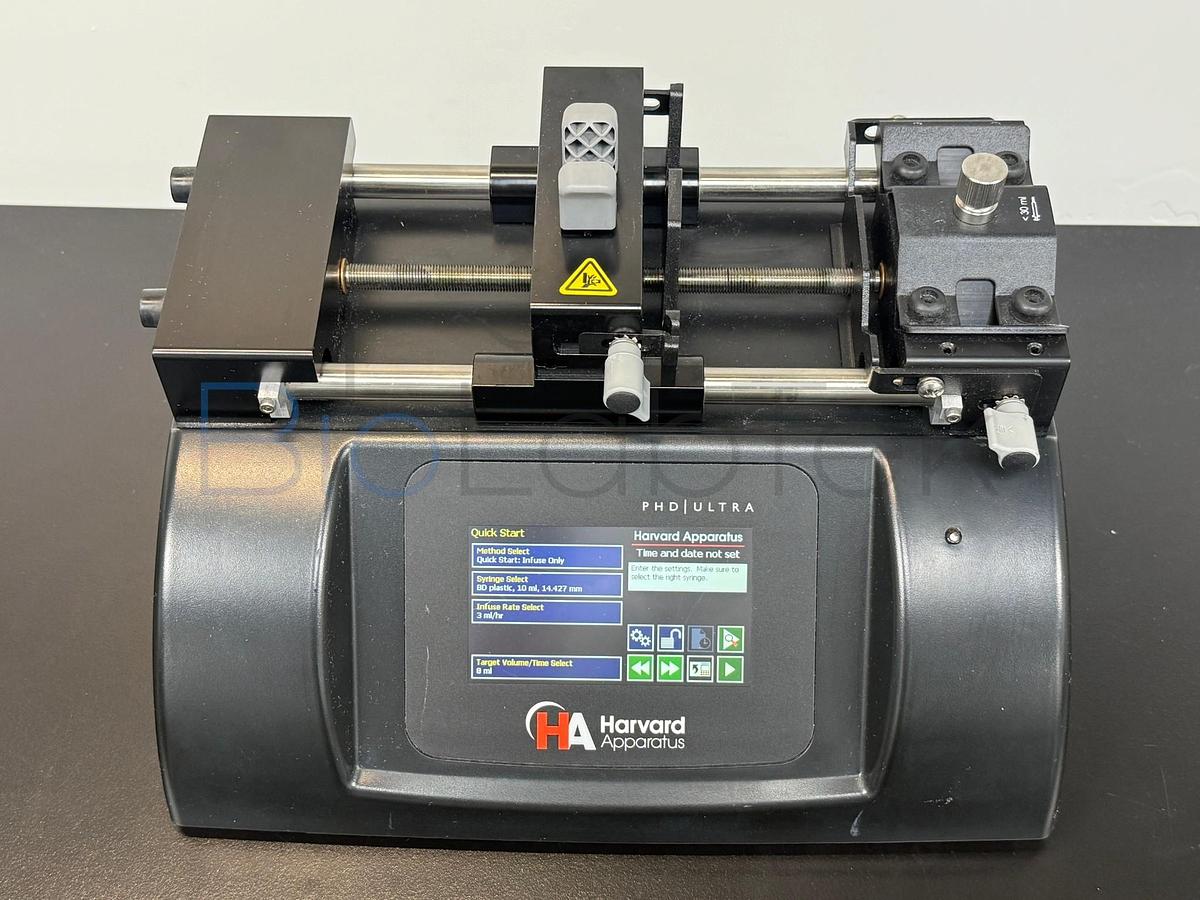

Unit powers on, loads the Quick Start screen and ran an infusion at 3 mL/hr against a 10 mL syringe profile during testing; the exterior is clean; flow calibration verification is the responsibility of the buyer.

Specifications

Pump type Infuse and withdraw programmable syringe pump

Rack style Standard syringe rack

Control Color touchscreen with on-board method programming

Method storage On-board method steps stored in instrument memory

Syringe setup Syringe library with manufacturer, volume and barrel diameter entry

Force control Adjustable force limit set as a percentage

Communication RS-232, RS-485 in and out, USB, digital I/O

Other connections Foot switch input

Use restriction Research use only, not for clinical use on patients

Syringe size range 0.5 µL to 140 mL

Flow rate range 1.56 pL/min to 216 mL/min (0.5 µL to 140 mL syringes)

Accuracy ±0.25%

Reproducibility ±0.05%

Maximum linear force 75 lb at 100% force selection

Pusher travel rate 0.18 µm/min to 190.8 mm/min

Dimensions 30.5 x 21.6 x 18.4 cm (12 x 8.5 x 7.25 in)

Weight 4.5 kg (10 lb)

Operating temperature 4 to 40 °C (40 to 104 °F)

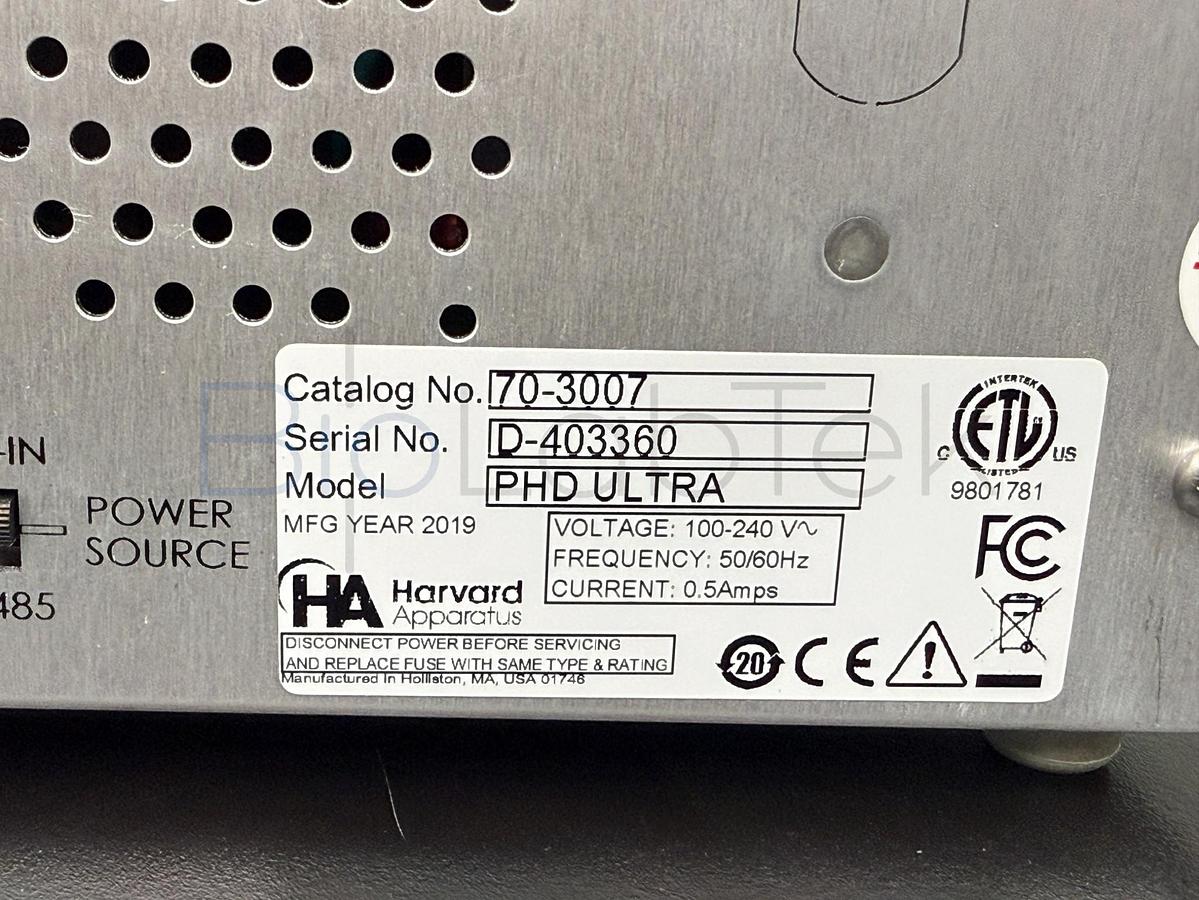

Power 100-240 V, 50/60 Hz, 0.5 A. Verify voltage before purchase.

Specs from manufacturer literature for reference. Verify against your application.
