GEA Panther 3006 Lab Homogenizer | Two-Stage 1200 Bar 120 L/h yr.2020

SAMPLE PREP: Homogenizers

GEA Panther 3006 Lab Homogenizer | Two-Stage 1200 Bar 120 L/h 3-Phase

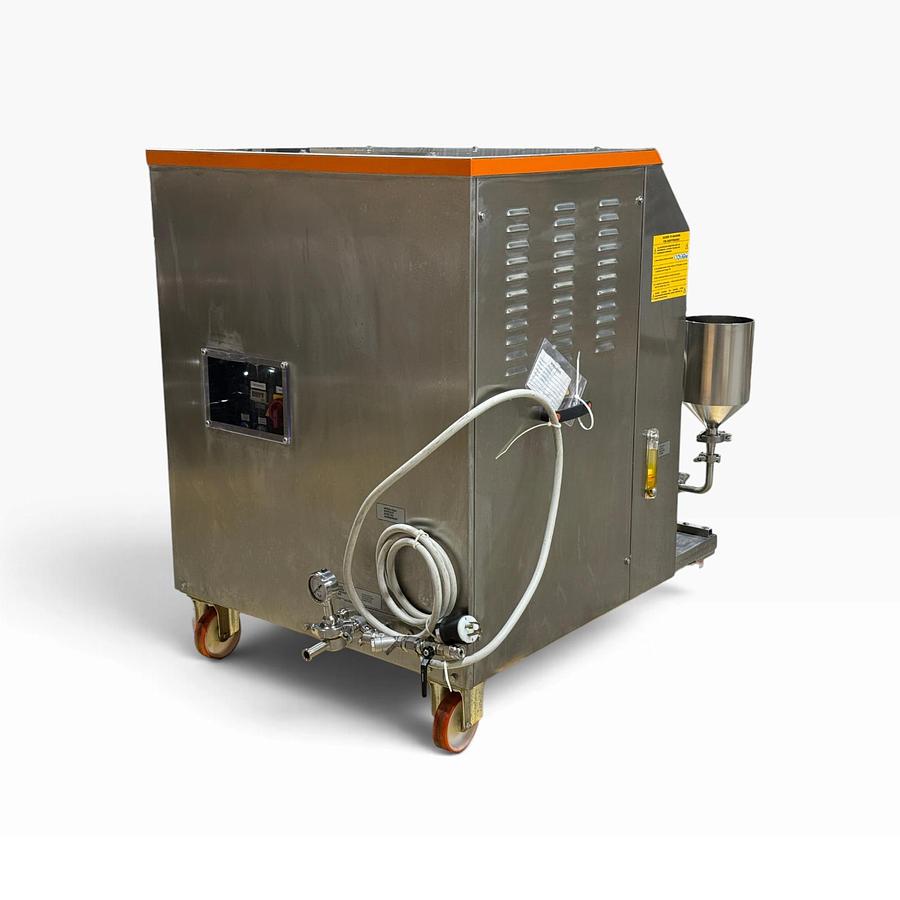

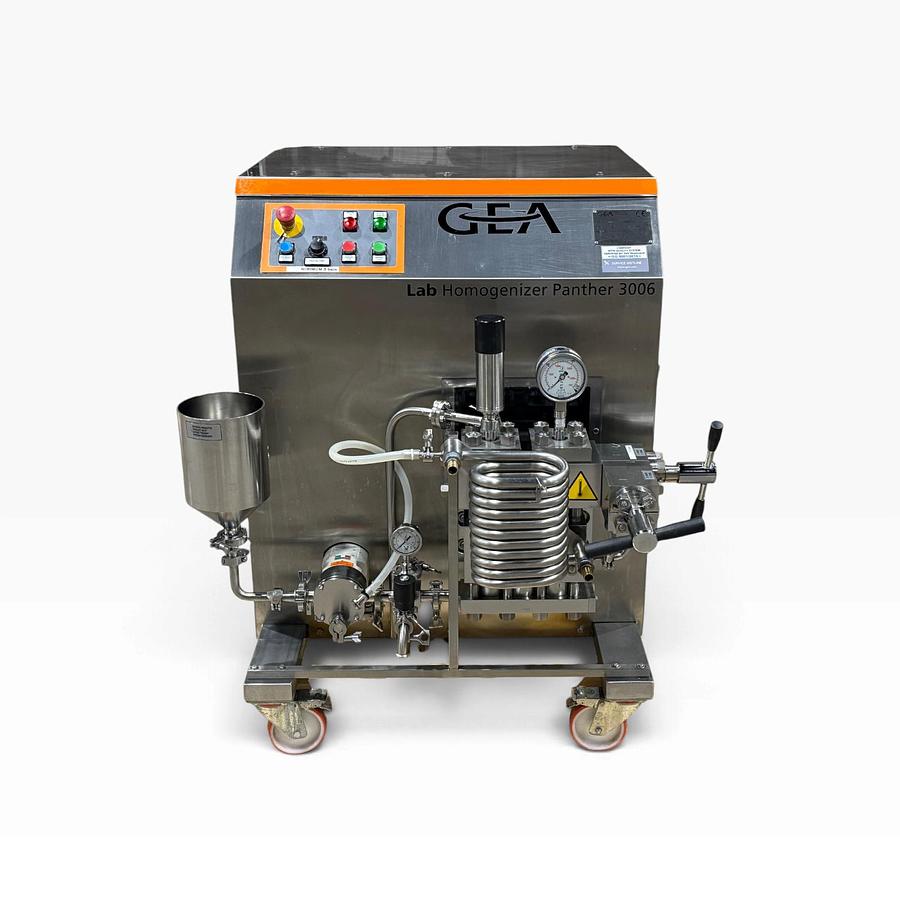

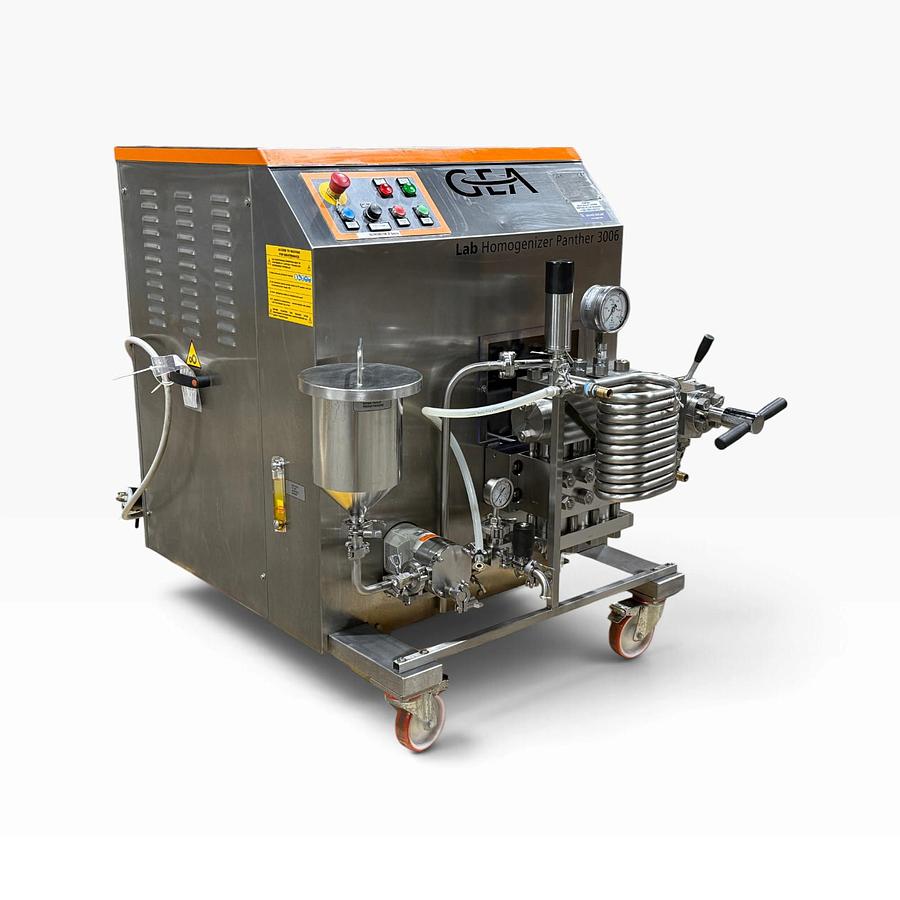

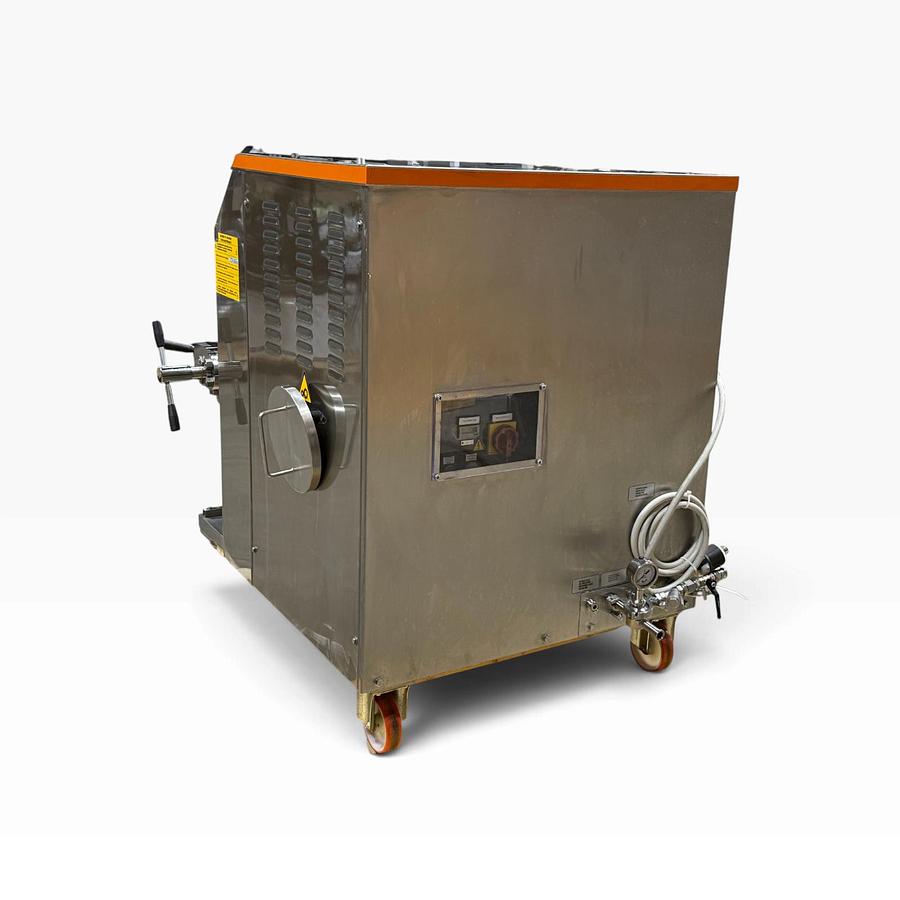

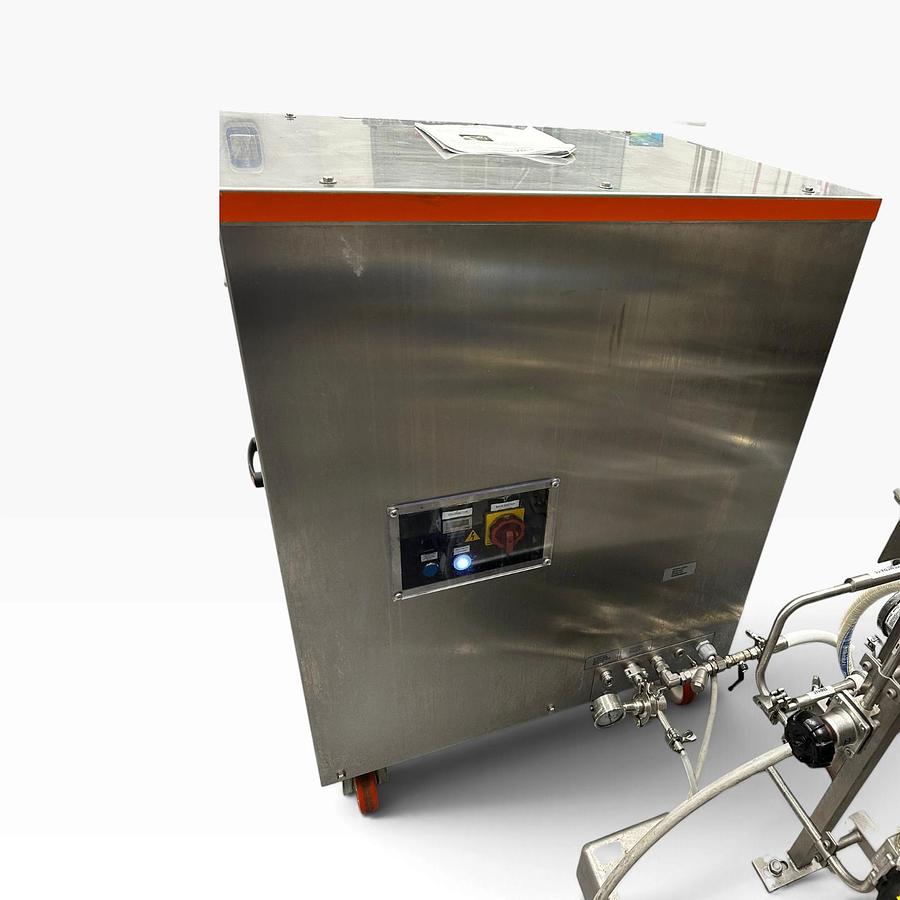

Used GEA (formerly Niro Soavi) NS3006L two-stage high-pressure homogenizer rated 120 MPa at 120 L/h, on a mobile frame with feed hopper, feed pump and outlet cooling coil; requires three-phase power.

Used Tested

At a glance

Manufacturer | GEA

Model | Panther 3006

Catalog # | NS3006L

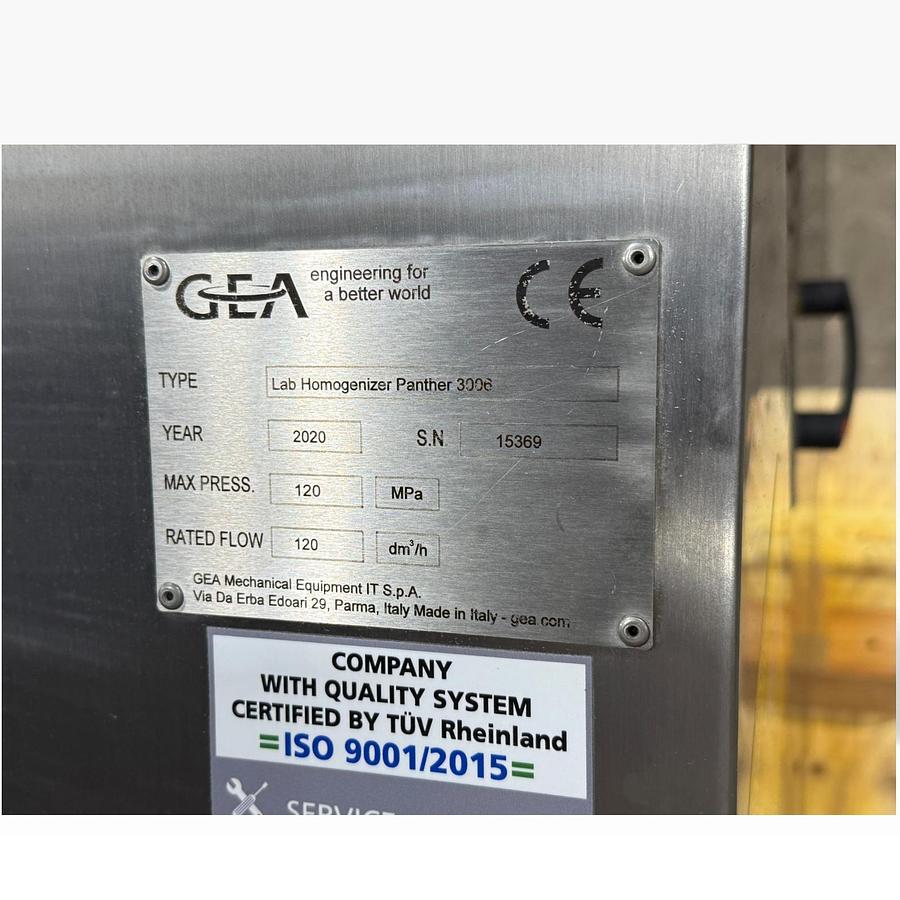

Serial # | 15369

Year / DOM | 2020

Condition | Lightly Used, Excellent

What's Included

• GEA Lab Homogenizer Panther 3006 with attached power cord and twist-lock plug
• Stainless steel feed hopper lid with handle
• Nothing else is included unless shown in the photos

Condition Details

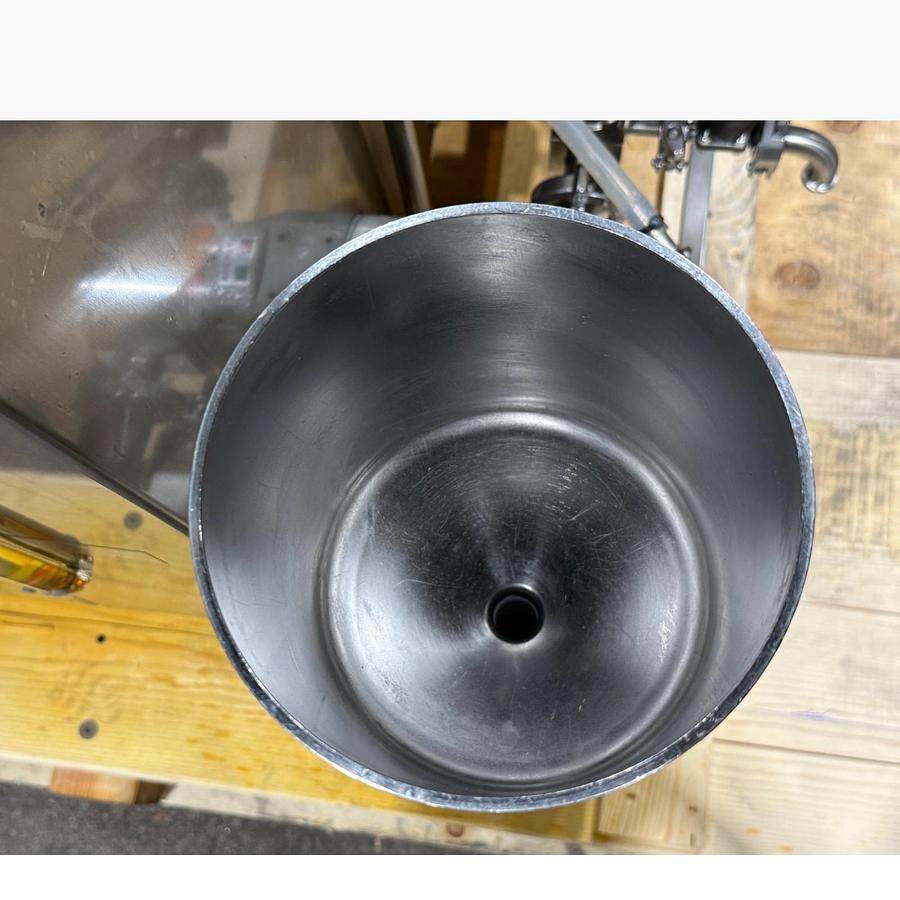

Unit powers on and all functions tested normally; exterior is clean, with light scratches inside the feed hopper as pictured; pressure gauge and safety valve calibration verification is the responsibility of the buyer.

Specifications

Instrument type Two-stage high-pressure homogenizer, 3-plunger piston pump

Maximum pressure 120 MPa (1200 bar, about 17,400 psi)

Rated flow 120 L/h

Plungers 3, solid ceramic, 40 mm stroke

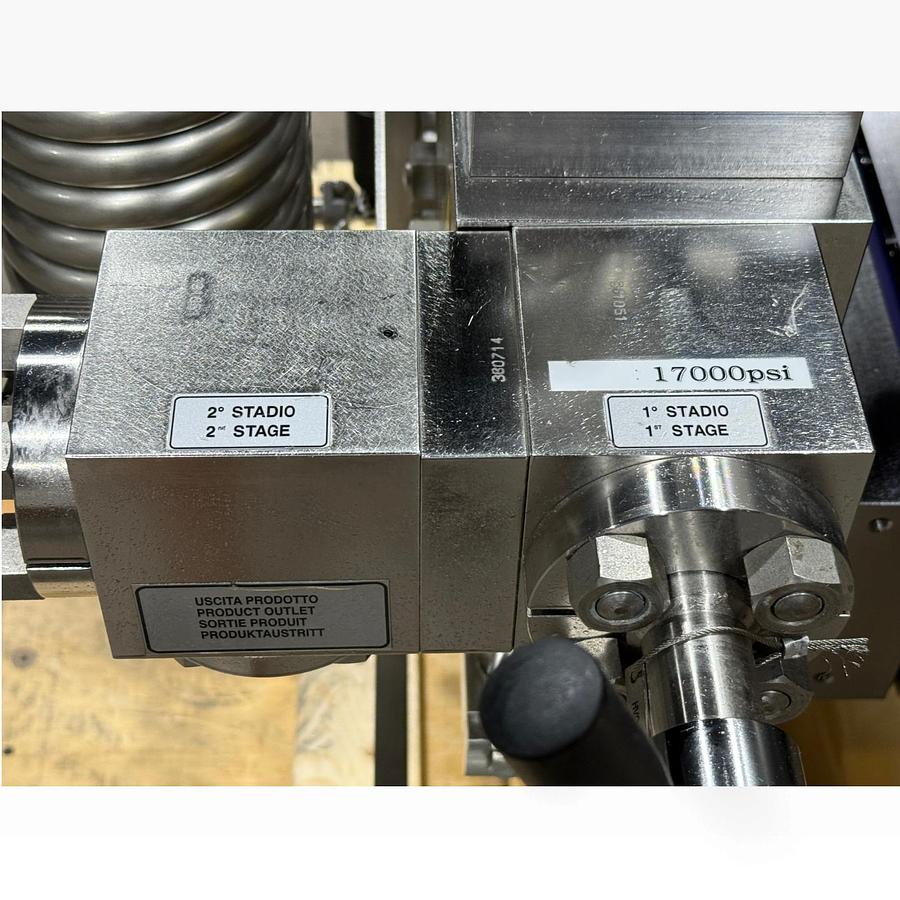

Homogenizing valves Stellite valves; 1st stage sharp-edge rupture valve, 2nd stage flat profile valve; manual T-handle adjustment

Compression block Super duplex stainless steel

Feed system contact parts AISI 316 stainless steel

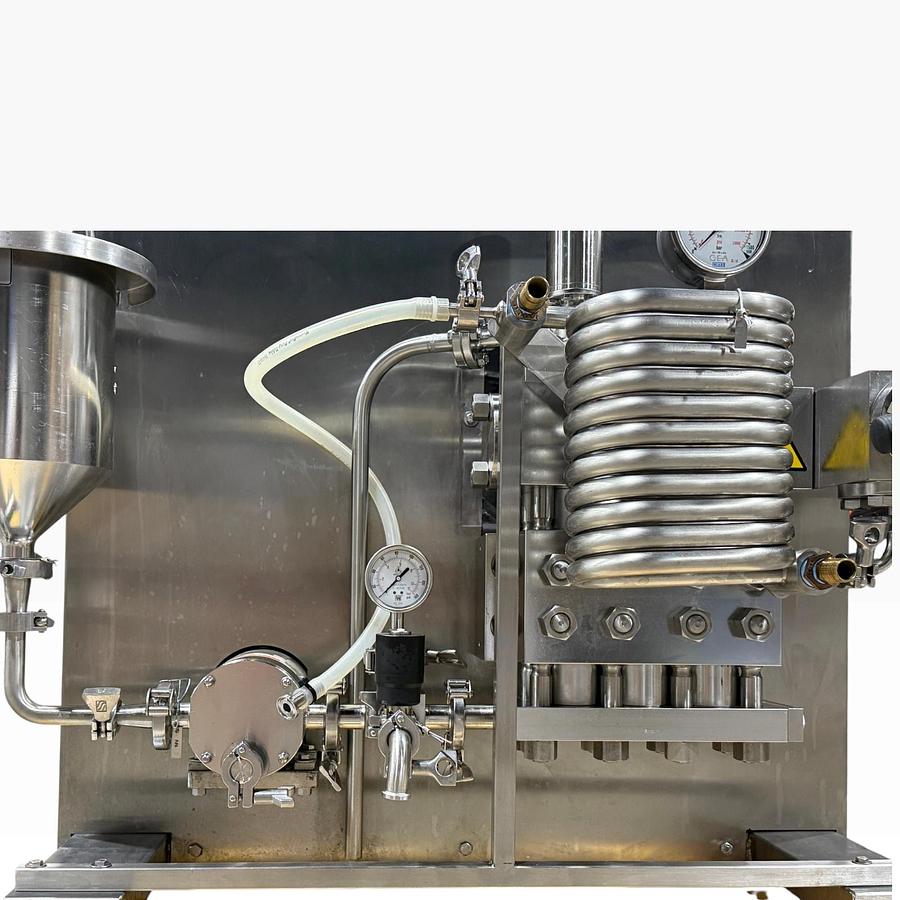

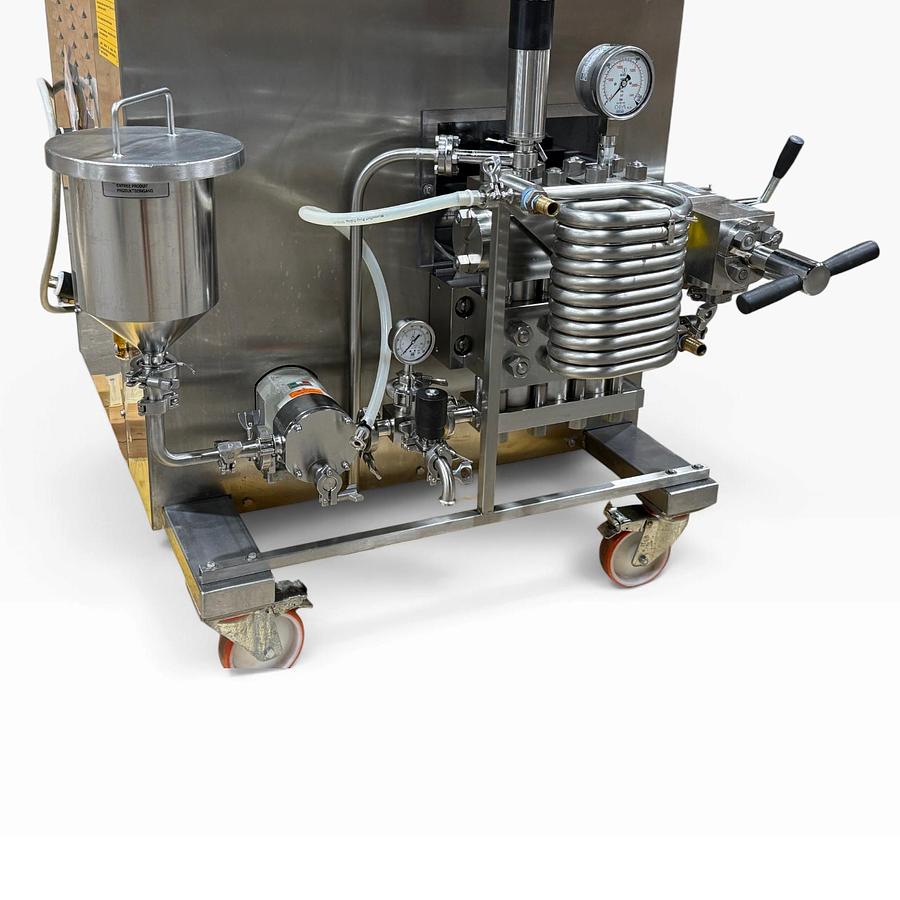

Feed system 4.5 L stainless steel hopper, feed pump with variable speed control

Minimum feed pressure 3 bar (panel marking)

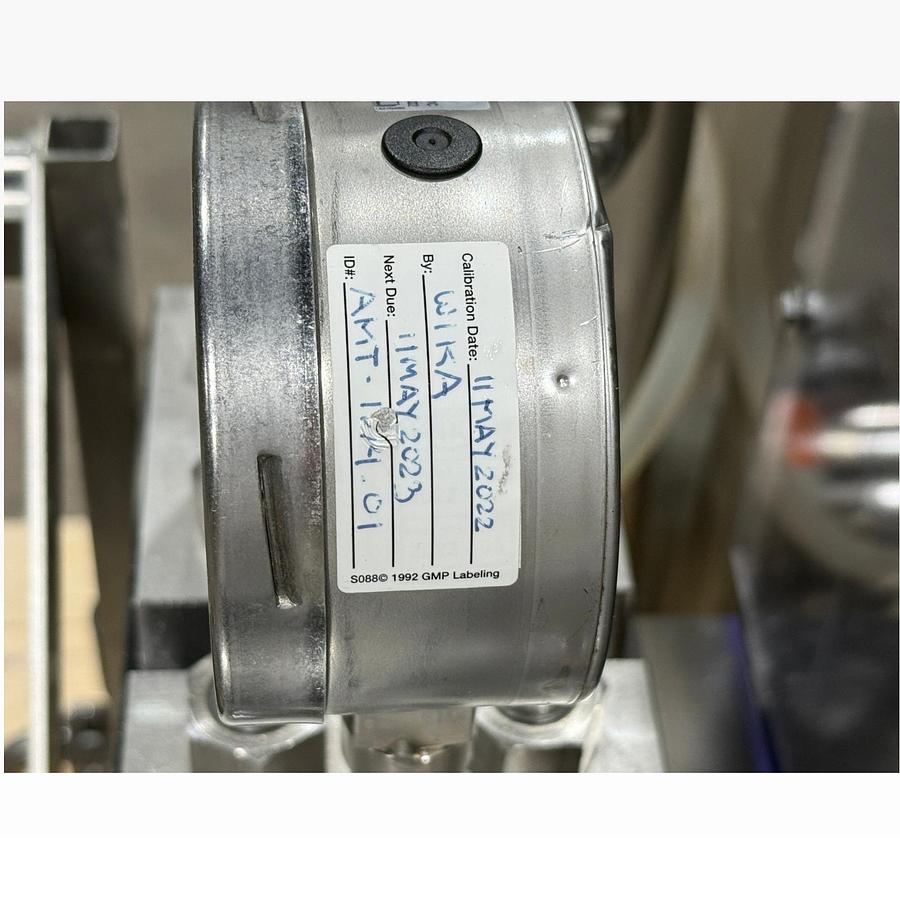

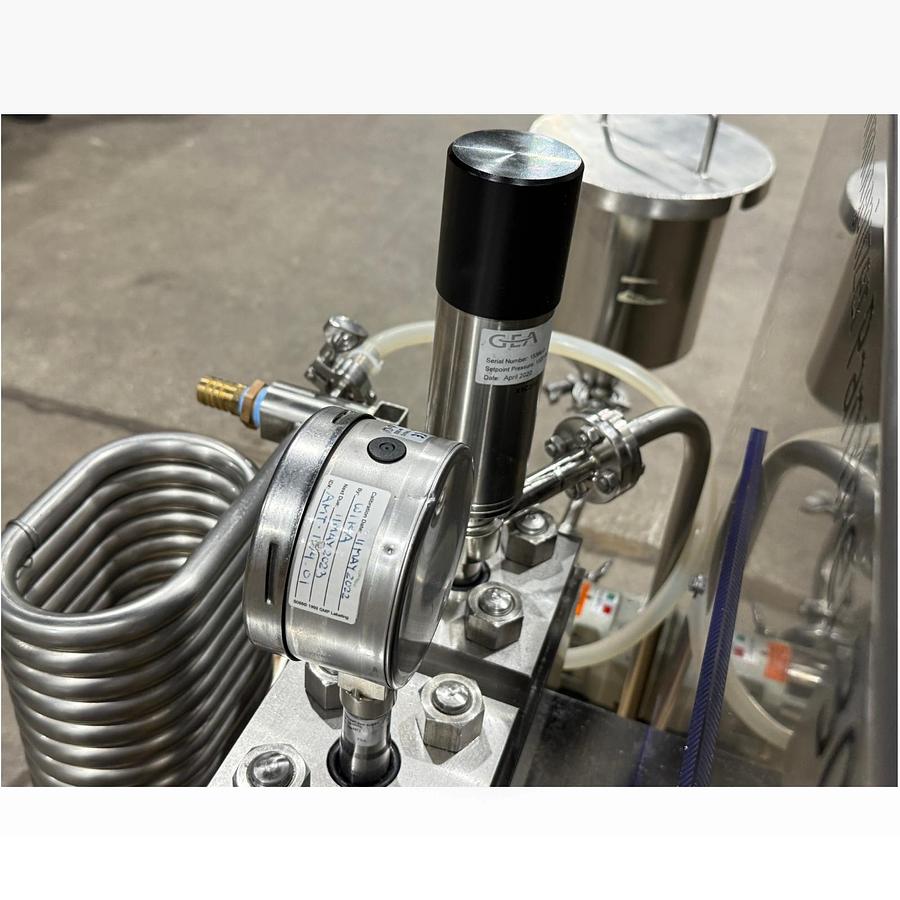

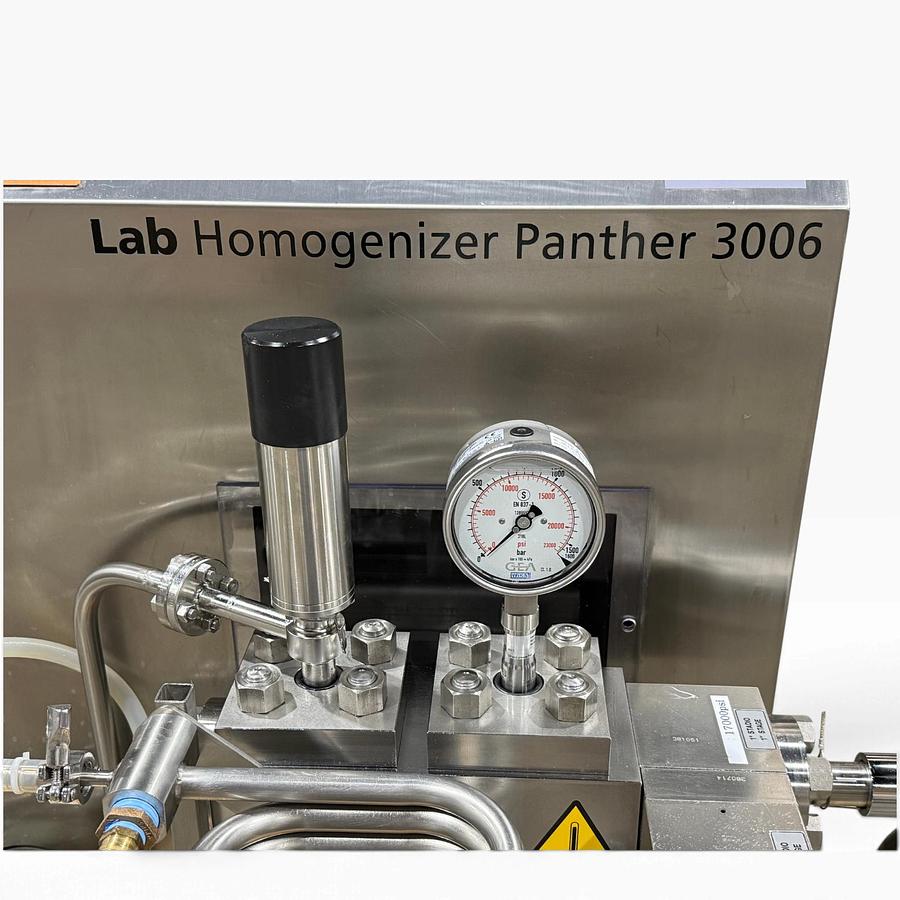

Pressure gauge WIKA, 0 to 1600 bar (0 to 23,000 psi)

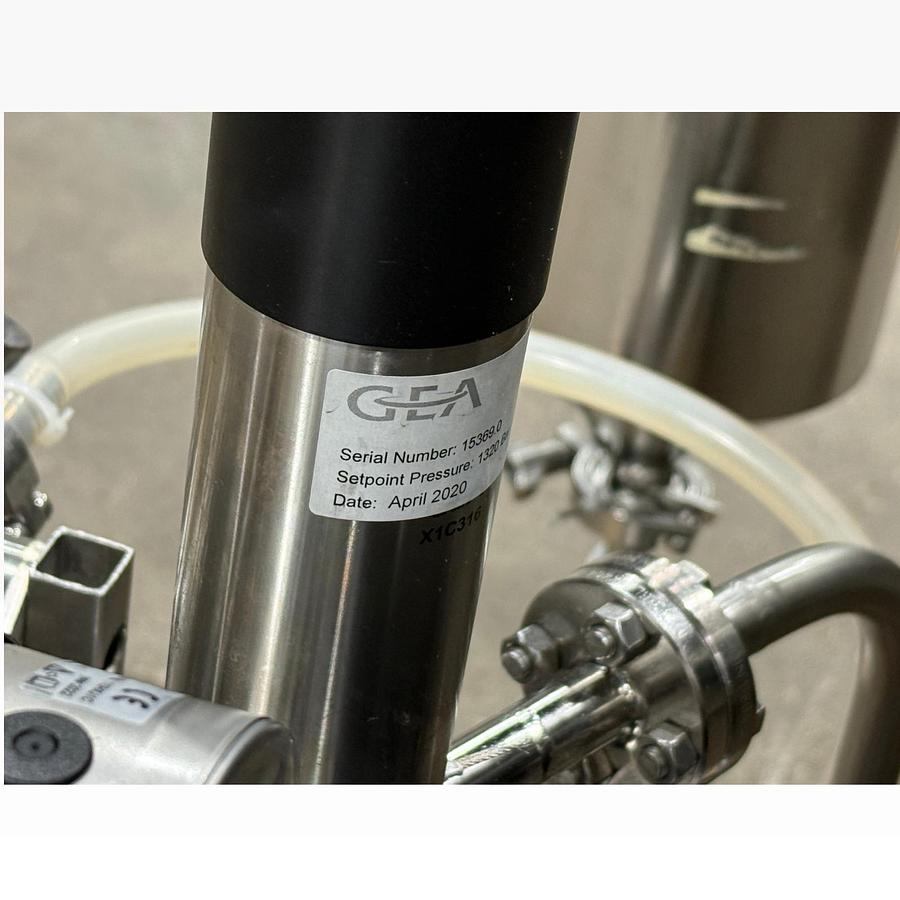

Safety valve setpoint 1320 bar

Product connections Tri-Clamp

Outlet cooling Stainless steel coil heat exchanger with hose barb water connections

Motor power 5.5 kW

Cooling and lubrication water 60 L/h

Lubricating oil ISO VG 150, 3 L

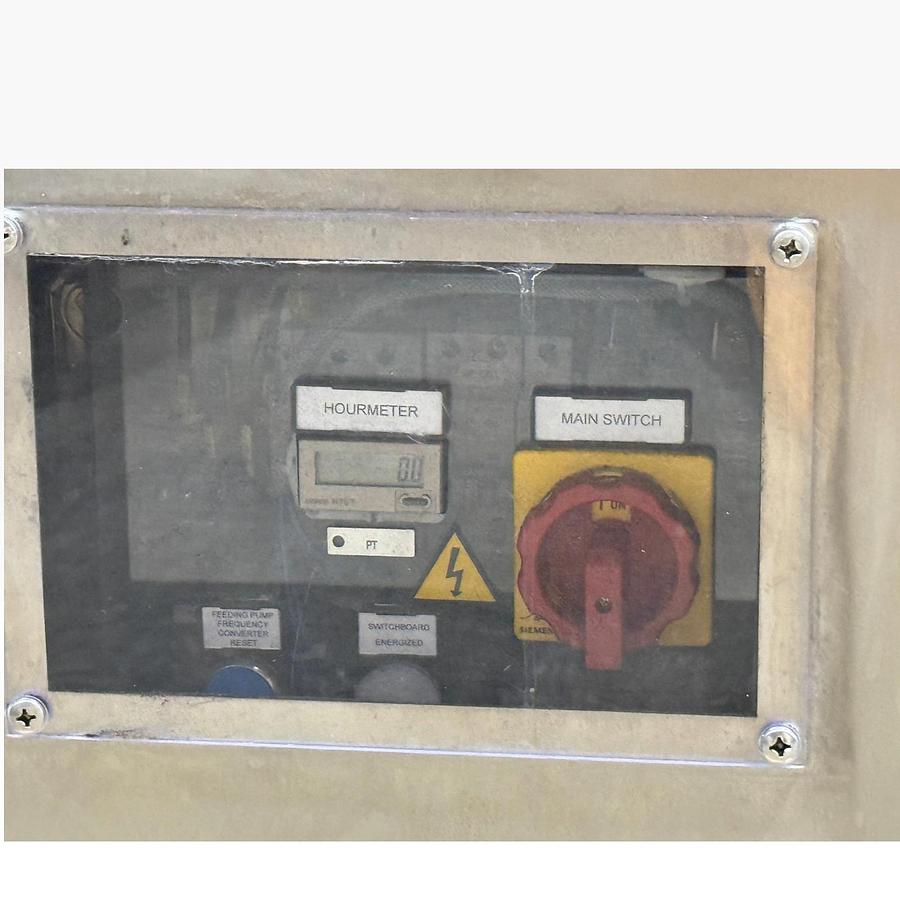

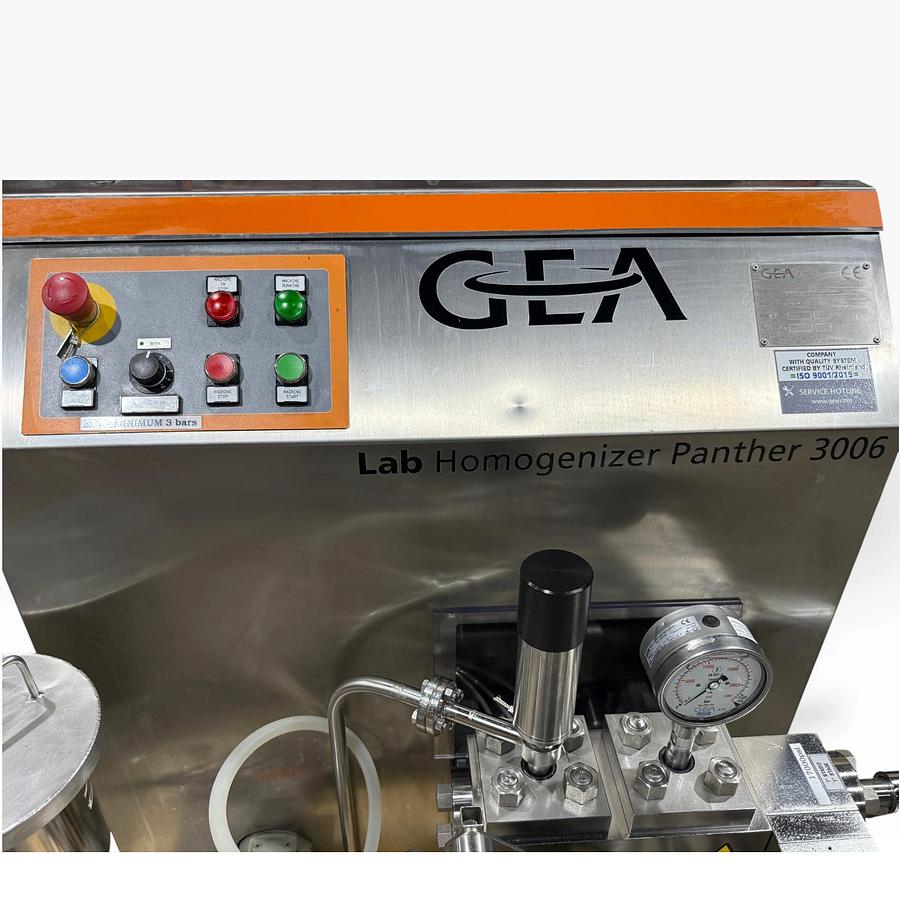

Controls Emergency stop, machine start and stop, feed pump speed dial, hour meter, main switch

Base Stainless steel frame on four locking casters

Net weight 560 kg (1235 lb)

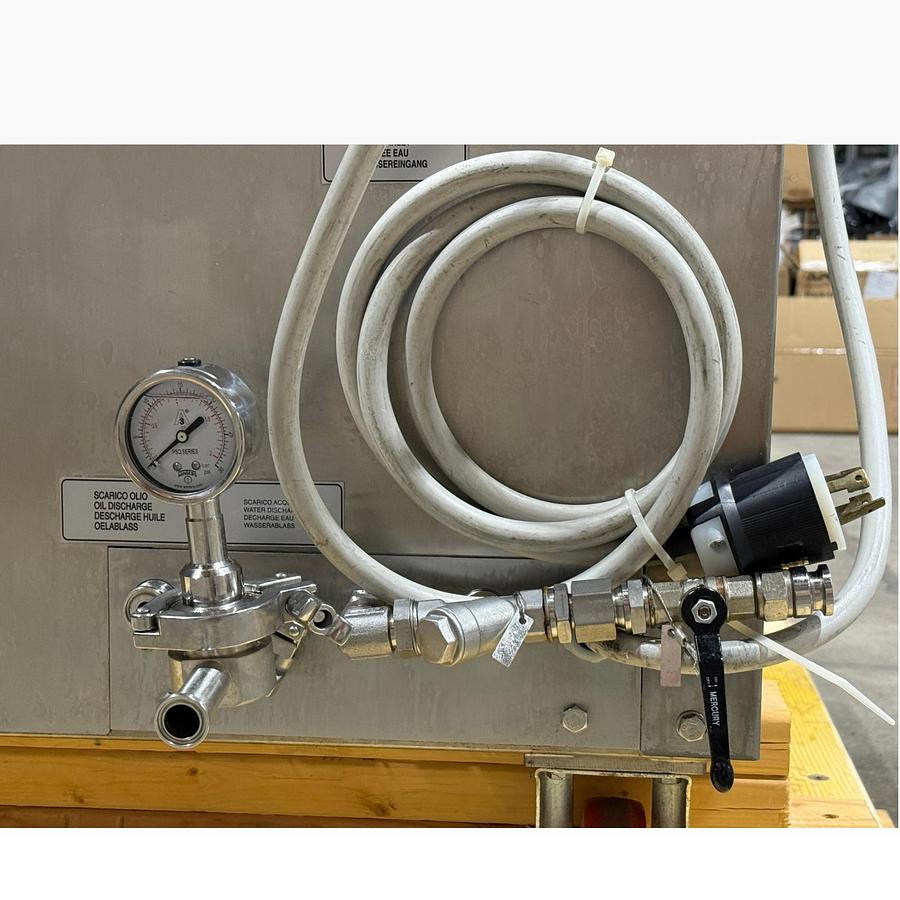

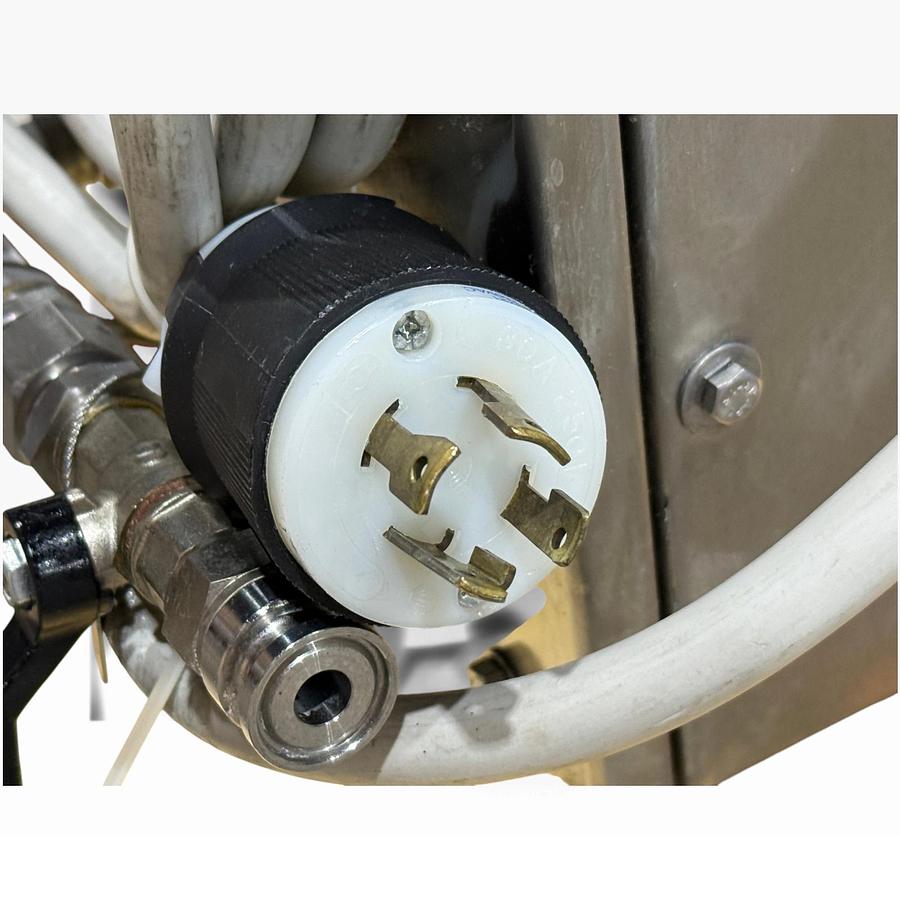

Power Three-phase, 5.5 kW motor; 4-prong 250 V twist-lock plug (L15-30 style); electrical rating not shown on the ID plate. Verify voltage before purchase.

Specs from manufacturer literature for reference. Verify against your application.
