Huber Ministat 240 Refrigerated Heating Circulator Bath -45 to 200°C | Pilot ONE

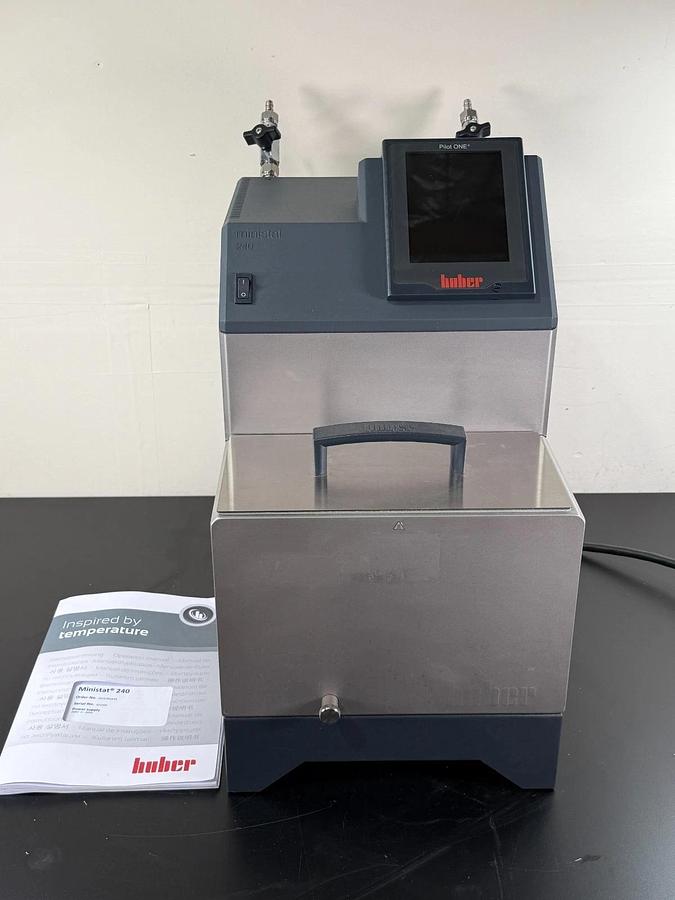

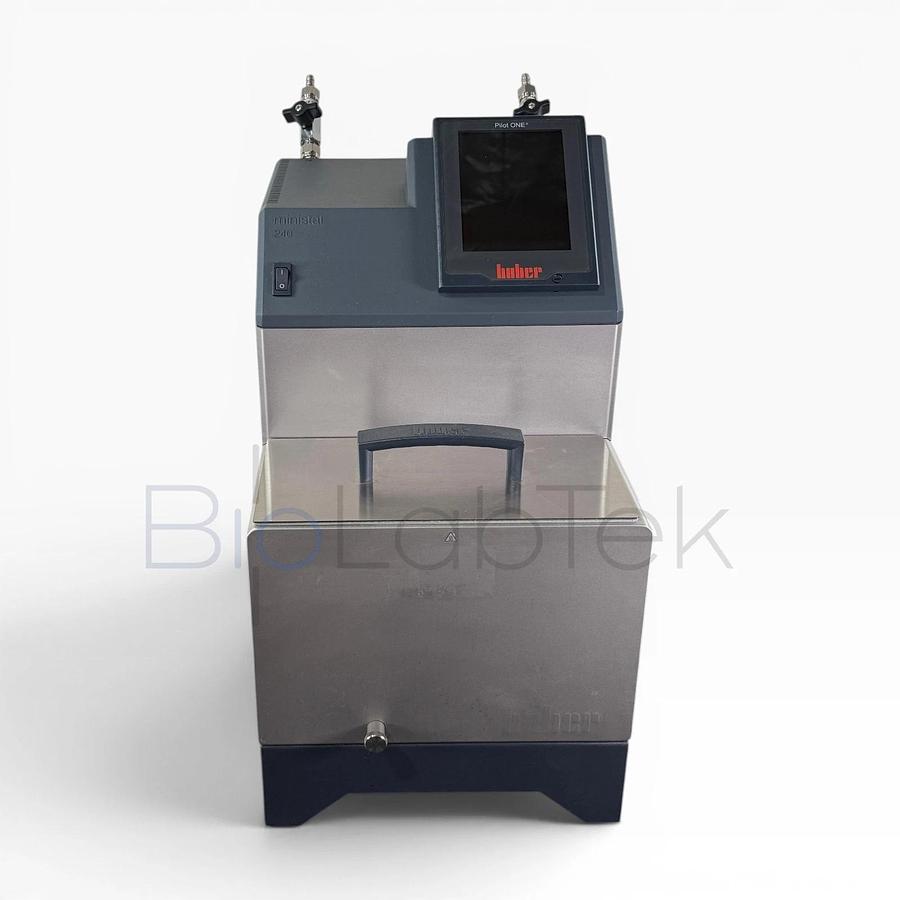

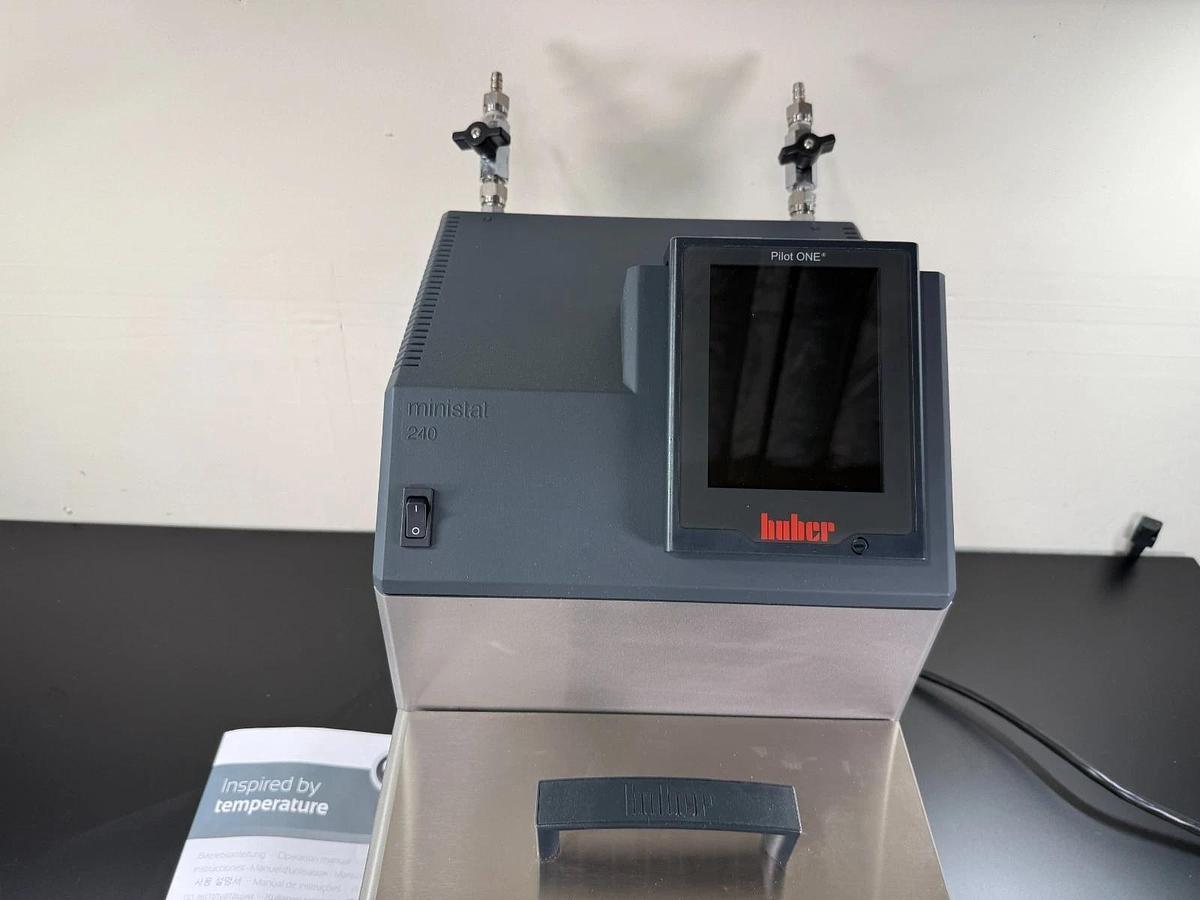

BioLabTek eBay Template COOLING & REFRIGERATION: Recirculators Huber Ministat 240 Refrigerated Heating Circulator Bath Refrigerated heating circulator bath that controls fluid temperature from -45 to 200°C with pressure and suction circulation and a Pilot ONE touchscreen controller. QC PASS Tested & Working At a glance Manufacturer Huber Model Ministat 240 Part / Catalog # 2016.0018.01 Serial # S433206 Condition Lightly Used, Excellent What's Included Huber Ministat 240 Refrigerated Heating Circulator Bath with Pilot ONE controller and bath cover Operation manual Nothing else is included unless shown in the photos Condition & Testing Unit powers on and heating, cooling, and circulation functions tested and operating normally; the exterior is clean with no notable cosmetic damage; calibration verification is the responsibility of the buyer. Specifications Operating temperature range -45 to 200 °C Temperature stability ±0.02 K (at -10 °C) Controller / display Pilot ONE, 5.7" colour touchscreen Internal temperature sensor Pt100 External sensor connection Pt100 Digital interfaces Ethernet, USB (host and device), RS232 Safety classification (DIN 12876) III / FL Heating power 2.1 kW at 240 V / 2.0 kW at 230 V / 1.8 kW at 220 V Cooling power 0.6 kW at 20 °C, 0.55 kW at 0 °C, 0.42 kW at -10 °C, 0.35 kW at -20 °C, 0.125 kW at -30 °C, 0.05 kW at -40 °C Refrigeration machine Air-cooled, natural refrigerant Refrigerant R-290 (propane), 0.099 kg Global warming potential (GWP) 3 UN number UN 3358 High-pressure rating (PS HD) 22 bar Low-pressure rating (PS ND) 19 bar Pressure pump Yes, max 22 l/min, max 0.7 bar Suction pump Yes, max 16 l/min, max 0.4 bar Pump connection M16x1 male Max permissible kinematic viscosity 50 mm²/s Bath volume 5.5 l Min filling capacity 3.5 l Bath capacity with displacement rack 2.8 l Bath opening (W x D) 205 x 85 mm Bath depth 157 mm Sound pressure level 59 dB(A) Overall dimensions (W x D x H) 300 x 465 x 516 mm Net weight 41 kg Power supply 208 V, 2~, 60 Hz Max current 10.5 A Degree of protection IP20 Ambient temperature range 5 to 40 °C Specs from manufacturer literature for reference. Verify against your application. Terms & Conditions Payment We accept most payment types and work with your organization's accounting requirements. Contact us if you need a formal quote or to procure with a PO. Shipping Items ship within 1 to 2 business days after cleared payment. We ship via USPS, FedEx, UPS, or freight, to the contiguous USA and worldwide. Worldwide buyers are responsible for customs and duty import charges. Need expedited service or billing to your own FedEx or UPS account? Tell us at purchase. You may arrange your own shipping through your own carrier on request. Return Policy 60-day returns on all products from time of delivery. If anything is not right, contact us first. We want you fully satisfied. Why BioLabTek We power on and function-test, then document what we saw Photos show the exact unit you receive Instruments packed to survive the carrier POs and formal quotes welcome for academic and corporate buyers BioLabTek |  Scientific Equipment Specialists  |  © 2026 BioLabTek
