Watson-Marlow 530UN/R2 Cased Peristaltic Pump | 520R2 Head IP66 NEMA 4X

Cased peristaltic pump fitted with the 520R2 pumphead and the sealed N module housing, wired for 100-120 V single phase, unused with 0 hours on the run hour counter.

New Open Box

At a glance:

Manufacturer | Watson-Marlow

Model | 530UN/R2

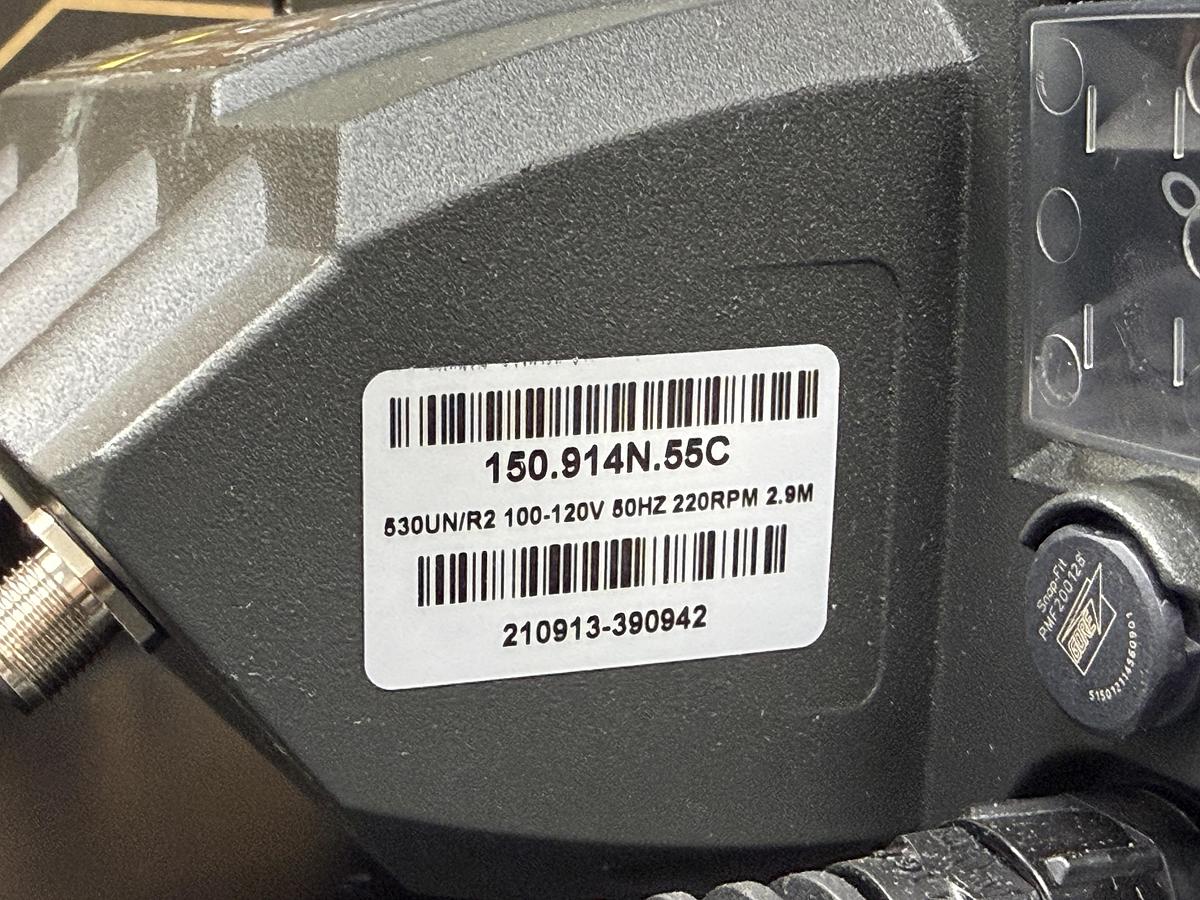

Part / Catalog # | 150.914N.55C

Serial # | 210913-390942

Year / DOM | 2021

Condition | New, Open Box

What's Included

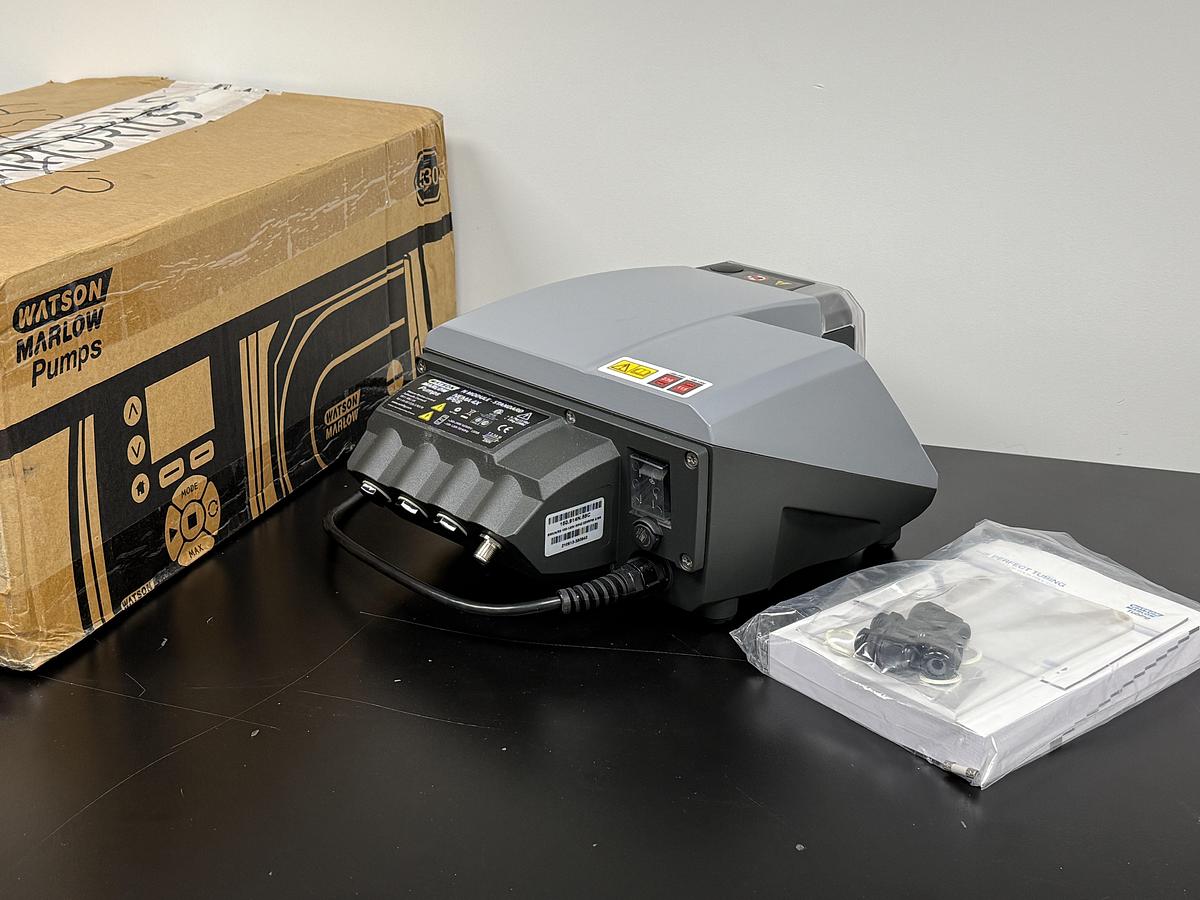

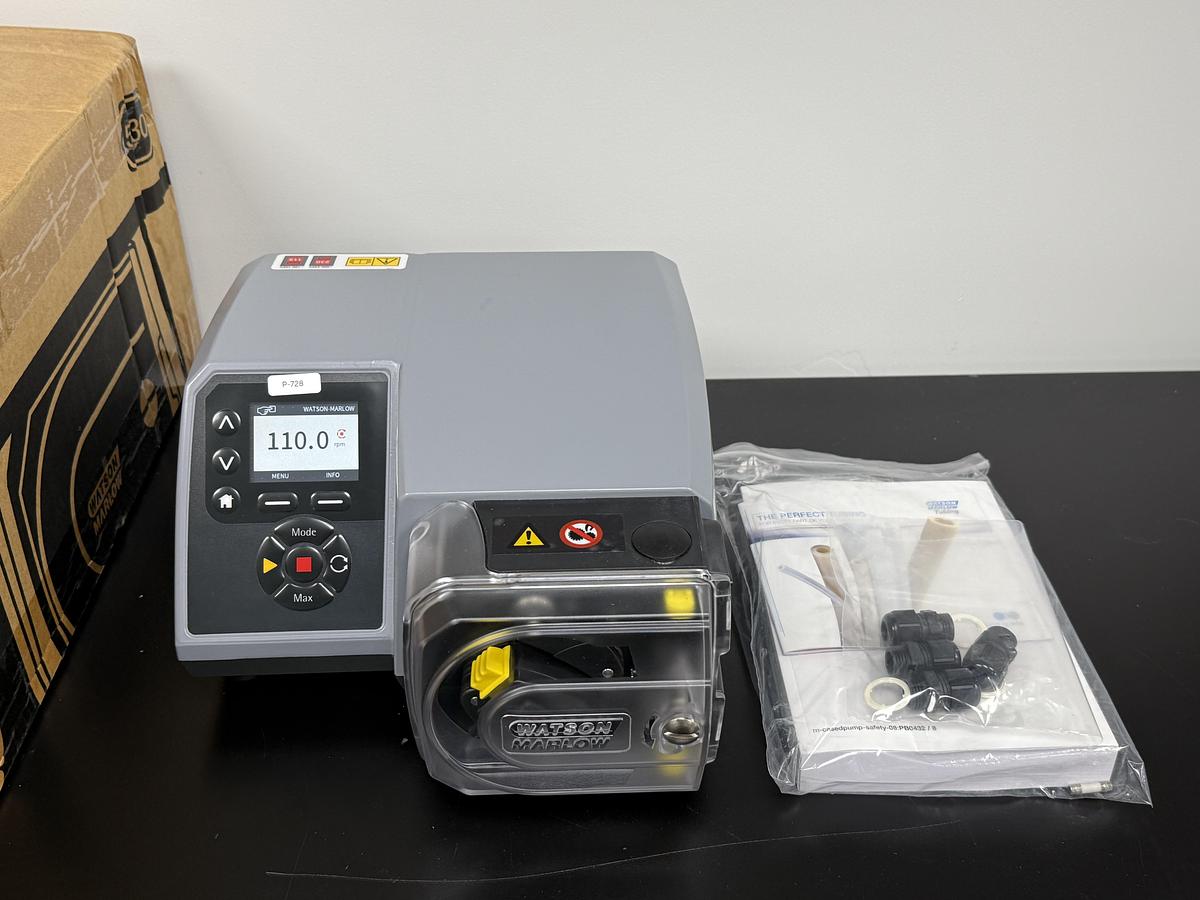

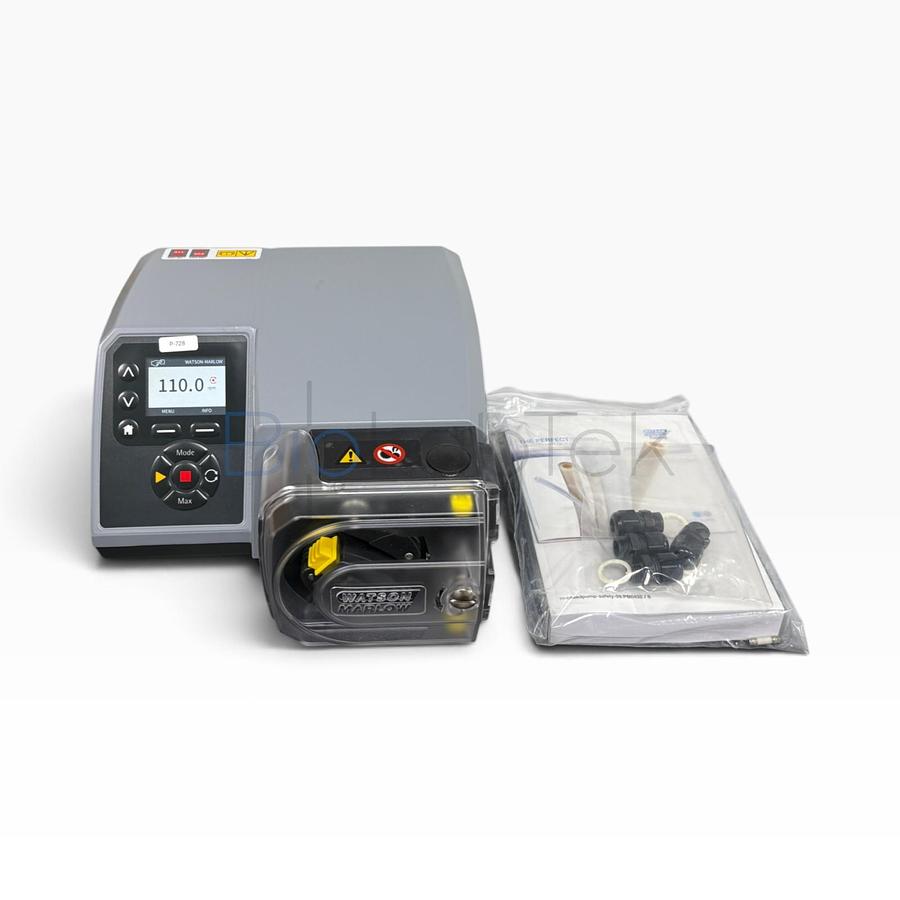

Watson-Marlow 530UN/R2 cased peristaltic pump with 520R2 pumphead

Sealed accessory bag with tubing connectors, sealing washers and printed literature

Original Watson-Marlow carton

Nothing else is included unless shown in the photos

Condition Details

New open box and unused; the pump menu reports 0 hrs run time; the accessory bag is sealed and the exterior is clean; flow calibration for your own tubing is the responsibility of the buyer.

Specifications

Pump type Cased peristaltic pump

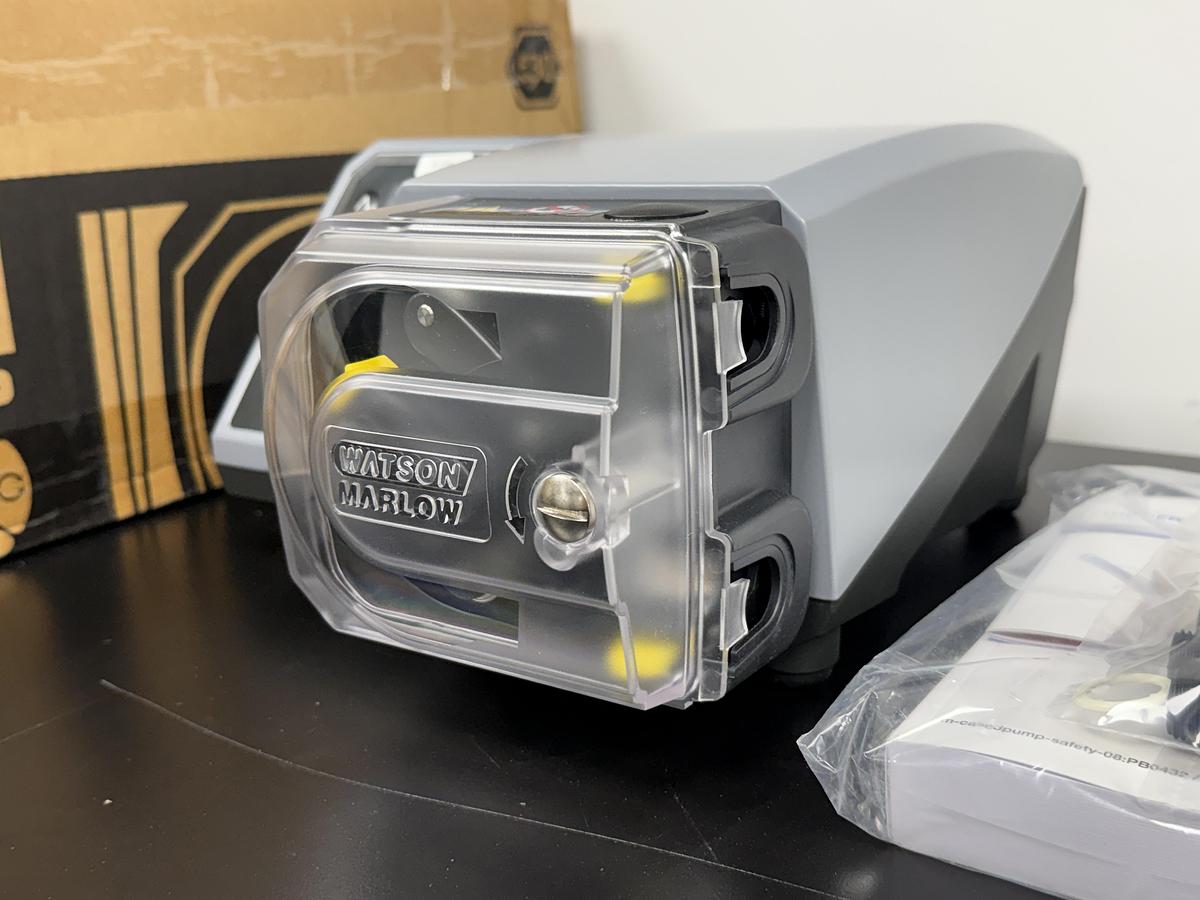

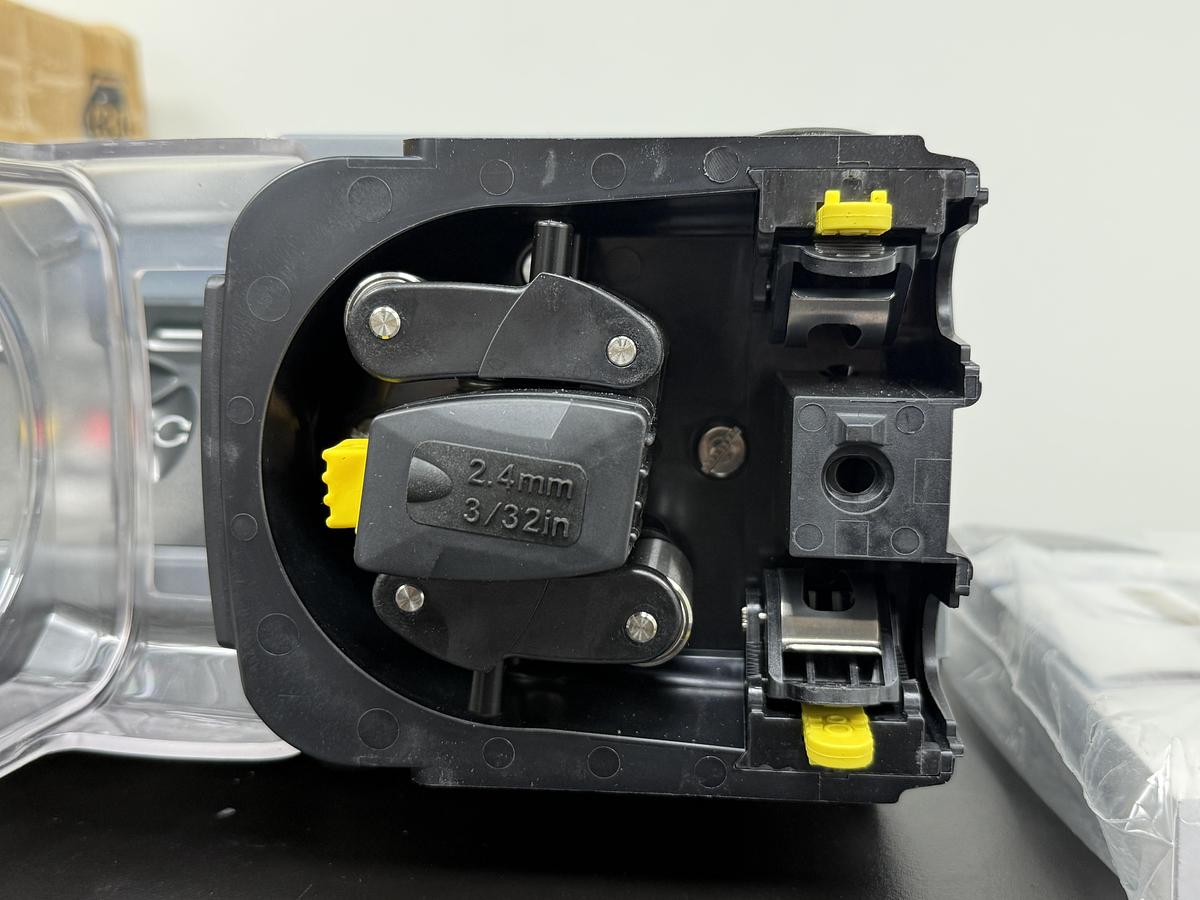

Pumphead 520R2

Speed range 0.1 to 220 rpm in 0.1 rpm increments

Flow range 0.04 to 3500 mL/min with 520R2 head

Tubing bore sizes 1.6, 3.2, 4.8, 6.4, 8.0, 9.6 mm

Tubing wall thickness 2.4 mm

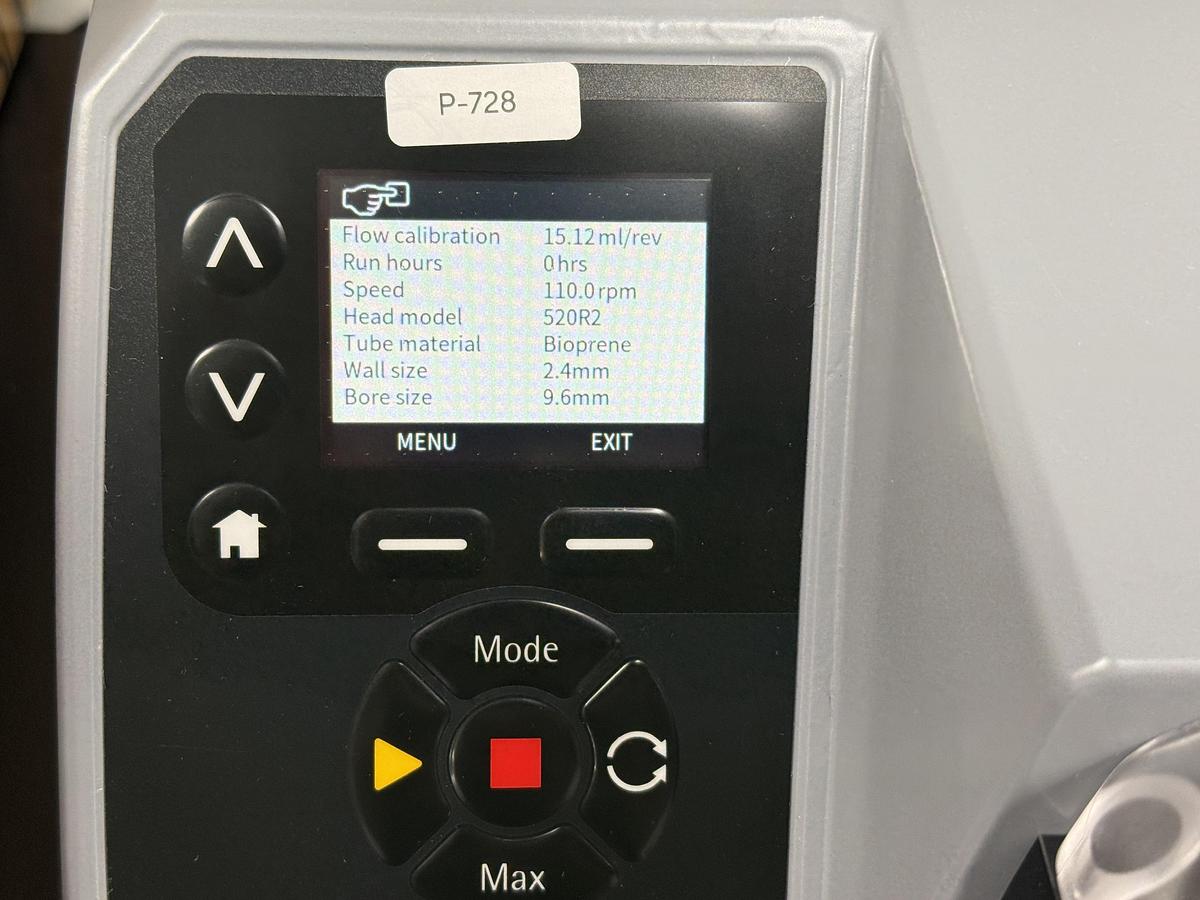

Display Backlit color screen with keypad, Mode and Max keys

Control features Flow calibration in mL/rev, run hour counter, reversible direction

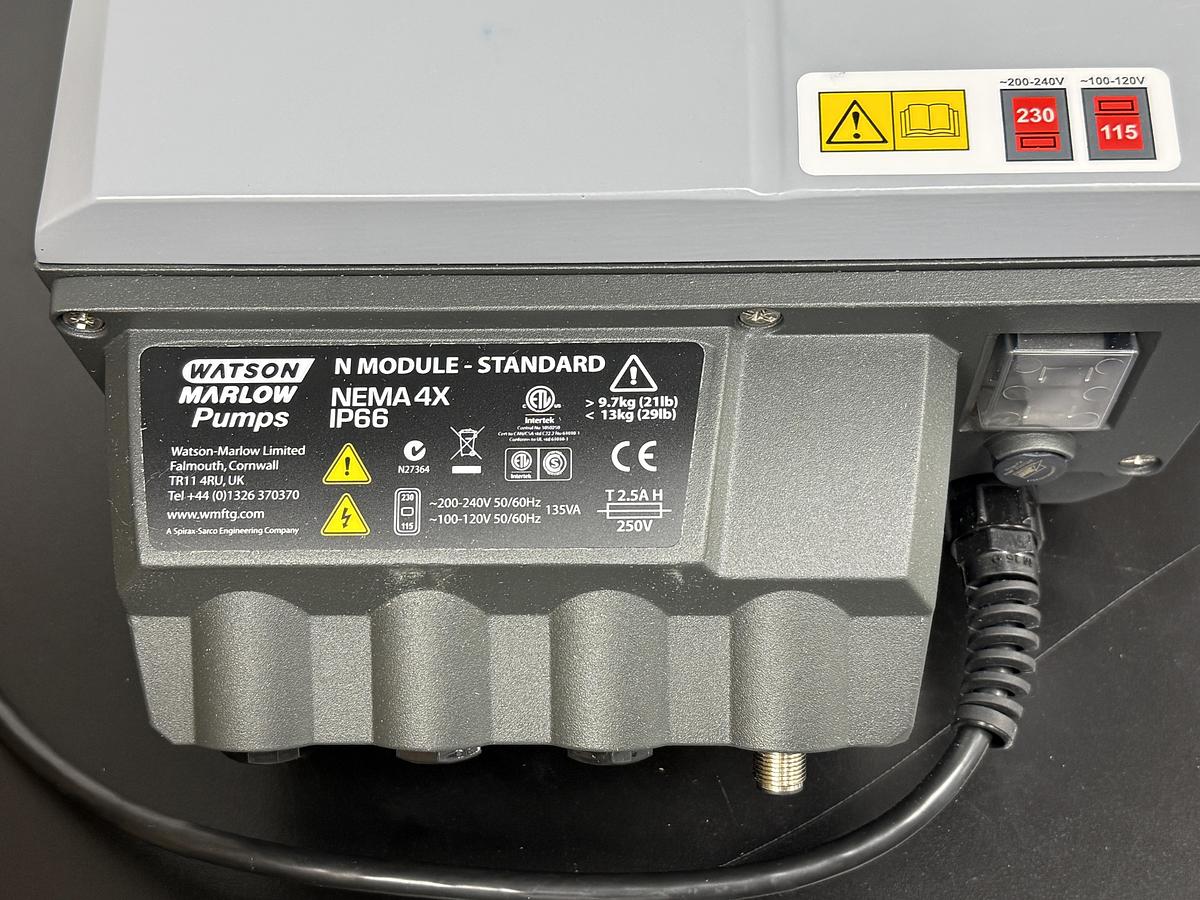

Enclosure rating IP66, NEMA 4X

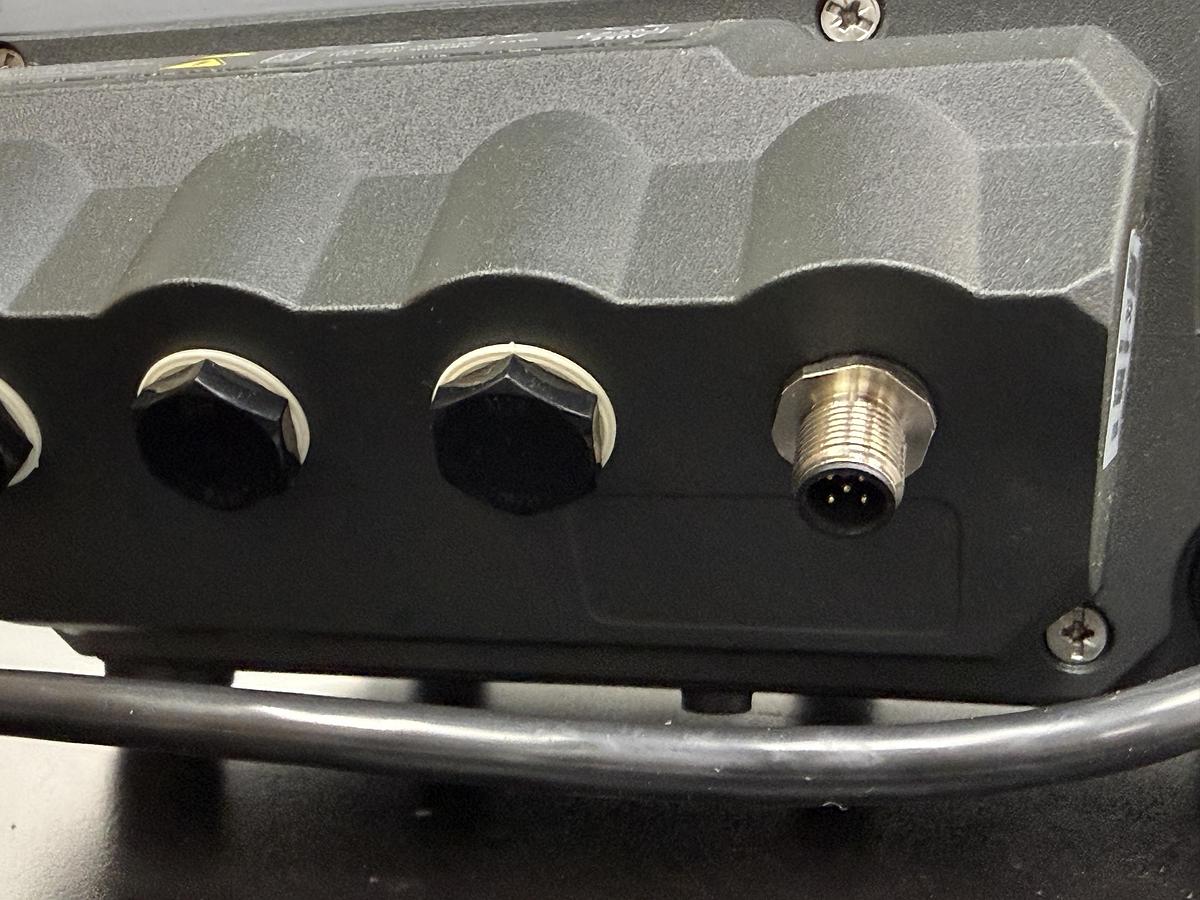

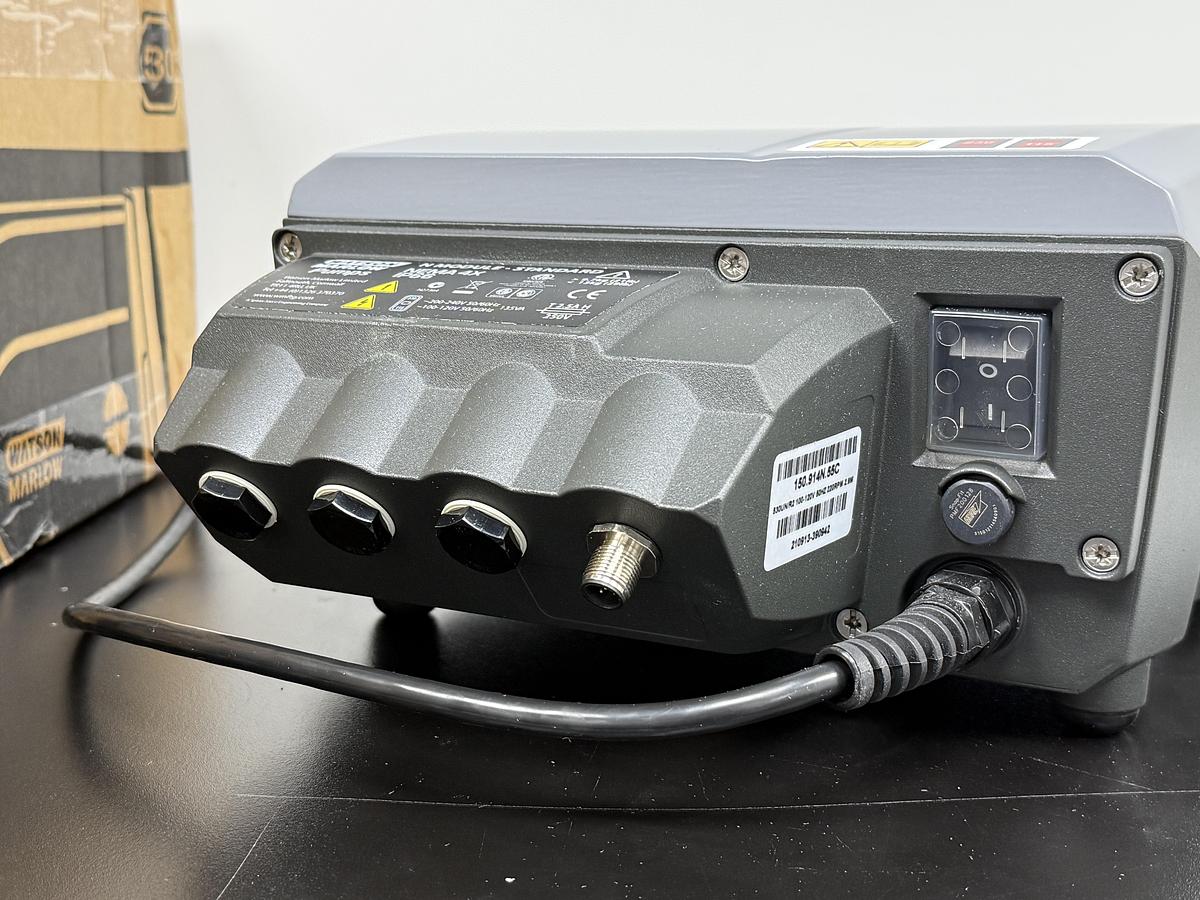

Remote connections M12 connector plus three sealed cable gland entries

Fuse T2.5 A H 250 V

Weight 9.7 to 13 kg (21 to 29 lb) per rear label

Power 100-120 VAC 50/60 Hz, 135 VA, single phase, voltage selector set to 115. Verify voltage before purchase.

Specs from manufacturer literature for reference. Verify against your application.
