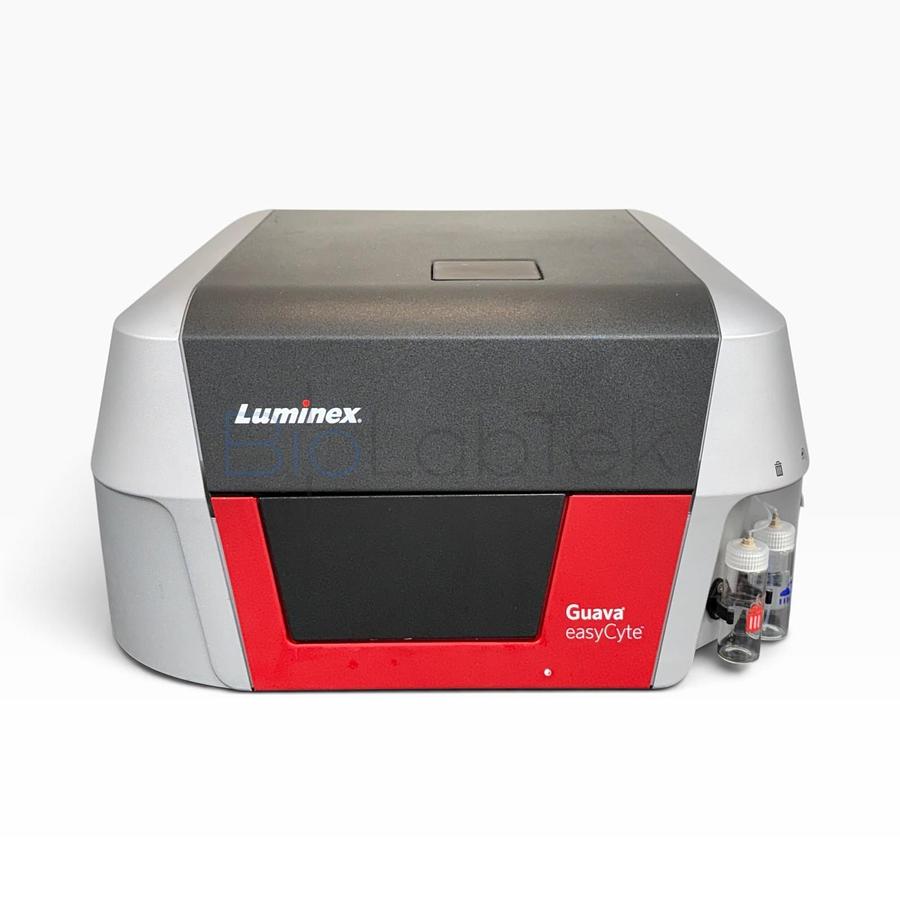

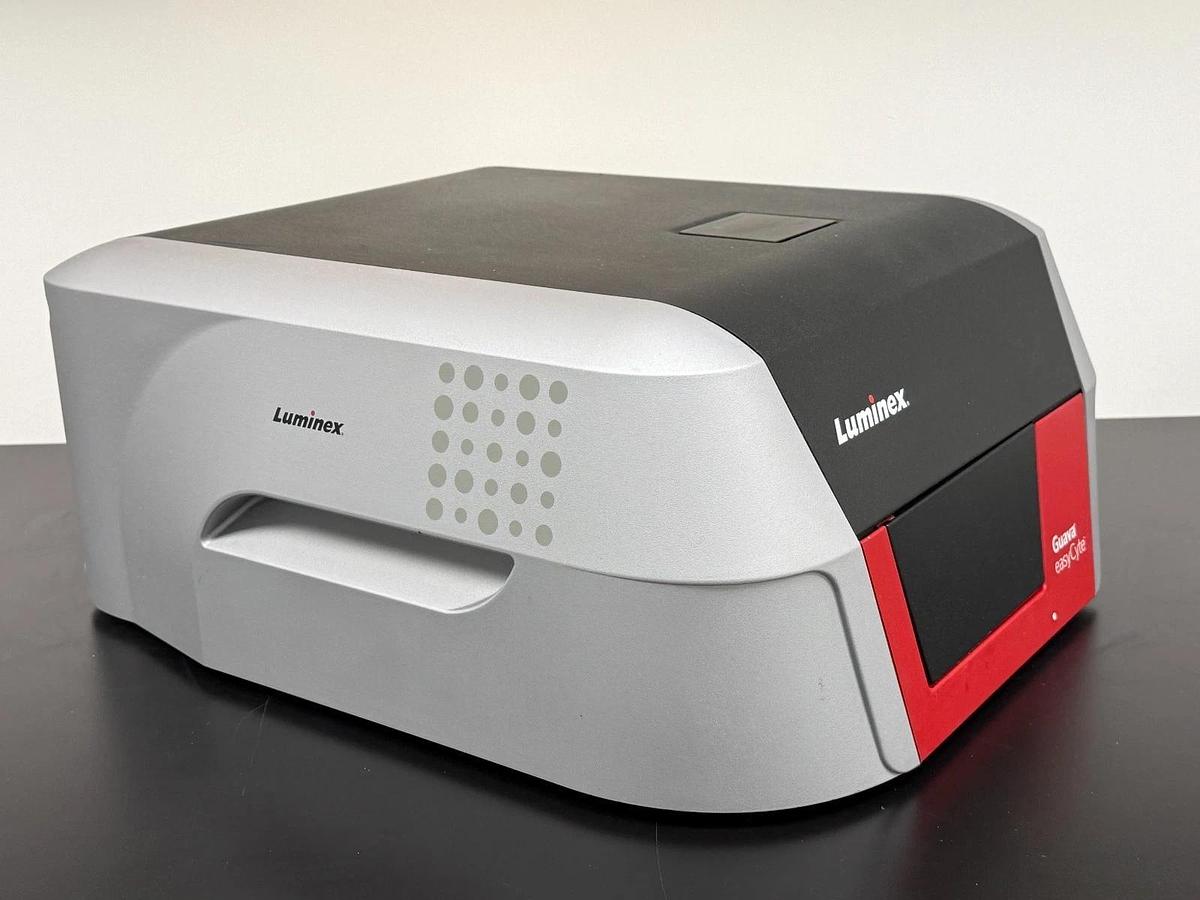

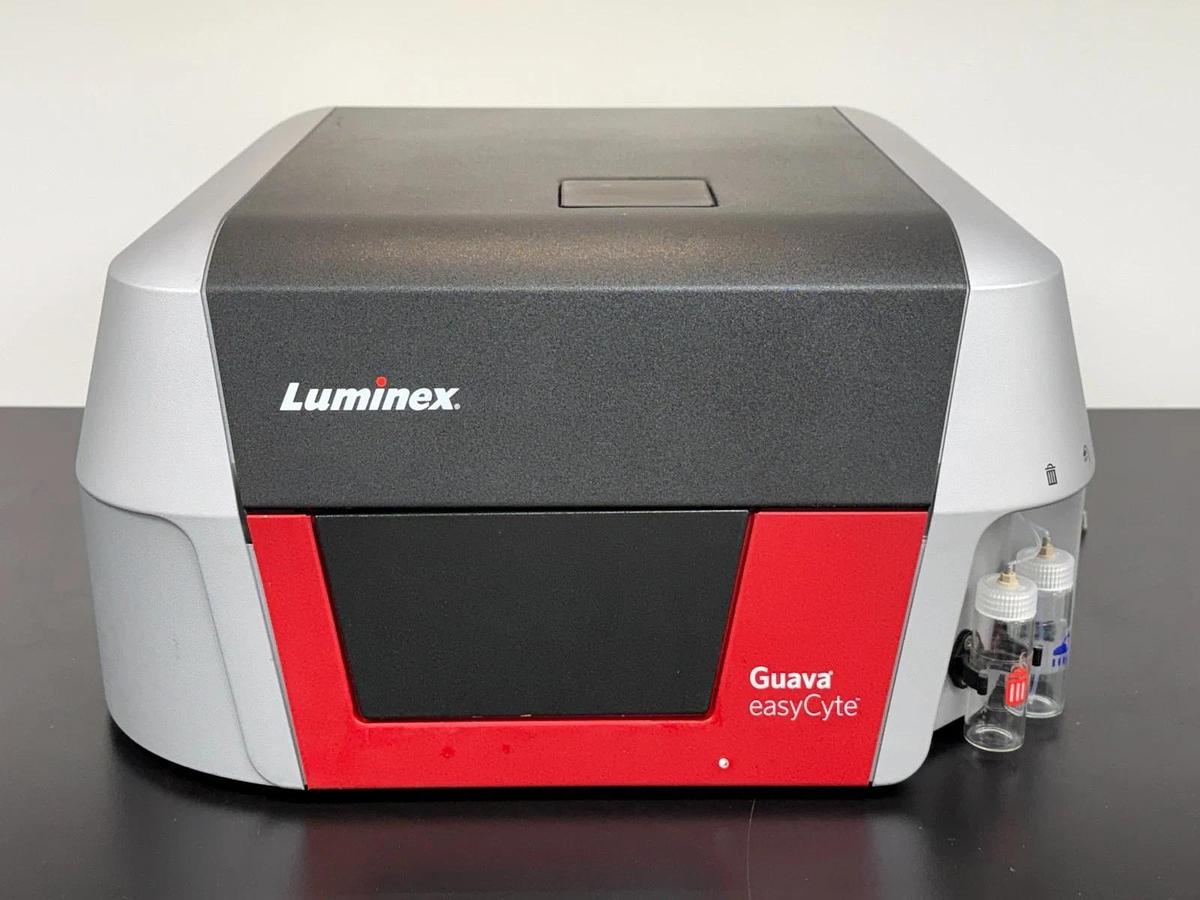

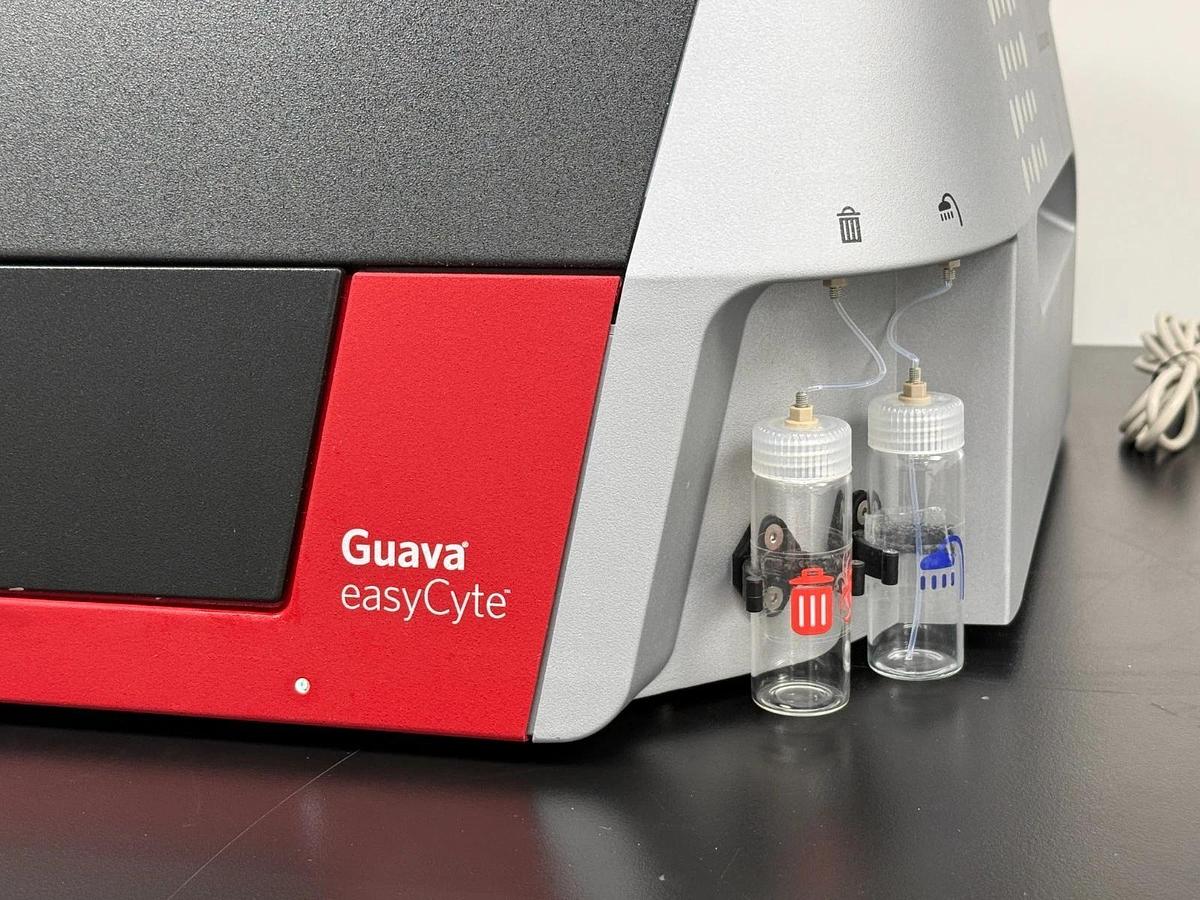

Luminex Guava easyCyte 5 HT Flow Cytometer | Benchtop 96-Well Microcapillary

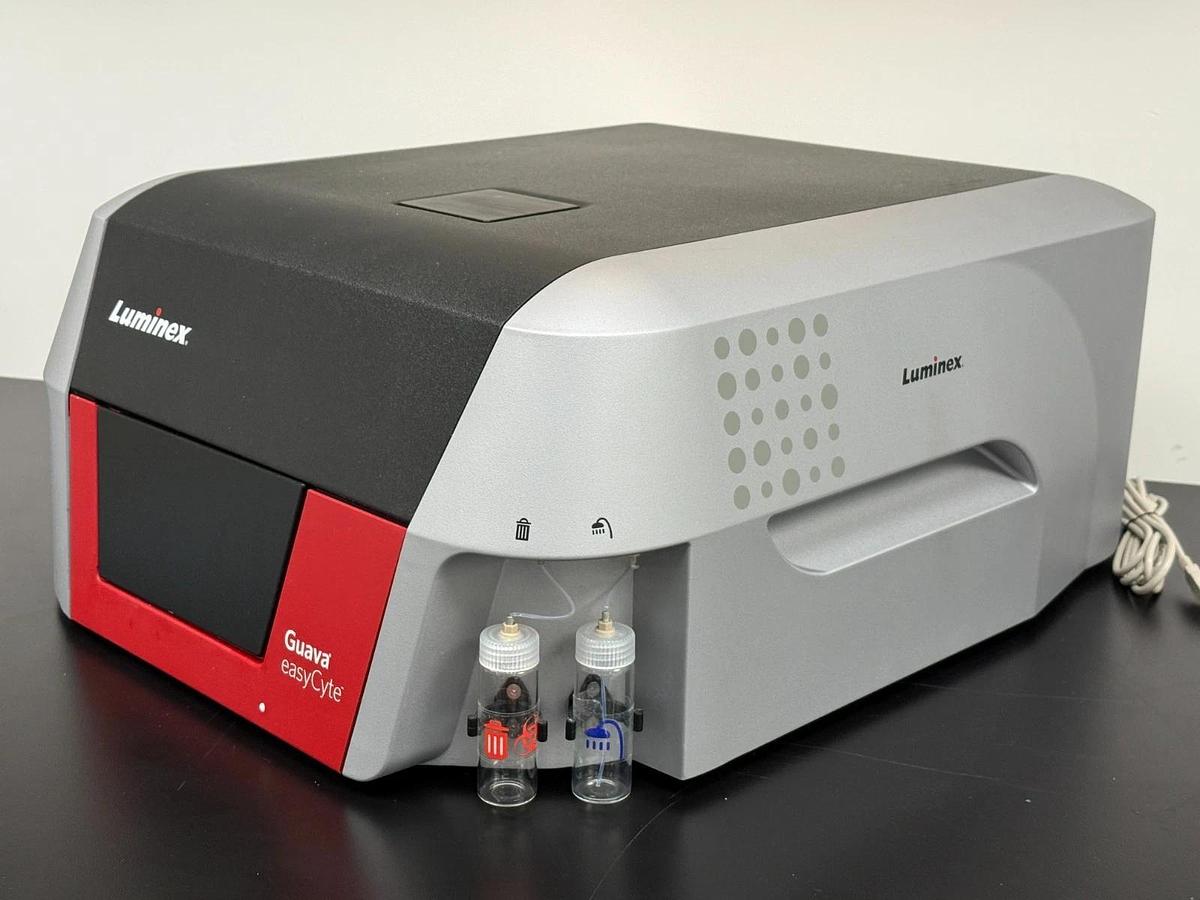

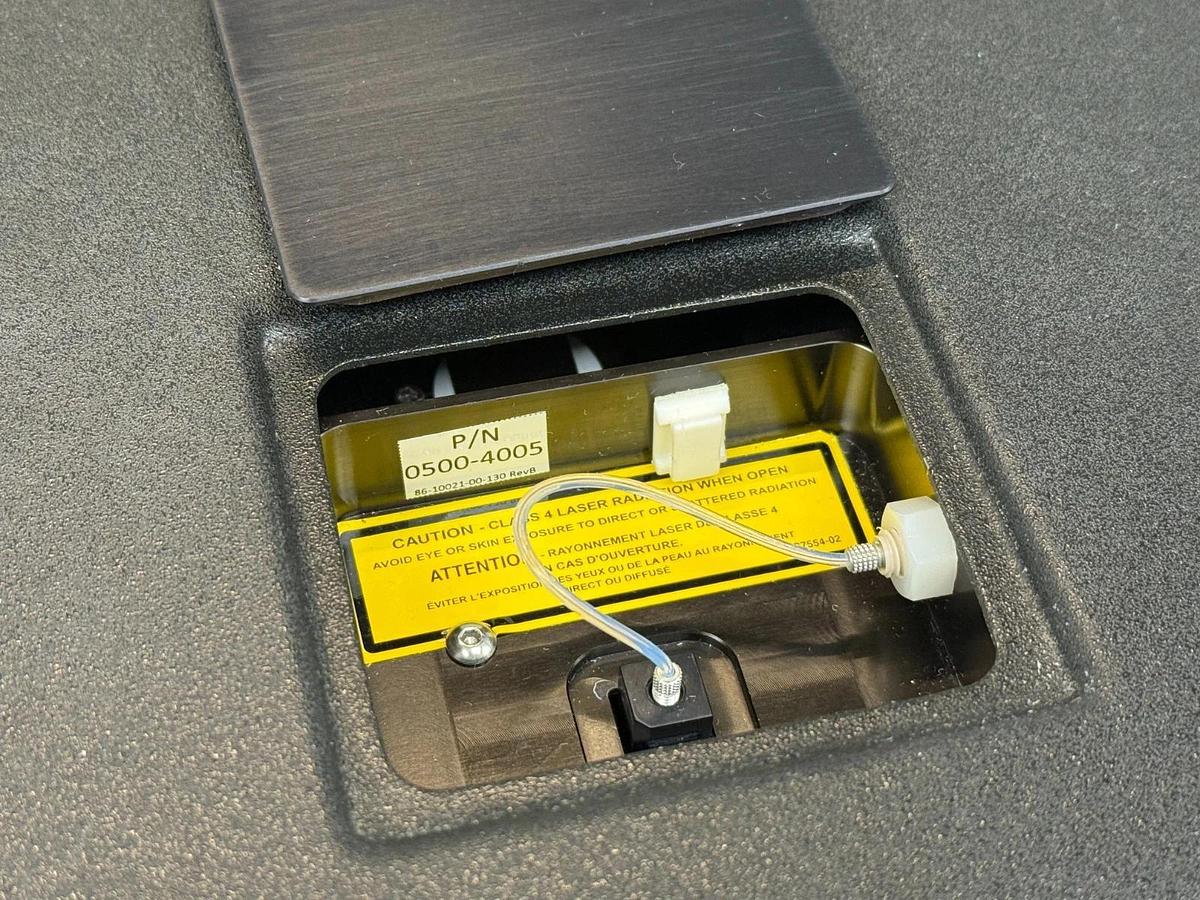

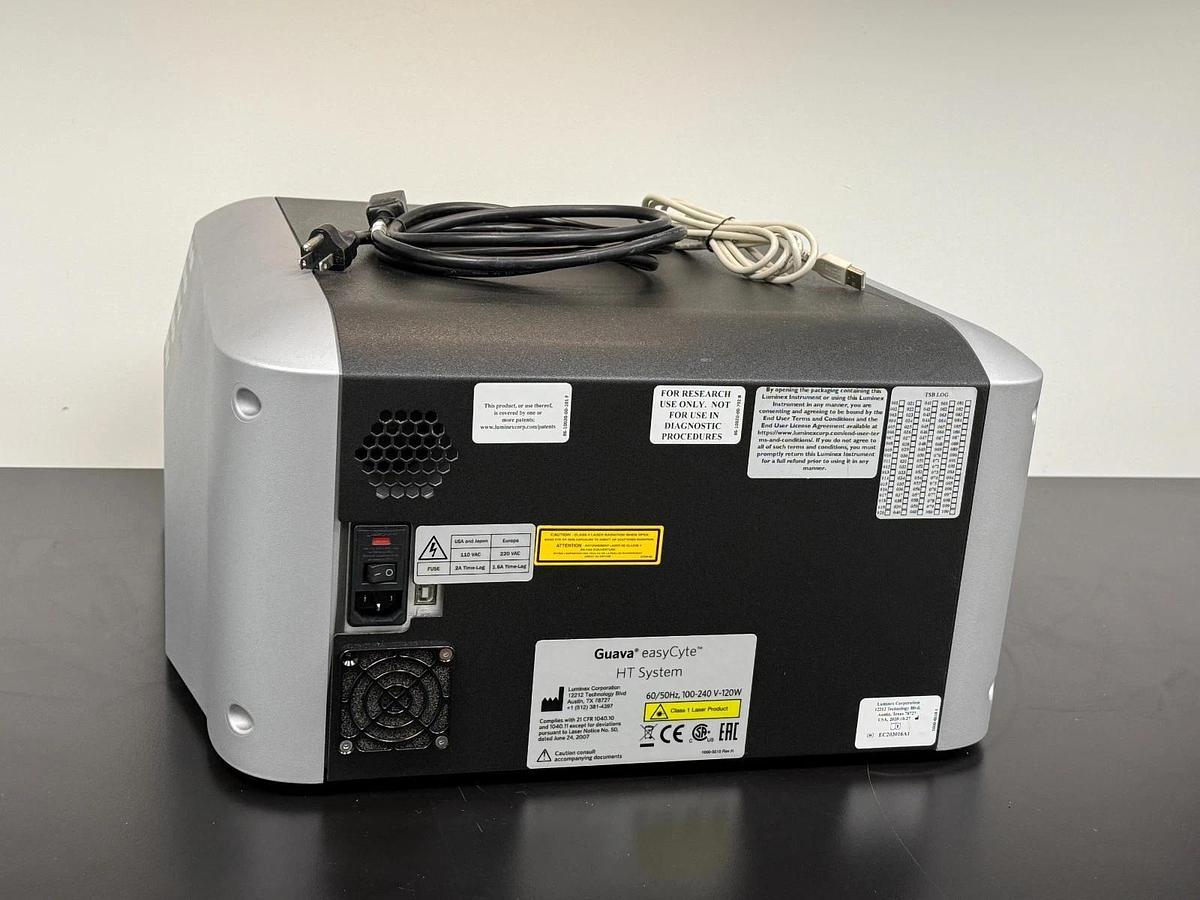

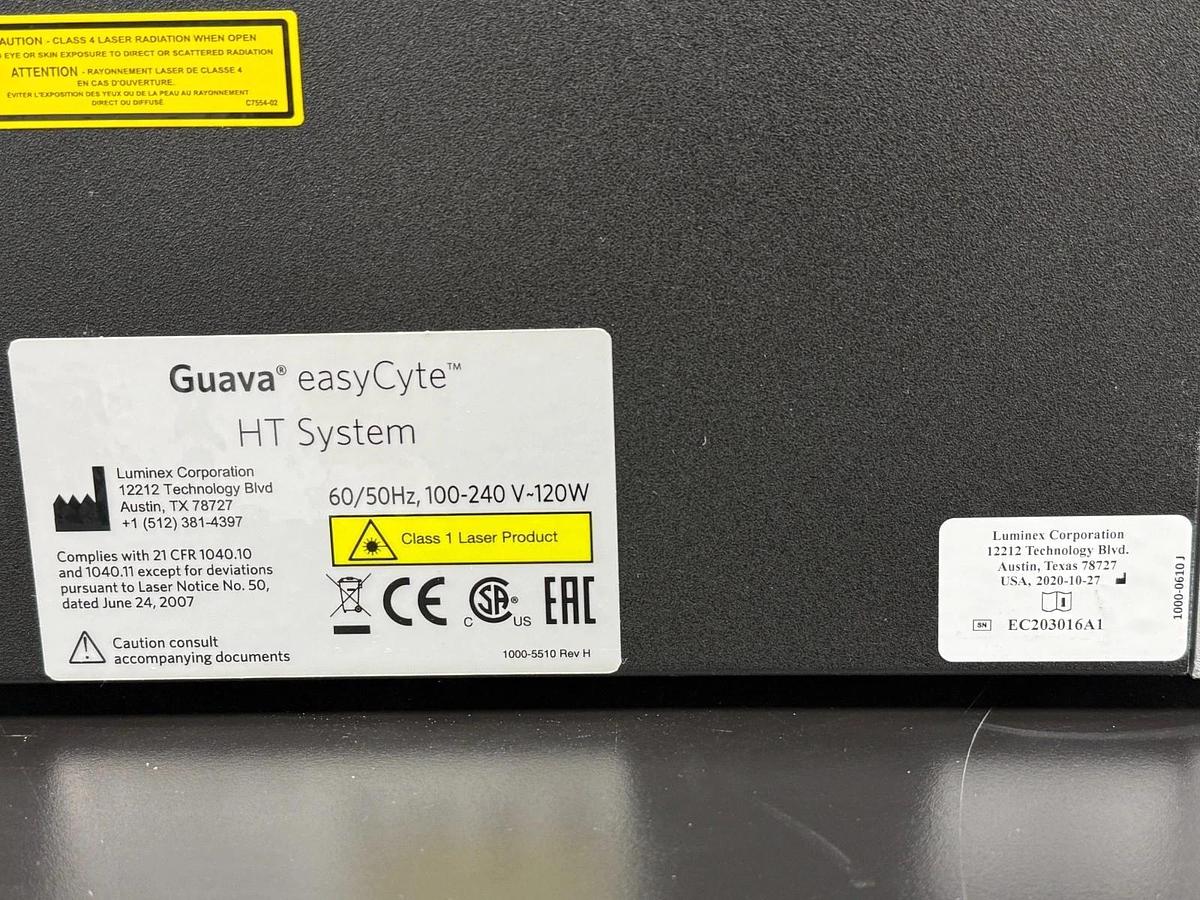

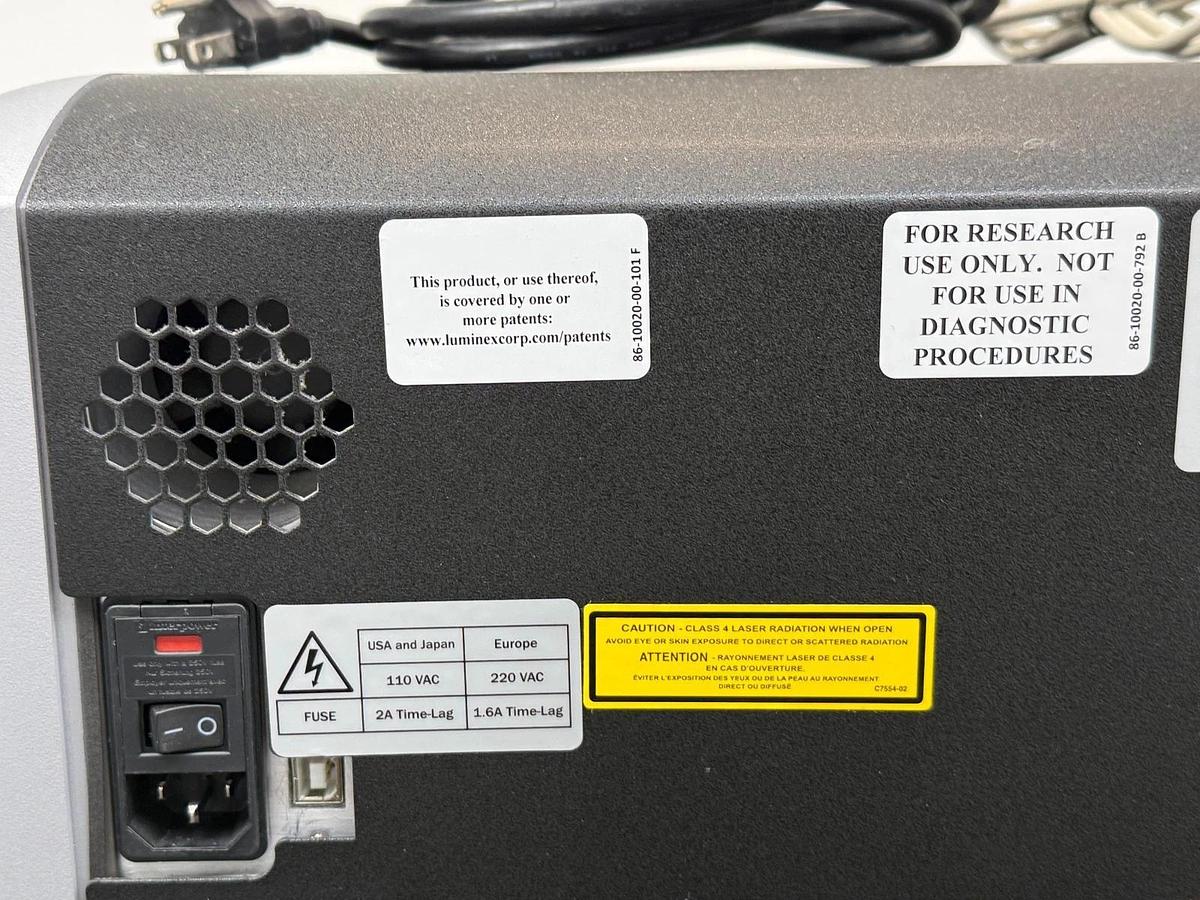

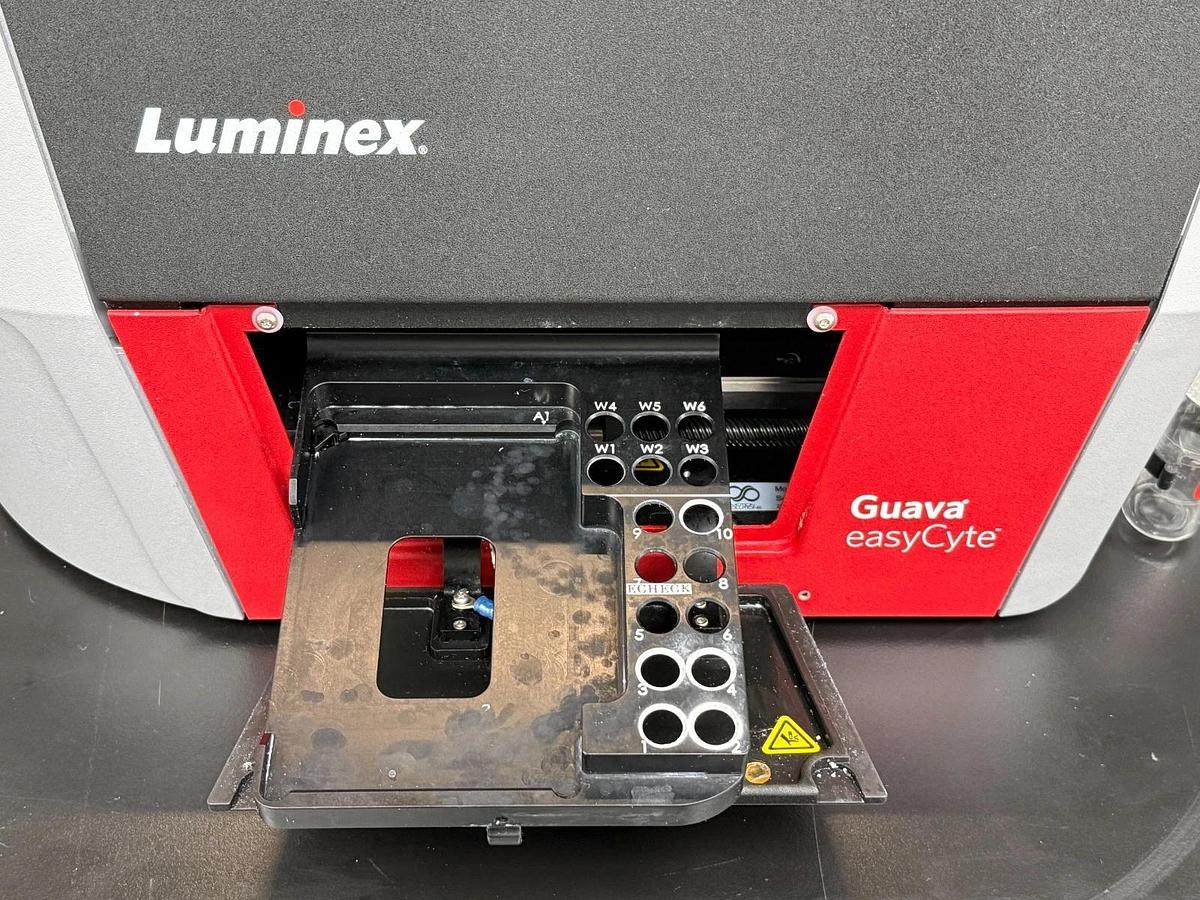

BioLabTek eBay Template MEASURING & ANALYSIS: Photometers Luminex Guava easyCyte 5HT Flow Cytometer Benchtop 96-Well Microcapillary Benchtop microcapillary flow cytometer with a 488 nm laser and five detection channels that runs tubes or 96-well plates and reports absolute cell counts without reference beads. QC PASS Tested & Working At a glance Manufacturer Luminex Corporation Model Guava easyCyte 5HT (HT System) Part / Catalog # 0500-4005 Serial # EC203016A1 Year / DOM 2020-10-27 Condition Lightly Used, Excellent What's Included Luminex Guava easyCyte 5HT Flow Cytometer, HT System Power cord USB cable Nothing else is included unless shown in the photos Condition & Testing Unit powers on and the sample tray loads and ejects normally; the tray deck and tube nest show dried residue and water spotting from prior use as pictured; calibration verification with Guava easyCheck beads is the responsibility of the buyer. Specifications Instrument type Benchtop microcapillary flow cytometer, high-throughput (HT) configuration Detection channels 5 (FSC, SSC, and 3 fluorescence) Excitation laser Blue 488 nm, 50 mW Fluorescence channels Green-B 525/30 nm, Yellow-B 583/26 nm, Red-B 695/50 nm Light scatter detection Forward 0 deg (+/-9 deg), Side 90 deg (+/-30 deg), SSC filter 488/16 nm Dynamic range 5 decades Particle size range 0.2 to 60 um Acquisition speed 10 to 1,000 events per second Flow rate 7 to 70 uL/min Fluidics Microcapillary with positive displacement syringe pump Sheath fluid None required Waste generation 50 mL over 8 hours of continuous use Absolute cell counting Yes, without reference beads Fluorescence precision <4% CV for CEN Sample formats 0.5 mL tubes, 1.5 mL tubes, 96-well plate Minimum sample volume 150 uL (0.5 mL tube), 900 uL (1.5 mL tube), 100 uL (96-well plate) Automation Motorized tray for plates and tubes with on-board mixing, walkaway acquisition up to 96 samples Signal processing Digital Data interface USB Type B Laser classification Class 1 laser product Power input 100-240 V~, 50/60 Hz, 120 W Fuse rating 2 A time-lag at 110 VAC, 1.6 A time-lag at 220 VAC Operating conditions 16 to 30 C, up to 80% humidity Dimensions (W x D x H) 10 x 20 x 24 in (25 x 51 x 61 cm) Weight 70 lb (31.8 kg) Specs from manufacturer literature for reference. Verify against your application. Terms & Conditions Payment We accept most payment types and work with your organization's accounting requirements. Contact us if you need a formal quote or to procure with a PO. Shipping Items ship within 1 to 2 business days after cleared payment. We ship via USPS, FedEx, UPS, or freight, to the contiguous USA and worldwide. Worldwide buyers are responsible for customs and duty import charges. Need expedited service or billing to your own FedEx or UPS account? Tell us at purchase. You may arrange your own shipping through your own carrier on request. Return Policy 60-day returns on all products from time of delivery. If anything is not right, contact us first. We want you fully satisfied. Why BioLabTek We power on and function-test, then document what we saw Photos show the exact unit you receive Instruments packed to survive the carrier POs and formal quotes welcome for academic and corporate buyers BioLabTek |  Scientific Equipment Specialists  |  © 2026 BioLabTek
