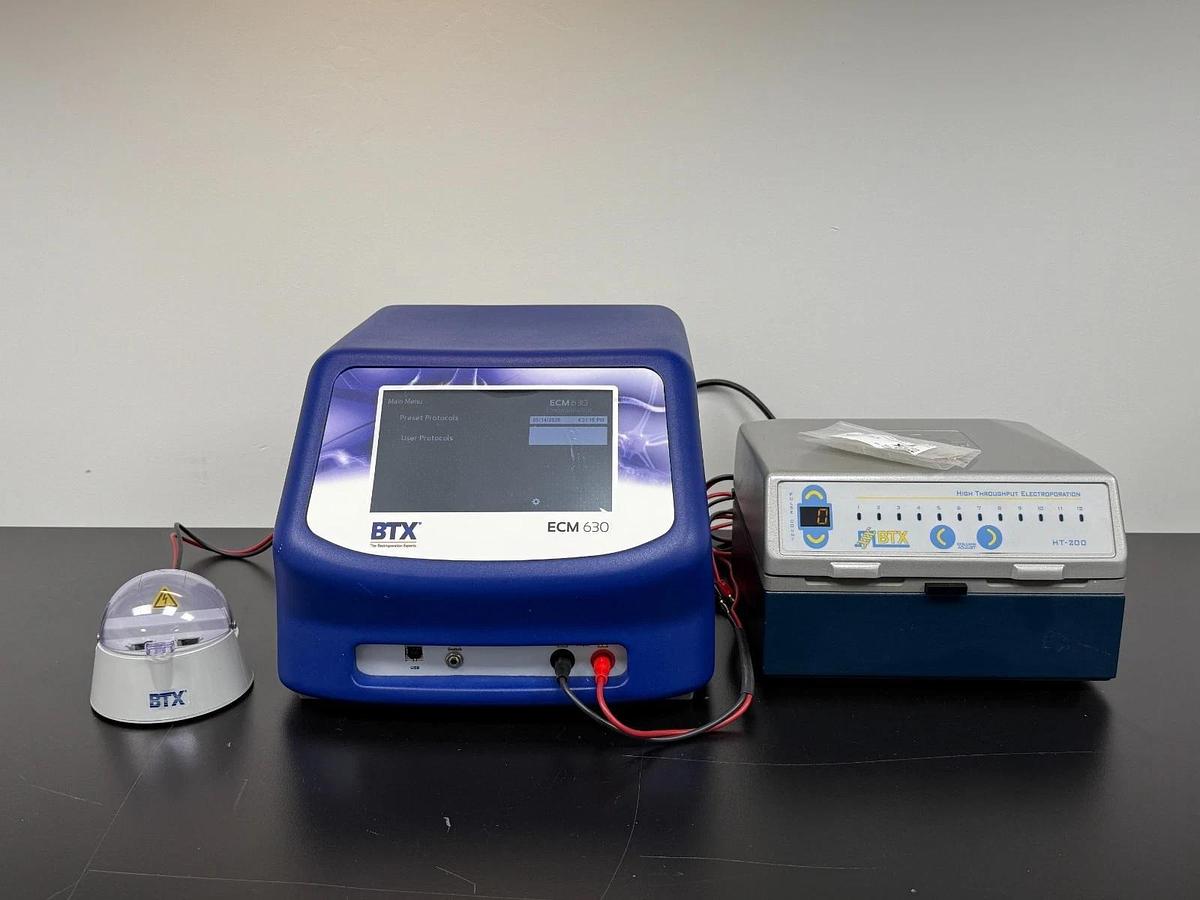

BTX ECM 630 Exponential Decay Wave Electroporation System W/ HT-200 and Dome

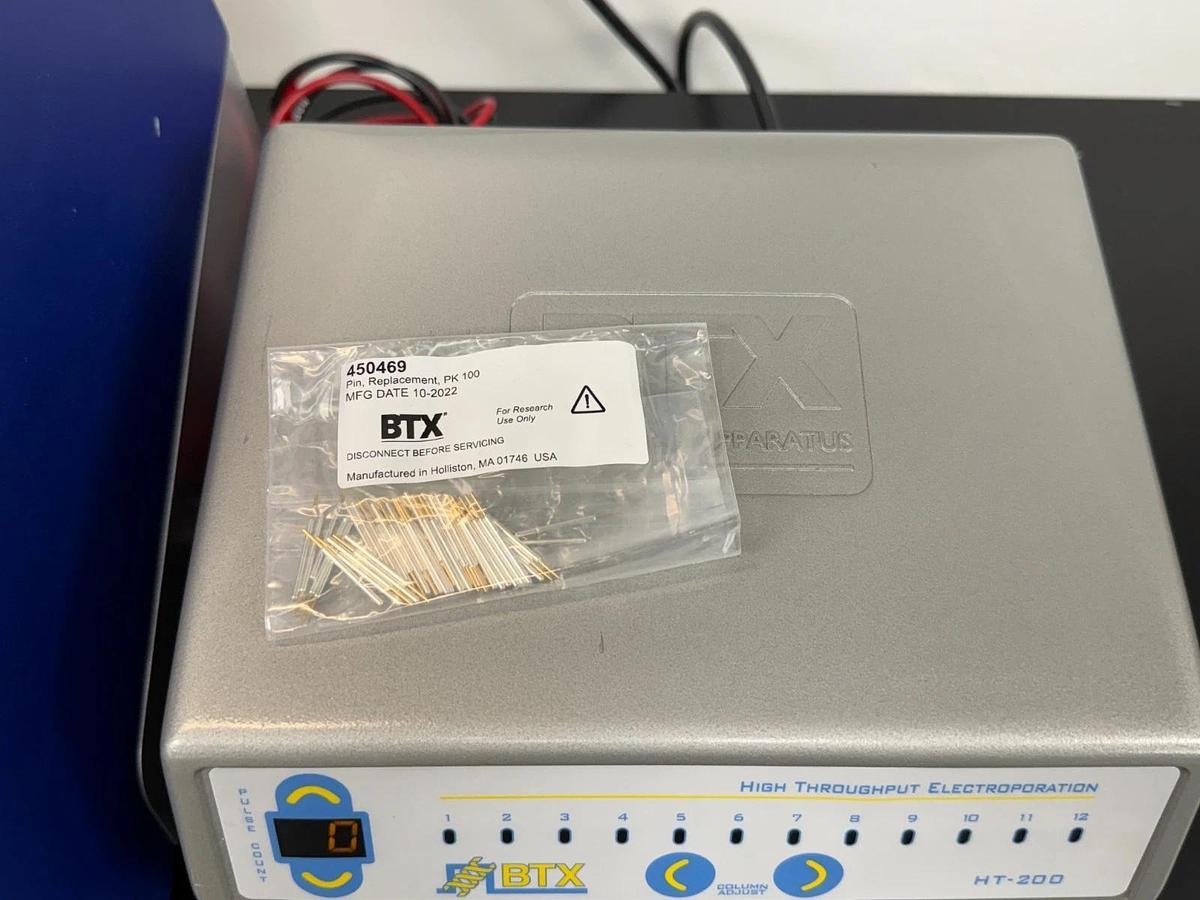

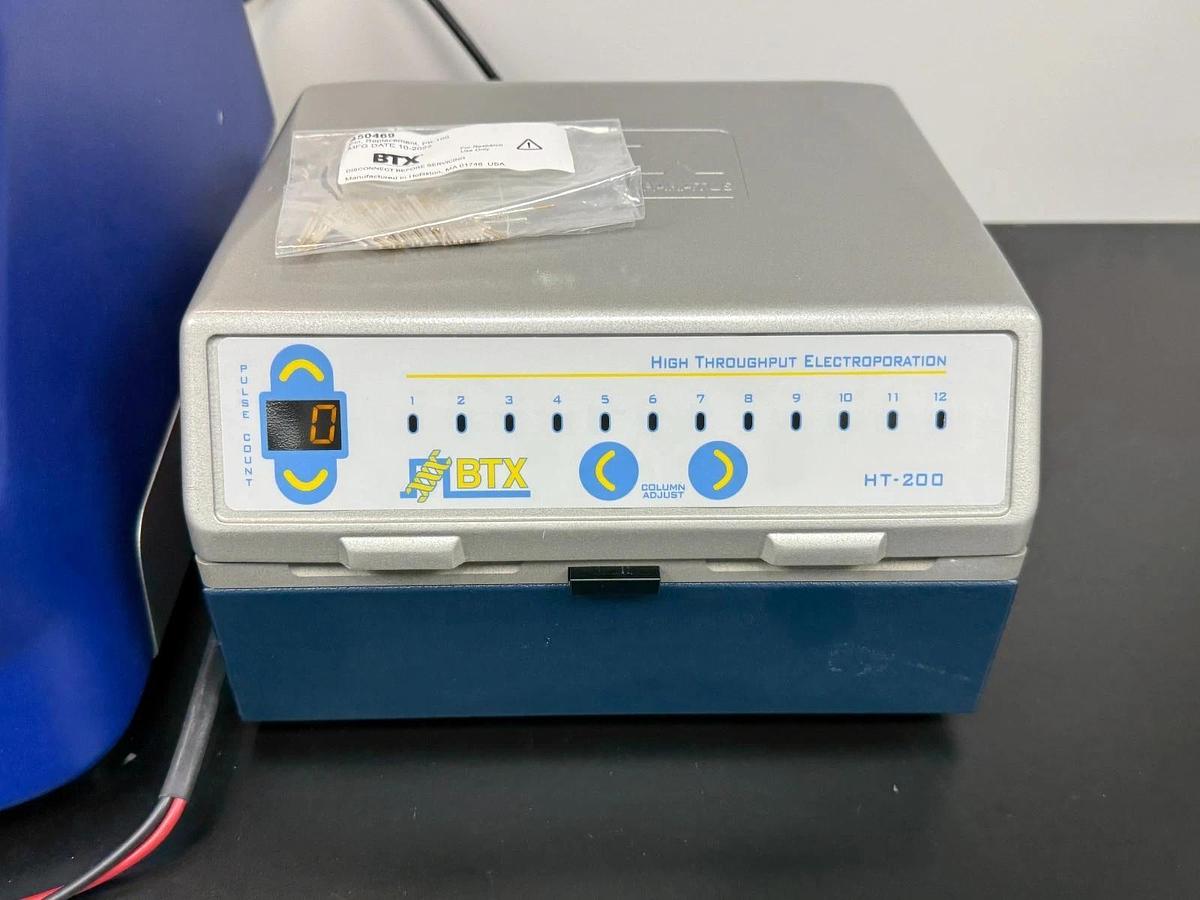

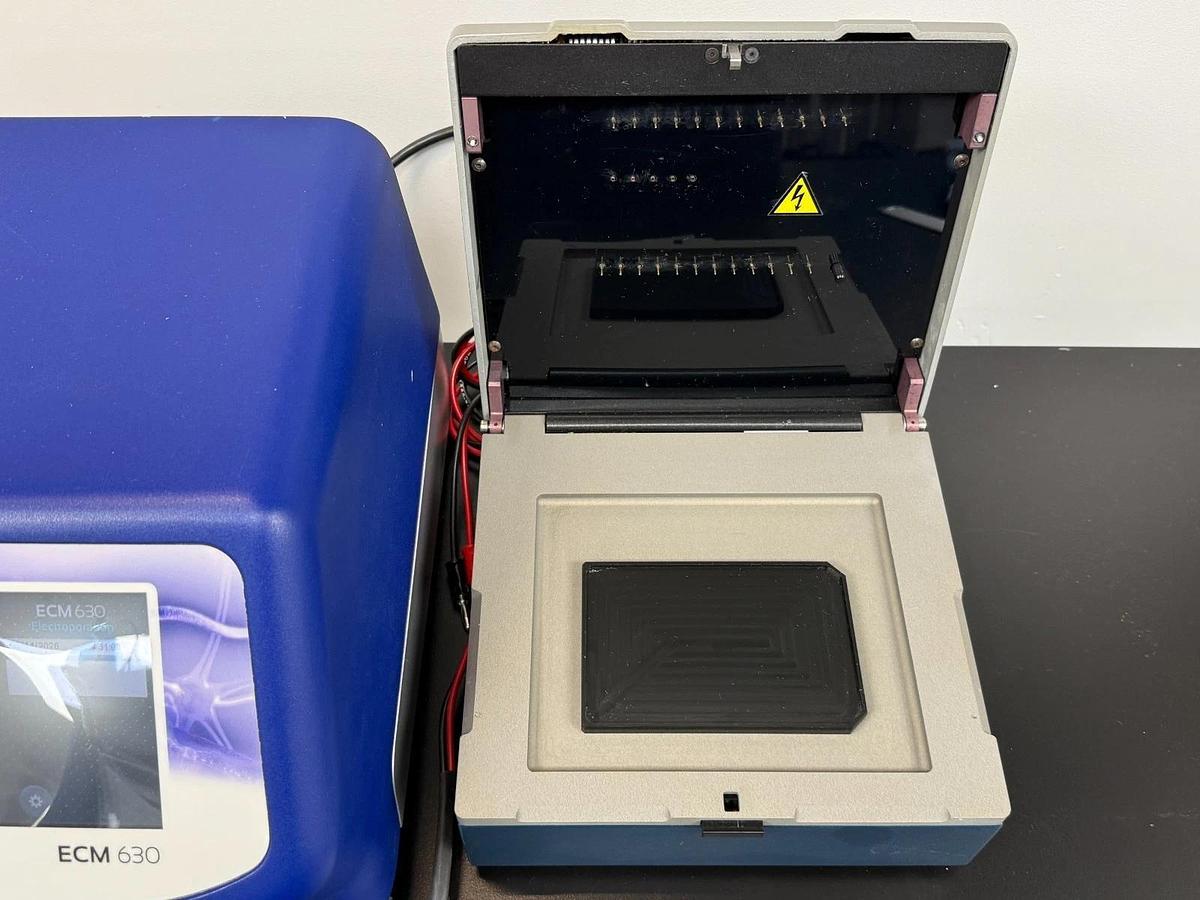

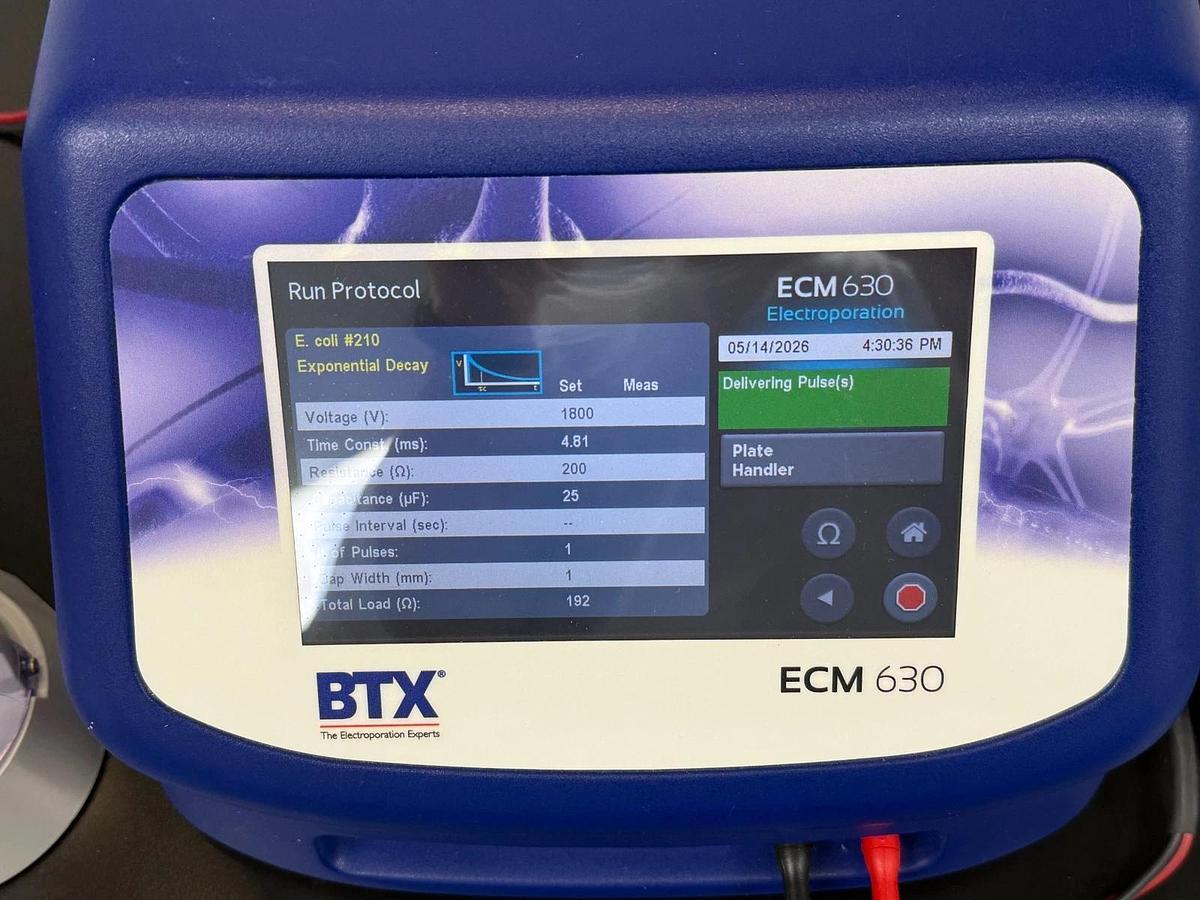

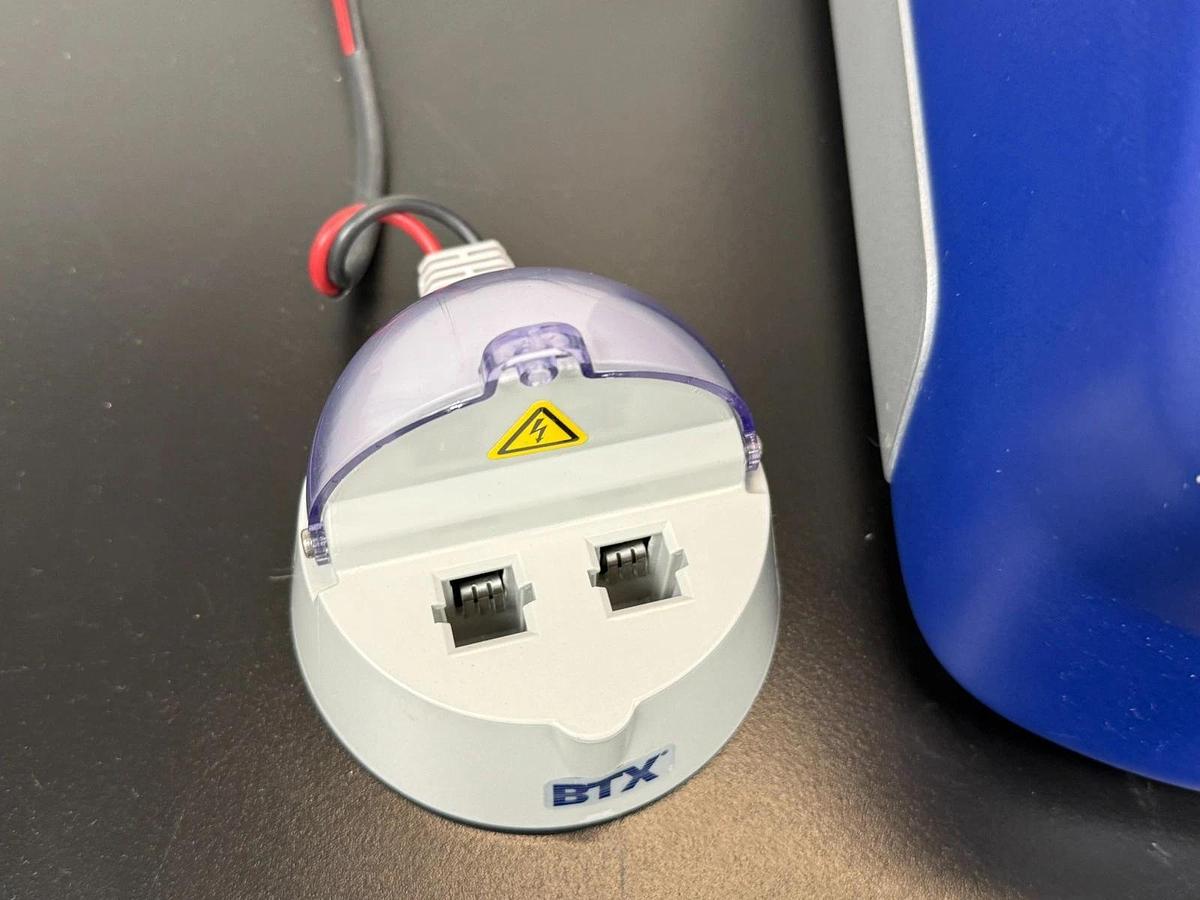

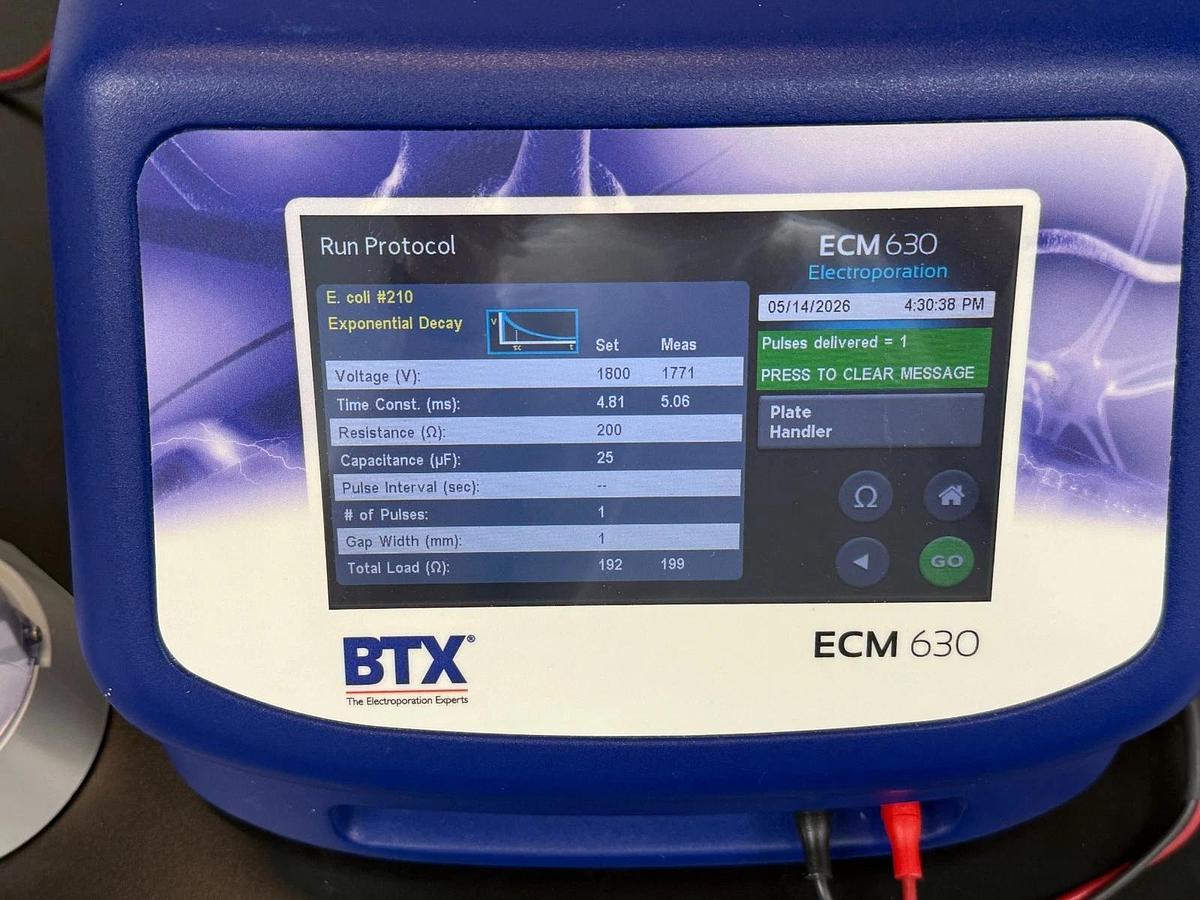

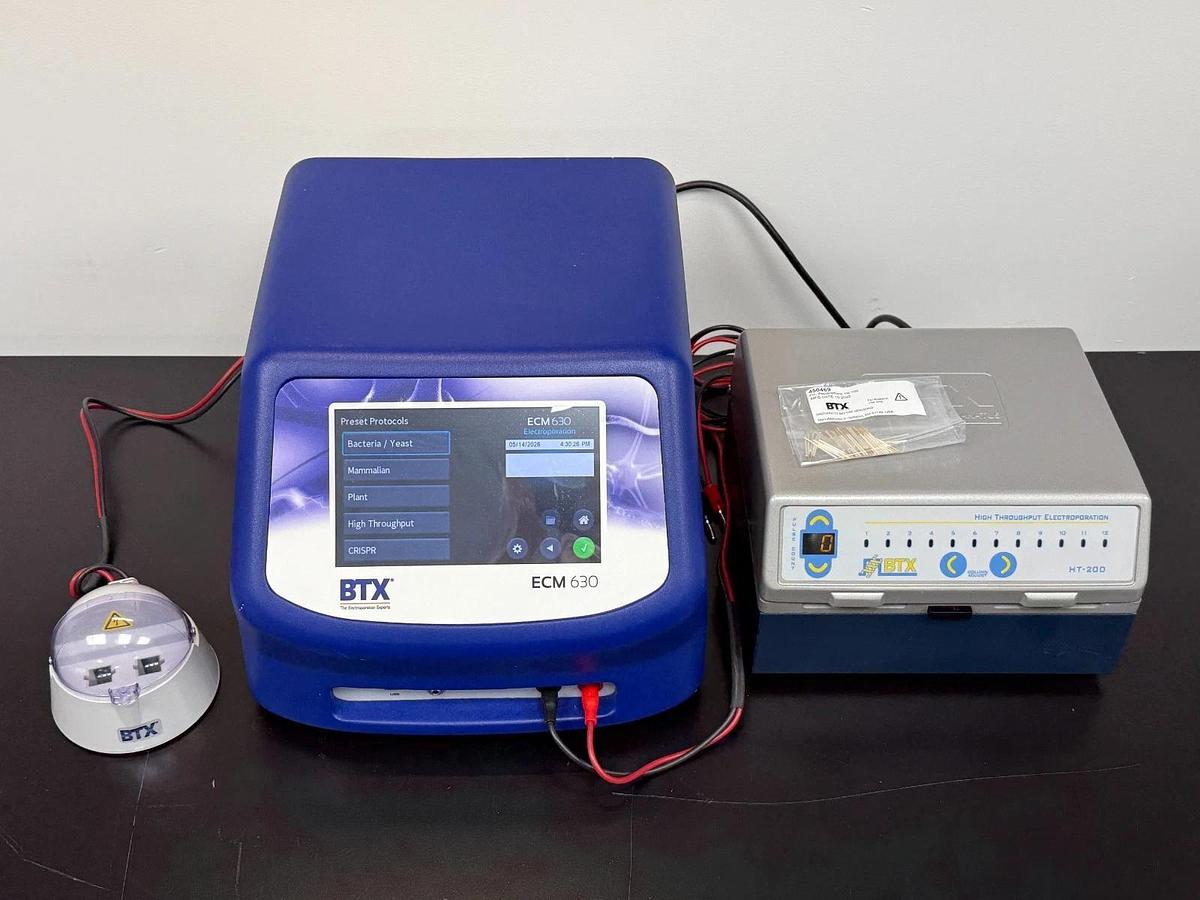

BTX ECM 630 Exponential Decay Wave Electroporation System  W/ High Throughput plate handler HT-200 and Safety Dome Includes the following: - ECM 630 Exponential Decay Wave Electroporation System - High Throughput Electroporation (HT-200) -Safety Dome for x2 Features: -Large, easy-to-use color touchscreen interface -High-throughput plate handling: processes up to 96 samples automatically with an HT-200 Plate Handler -Preset protocols for transforming the most common bacteria, yeast, and microorganisms -Create, modify, and store up to 1,000 user-defined protocols -Enhanced safety: pre-pulse sample resistance check, arc protection, and over-current pulse abort -Data management: logs the parameters of every pulse delivered and each sample resistance for QC and troubleshooting -Voltage range: 5 V to 3,000 V -Capacitance range: 25 µF to 3,275 µF in 25 µF steps (LV mode); 10, 25, 35, 50, 60, 75, 85 µF (HV mode) -Resistance range: 25 ohm to 1,575 ohm in 25 ohm steps Specs BTX ECM 630 GENERATOR Manufacturer BTX (Harvard Bioscience) Model ECM 630 Electroporation System Display / Interface 7 inch color touchscreen Power Source 100 to 240 VAC, 50 to 60 Hz, CAT II (universal input) Power Consumption 350 W (pulsing), 35 W (idle) Fusing Type 3AG, 5 A, 250 V, 1/4 x 1 1/4 in, Type T (time delay) Voltage Range LV mode: 5 to 500 V in 1 V steps; HV mode: 505 to 3,000 V in 5 V steps Capacitance Range LV mode: 25 µF to 3,275 µF in 25 µF steps; HV mode: 10, 25, 35, 50, 60, 75, 85 µF Resistance Range LV mode: 25 to 1,575 ohm in 25 ohm steps; HV mode: 50 to 1,575 ohm in 25 ohm steps Charge Time LV < 7 s, HV < 4 s Arc Control Yes Programmability Storage of over 1,000 protocols Data Management Experimental log of pulse parameters and sample resistance Operational Status Internal self-test upon start-up Controls Touchscreen, On/Off power switch Cooling Convection through metal case Operating Temperature 4 °C to 40 °C Relative Humidity 20% to 80% RH, non-condensing Footprint (W x D x H) 12.75" x 11.25" x 8.5" Weight 16.0 lb (7.3 kg) Intended Use Research use only BTX HT-200 PLATE HANDLER Manufacturer BTX (Harvard Bioscience) Model / Part No. HT-200 (450401) Type Automatic plate handler, auto-sense track switching Function Delivers generator pulse column by column, automatically, at one button press Plate Compatibility 96-well plates; includes adapter for 25-well plates Contacts Gold-plated, integrated pulse switching technology Pulse Parameters Set by the connected generator (no independent settings) Compatible Generators ECM 630, ECM 830, Gemini X2 (not for ECM 2001 / 2001+) Use Note All 8 wells of the column being pulsed must be filled to the same volume Excellent working lightly used condition. DOM year 2018 60-day return warranty Terms & Conditions PAYMENT -- We accept most payment types and will work with your organizations accounting requests. -- Contact us if you require a formal quote and to procure a PO. SHIPPING -- Items ship within 1-2 business days after payment. -- We ship with USPS FedEx UPS and DHL -- If you require expedited shipping or wish to be billed to your FedEx UPS or DHL account# please let us know upon purchase. -- We ship Worldwide. Buyer responsible for customs/duty import charges. RETURN POLICY -- We offer a 60-day return on all products unless sold as-is for parts/repair or not working. -- We strive for your positive feedback and 5 star rating, contact us if not satisfied for any reason. Thank you for looking ©2026 BioLabTek
